SEMI E134.1-0305 © SEMI 2005 22 Figure 11 InvalidPlanType 7.2.11.4.1 4 Inva lidEventRequestType — This global complexType is the XML Schema representation of the SEMI E134 Invali dEventRe quest class. The following table…

100%1 / 7923
SEMI E134.1-0305 © SEMI 2005 21

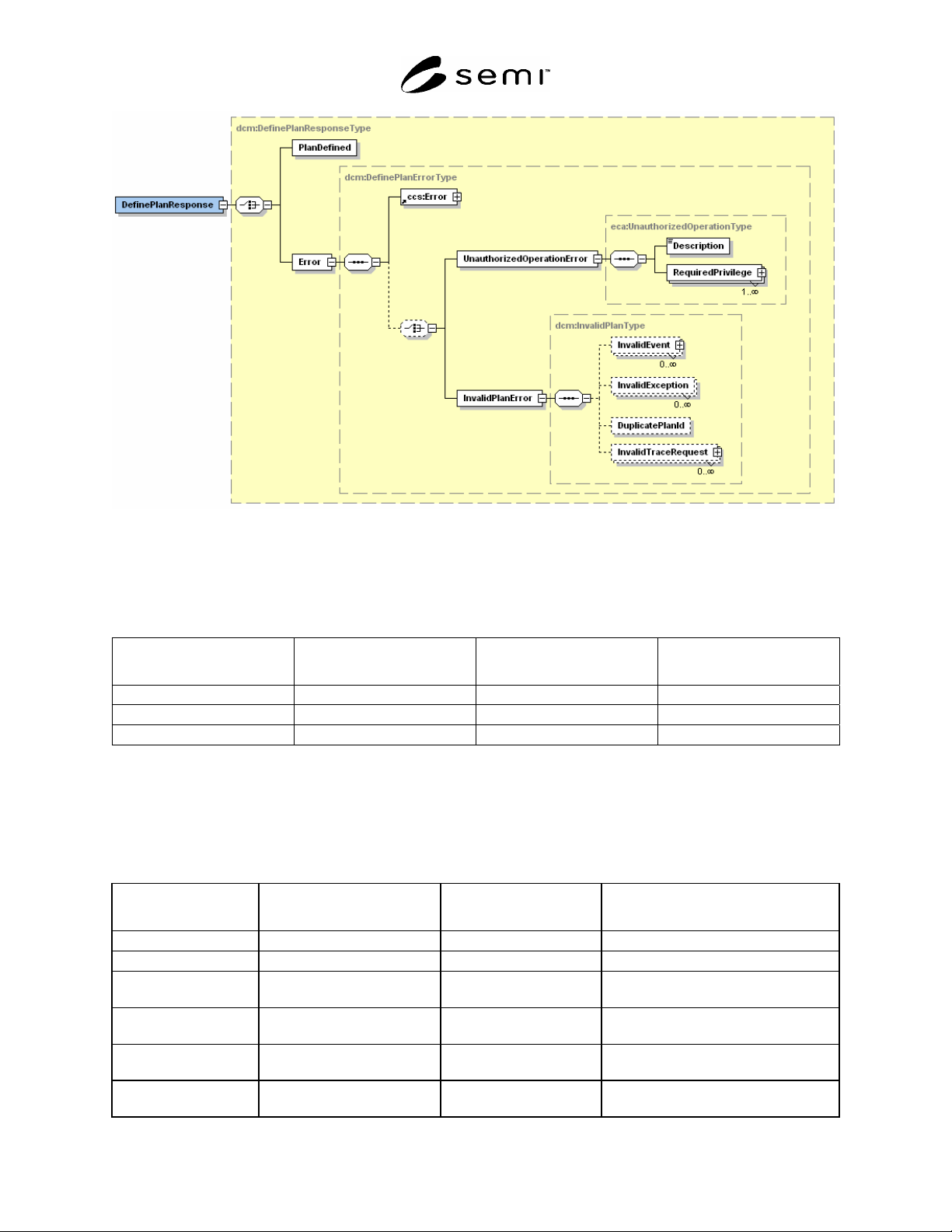

Figure 10
DefinePlanResponseType
7.2.11.4.11 DCPDefinedType — This global complexType is the XML Schema representation of the SEMI E134
DCPDefined class. The following table describes the mapping of the UML class to this XML Schema complexType
Table 28 Translation Table for DCPDefinedType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
planId Text. Attribute planId: xsd:string
timeDefined Text Attribute timeDefined: xsd:datetime
definedBy Text Attribute definedBy: xsd:string
7.2.11.4.12 UnauthorizedOperationType — UnauthorizedOperationType is defined and described in SEMI E132.1.
Please reference E132.1 for the description of the UnathorizedOperationType.
7.2.11.4.13 InvalidPlanType — This global complexType is the XML Schema representation of the SEMI E134
InvalidPlan class. The following table describes the mapping of the UML class to this XML Schema complexType.
Table 29 Translation Table for InvalidPlanType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
planId Text Attribute planId: xsd:string
description Text Attribute description: xsd:string
invalidEvents Unordered list of elements of
type InvalidEventRequest
Element InvalidEvents:
dcm:InvalidEventsRequestType
invalidExceptions Unordered list of elements of
type InvalidExceptionRequest
Element InvalidExceptions:
dcm:InvalidExceptionsRequestType
duplicatePlanId Structure, of type DCPDefined Element DuplicatePlanId: dcm:DCPDefinedType
reference ¶7.2.11.4.11
invalidTraceRequests Unordered list of elements of
type InvalidTraceRequest
Element InvalidTraceRequests:
dcm:InvalidTraceRequestsType
SEMI E134.1-0305 © SEMI 2005 22

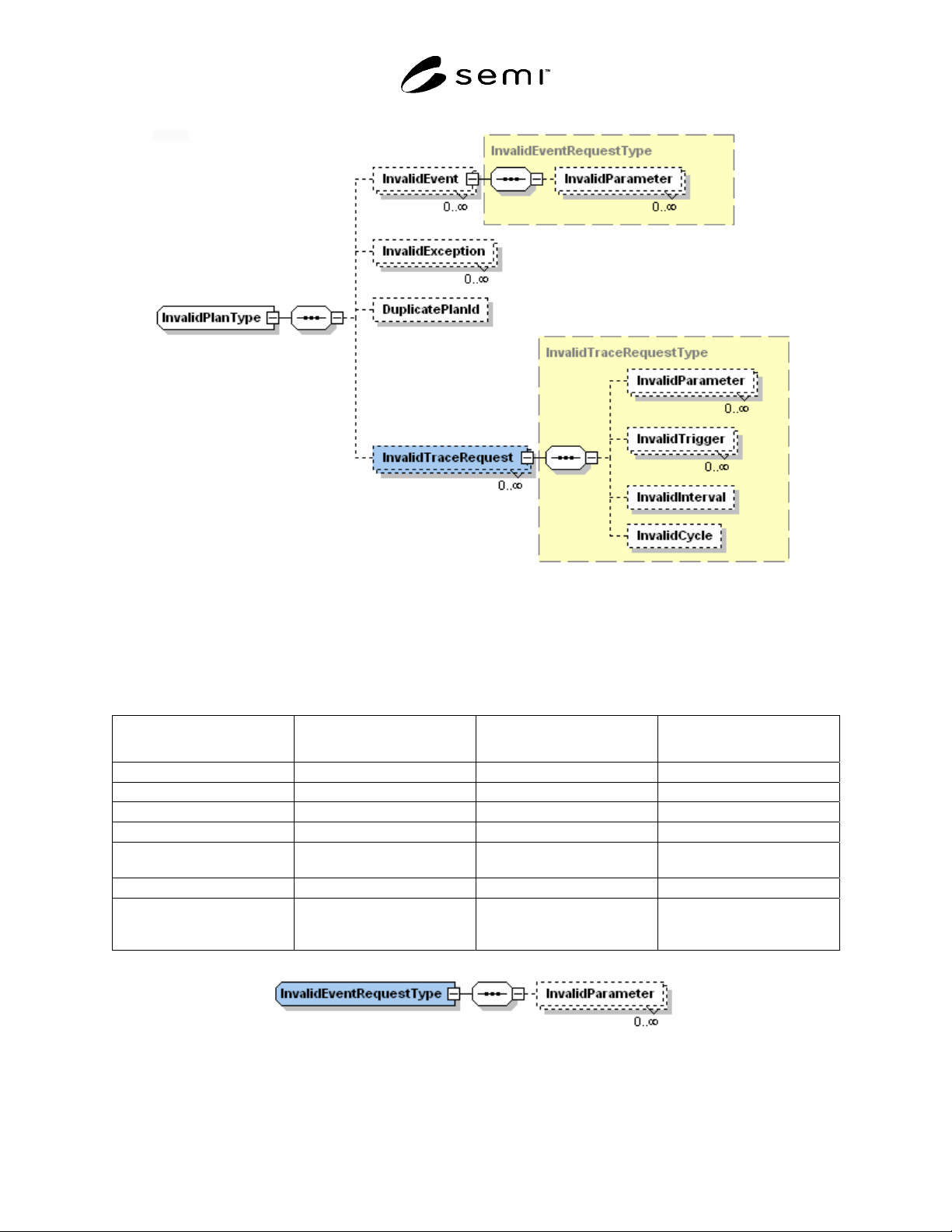

Figure 11
InvalidPlanType
7.2.11.4.14 InvalidEventRequestType — This global complexType is the XML Schema representation of the SEMI
E134 InvalidEventRequest class. The following table describes the mapping of the UML class to this XML Schema
complexType.
Table 30 Translation Table for InvalidEventRequestType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
sourceId Text Attribute sourceId: xsd:string
eventId Text Attribute eventId: xsd:string
invalidSourceId Boolean. . Attribute invalidSourceId: xsd:boolean
invalidEventId Boolean Attribute invalidEventId: xsd:boolean
notProducedBySource Boolean. Attribute notProducedBySource:
xsd:boolean
isDuplicate Boolean Attribute isDuplicate: xsd:boolean
invalidParameters Unordered list of zero or more
elements of type
InvalidParameterRequest
Element InvalidParameters:
dcm:InvalidParameterRequests
Type
Figure 12
InvalidEventRequestType
SEMI E134.1-0305 © SEMI 2005 23
7.2.11.4.15 InvalidExceptionRequestType — This global complexType is the XML Schema representation of the
E134 InvalidExceptionRequest class. The following table describes the mapping of the UML class to this XML
Schema complexType.
Table 31 Translation Table for InvalidExceptionRequestType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
sourceId Text Attribute sourceId: xsd:string
exceptionId Text Attribute exceptionId: xsd:string
severity Text Attribute severity: xsd:string
invalidSourceId Boolean Attribute invalidSourceId: xsd:boolean
invalidExceptionId Boolean Attribute invalidExceptionId: xsd:boolean
invalidSeverity Boolean Attribute invalidSeverity: xsd:boolean
notProducedBySource Boolean Attribute notProducedBySource: xsd:boolean
isDuplicate Boolean Attribute isDuplicate: xsd:boolean
7.2.11.4.16 InvalidParameterRequestType — This global complexType is the XML Schema representation of the
E134 InvalidParameterRequest class. The following table describes the mapping of the UML class to this XML
Schema complexType.
Table 32 Translation Table for InvalidParameterRequestType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
sourceId Text Attribute sourceId: xsd:string
parameterName Text Attribute parameterName: xsd:string
invalidSourceId Boolean Attribute invalidSourceId: xsd:boolean
invalidParameterName Boolean Attribute invalidParameterName: xsd:boolean
notProducedBySource Boolean Attribute notProducedBySource: xsd:boolean
invalidContext Boolean Attribute invalidContext: xsd:boolean
7.2.11.4.17 InvalidTraceRequestType — This global complexType is the XML Schema representation of the SEMI
E134 InvalidTraceRequest class. The following table describes the mapping of the UML class to this XML Schema
complexType.
Table 33 Translation Table for InvalidTraceRequestType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
traceId Integer Attribute traceId: xsd:int
duplicateId Boolean Attribute duplicateId: xsd:boolean
invalidParameters Unordered list of zero or more
elements of type
InvalidParameterRequest
Element InvalidParameters:
dcm:InvalidParameterRequestsT
ype
invalidTriggers Unordered list of zero or more
elements of type InvalidTrigger
Element InvalidTriggers:
dcm:InvalidTriggersType
invalidInterval Zero or one element of type
InvalidInterval
Element InvalidInterval:
dcm:InvalidIntervalType
invalidCycle Zero or one element of type
InvalidCycle
Element InvalidCycle:
dcm:InvalidCycleType
