SEMI E84-0305 © SEMI 1999, 2005 15
3) The passive equipment turns the L_REQ signal ON if the load port is ready to perform loading operation and
turns the U_REQ signal ON if the load port is ready to perform unloading operation.
4) To request the passive equipment to start the carrier handoff operation, the active equipment turns the TR_REQ
signal ON.
5)
The passive equipment turns the READY signal ON when the passive equipment is ready for the handoff of the
carrier.
6)
After confirming the READY signal is ON, the active equipment turns the BUSY signal ON and starts the
handoff operation.
7)
The passive equipment turns the L_REQ (U_REQ) signal OFF when a carrier is placed correctly on the load
port (when the carrier on the load port is removed).
8)
After the completion of the load or unload operation and after the active equipment is clear of the handoff
conflict area, the active equipment turns the BUSY signal OFF. The active equipment must confirm L_REQ
signal (U_REQ signal) is turned OFF before the BUSY signal turn OFF.
9) The active equipment turns the TR_REQ signal OFF after the BUSY OFF.
10) The active equipment turns the COMPT signal ON to inform the passive equipment about the completion of the
handoff operation.
NOTE 3: If the passive equipment verifies the BUSY and TR_REQ signals are OFF, it should verify these signals only after the
active equipment has turned the COMPT signal ON, which signifies the active equipment has completed the handoff operation.
11) After confirming that the active equipment turned the COMPT signal ON, the passive equipment turns the
READY signal OFF.
12)
After the READY signal is turned OFF, the active equipment turns the COMPT, VALID, CS_0, and CS_1
signals OFF.
13)
The handshake with the passive equipment is closed when the VALID signal is turned OFF.
NOTE 4: If the passive equipment checks for COMPT, VALID and CS_0 or CS_1 signals, it should allow the signals to turn
OFF in any order without reporting an error.
6.2.4.2 This section defines the Single Handoff Sequence between the OHS (interbay passive type vehicle) and
Stocker. The time diagrams of the loading and unloading operations in single handoff are shown in Figures 14 and
15, respectively. The sequence shown in Figures 14 and 15 is:
1) When the passive equipment (i.e., OHS) arrives at the active equipment (i.e., STOCKER), the passive
equipment specifies to the active equipment where the handoff will take place using VS_0 and VS_1.
2) At the same time as VS_set, the passive equipment turns the L_REQ signal ON if the load port is ready to
perform a loading operation or turns the U_REQ signal ON if the load port is ready to perform an unloading
operation.
3)
The passive equipment turns the VA signal ON. It shows that the signal transition of VS_0 and VS_1, L_REQ
or U_REQ is valid.
4)
After the active equipment recognizes the VA signal, it checks the VS_0 and VS_1, L_REQ and U_REQ signal
and turns the TR_REQ signal ON to request the passive equipment to start the carrier handoff operation.
5)
The passive equipment turns the READY signal ON when the passive equipment is ready for the handoff of the
carrier.
6) After confirming the READY signal is ON, the active equipment turns the BUSY signal ON and starts the
handoff operation.
7)
The passive equipment turns the L_REQ (U_REQ) signal OFF when a carrier is placed correctly on the load
port (When the carrier on the load port is removed).
SEMI E84-0305 © SEMI 1999, 2005 16
8) After the completion of the load or unload operation and after the active equipment is clear of the handoff
conflict area, the active equipment turns the BUSY signal OFF. The active equipment must confirm L_REQ
signal (U_REQ) is turned OFF before the BUSY signal is turned OFF.
9) The active equipment turns the TR_REQ signal OFF at the BUSY OFF.
10) The active equipment turns the COMPT signal ON to inform the passive equipment about the completion of the
handoff operation.
11)
After confirming that the active equipment turned the COMPT signal ON, the passive equipment turns the
READY signal OFF.
12)
After the READY signal is turned OFF, the active equipment turns the COMPT OFF.
13) After confirming that the active equipment turned the COMPT signal OFF, the passive equipment turns the
VS_0, VS_1 and VA OFF.
14) The handshake with the passive equipment is closed when the VA signal is turned OFF.

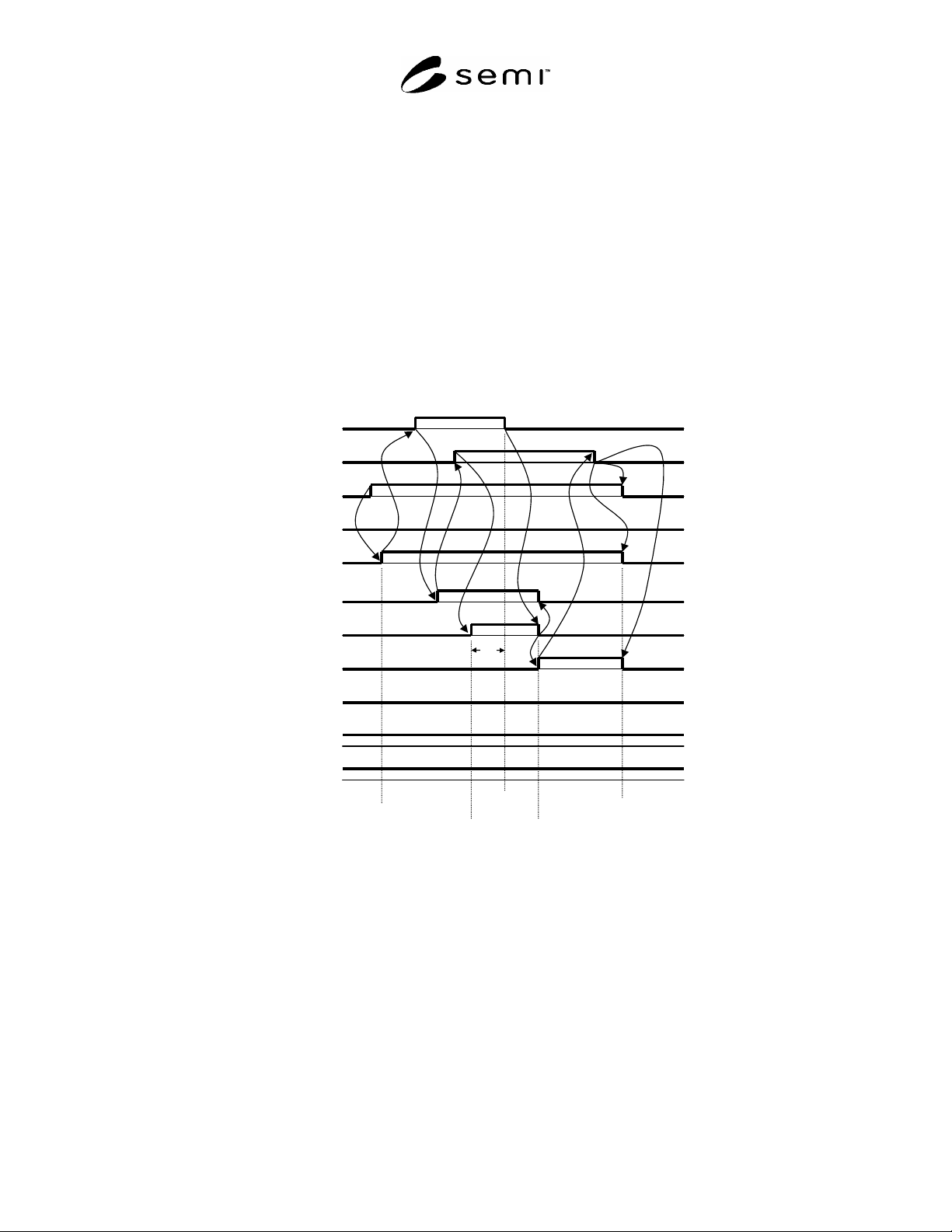

L_REQ
(P->A)
READY
(P->A)
HO_AVBL
(P->A)
ES
(P->A)
CS_0
(A->P)
CS_1
(A->P)
VALID
(A->P)
TR_REQ
(A->P)
BUSY
(A->P)
COMPT
(A->P)
CS is
Specified
Carrier is
Detected
Transfer is
Completed
Release
CS is
Specified
Transfer
Start
CONT
(A->P)
TP1
TA1
TA2
TP2
TP4
TA3
TP5
TP3
TD0
1
2
3
5
7
11
86
4
10
9
14
13
12
step numbers
are for
reference only
Figure 12
Signal Time Diagram for Single Handoff (LOAD)
SEMI E84-0305 © SEMI 1999, 2005 17
U_REQ
(P->A)
READY
(P->A)
CS_0
(A->P)
CS_1
(A->P)
VALID
(A->P)
TR_REQ
(A->P)
BUSY
(A->P)
COMPT
(A->P)
HO_AVBL
(P->A)
ES
(P->A)
CS is
Specified
Carrier is
Detected
Transfer is
Completed
Release
CS is
Specified
Transfer
Start
CONT
(A->P)
TP1
TA1
TA2
TP2
TP4
TA3
TP5
TP3
TD0
1
2
3
5
7
11
8
6
4
10
9
14
13
12
step numbers
are for
reference
only
Figure 13
Signal Time Diagram for Single Handoff (UNLOAD)
L_REQ
(P->A)
READY
(P->A)
HO_AVBL
(P->A)
ES
(P->A)
VA
(P->A)
VS_0 or 1
(P->A)
A
M_AVBL
(A->P)
TR_REQ
(A->P)
BUSY
(A->P)
COMPT
(A->P)
Vehicle
Arrival
Carrier is
Detected
Transfer is
Completed
Release
Vehicle
Transfer
Start
Vehicle
Arrival
report
Either VS_0
or VS_1
is on
TA2 TA3
TP2
TP3
TP4
1
2
3
5
7
11
8
6
4
10
9
14
13
12
step numbers
are for
reference only
Figure 14
Signal Time Diagram for Single Handoff (LOAD)
(Interbay Passive OHS only)
