SEMI C3.35-11 01 © SEMI 1988 , 2001 6 Figure 2 Column C onfiguration for th e Analysis of Methane, Acetyl ene NOTICE: T hese st andards do not pu rport to address safety issues, if any, associated with their use. It is t…
SEMI C3.35-1101 © SEMI 1988, 20015
required. This can be obtained by preparing a standard
of water balance nitrogen and mixing it with dry
hydrogen chloride using a dynamic gas blender with
mass flow controllers or calibrated flowmeters. The
hydrogen chloride gas can be dried by passing it over
activated molecular sieve (5A) or magnesium
perchlorate.
NOTE 5: This method is not applicable if other constituents
in the gas will condense before the moisture condensation,
e.g., carbon dioxide or oil.
4.7.4 Operating Procedure
4.7.4.1 Obtain a continuous flow of sample gas from
the source using a clean stainless steel sampling line
which has been purged dry after exposure to ambient
moisture.
NOTE 6: The sampling system and hygrometer must be
designed to operate under the sample pressure, or the sample
pressure must be reduced to accommodate the pressure
restrictions of the analytical hygrometer using a regulator with
a diaphragm of stainless steel or other suitable material.
4.7.4.2 After prepurging with a dry gas, allow the
sample gas to flow through the sampling system and the
condensation point hygrometer for one-quarter hour to
two hours to allow the entire system to reach
equilibrium with regards to moisture content.
4.7.4.3 After equilibrium has been reached, cool the
mirror to determine the actual condensation point of the
sample.
4.7.4.4 Continue to verify the condensation point for at
least 30 minutes after a stable reading has been
confirmed.
4.7.4.5 Correct the condensation point reading from the
measured pressure to 1 atm of pressure. The result may
not exceed the specification in Section 2 of this
standard.

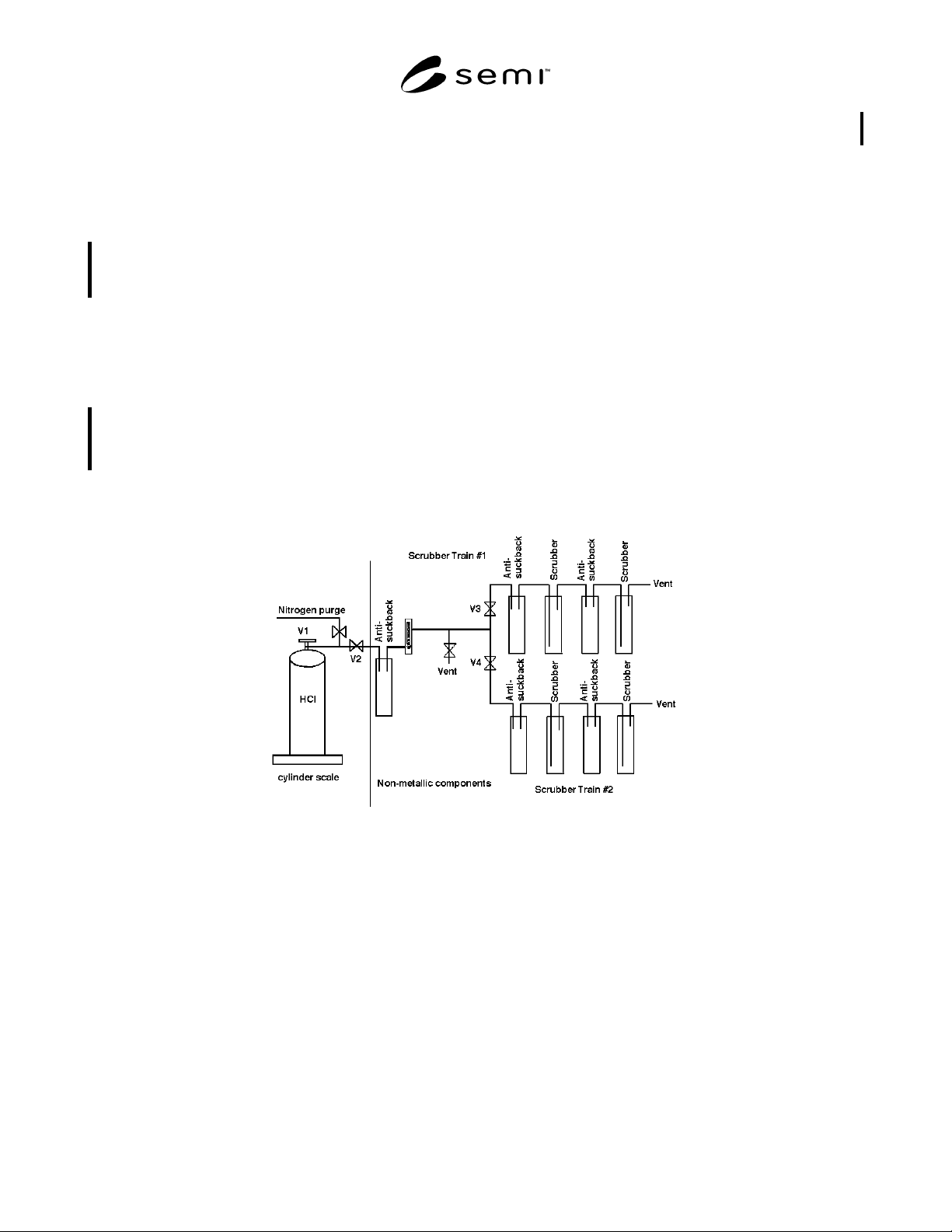

Figure 1
Metals Analysis Sampling Apparatus Vapor Phase Hydrolysis
SEMI C3.35-1101 © SEMI 1988, 2001 6

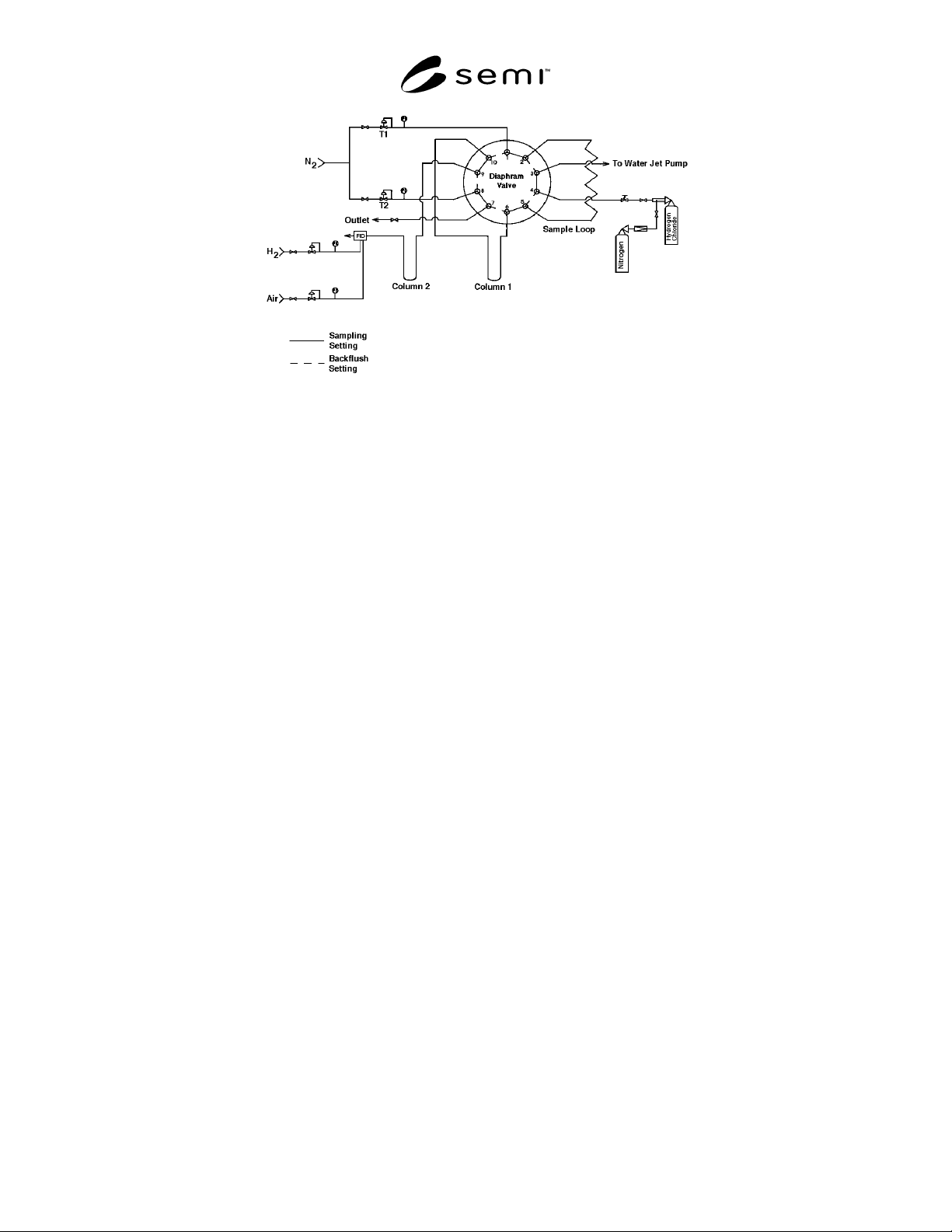

Figure 2
Column Configuration for the Analysis of Methane, Acetylene
NOTICE: These standards do not purport to address safety issues, if any, associated with their use. It is the
responsibility of the user of these standards to establish appropriate safety and health practices and determine the
applicability of regulatory limitations prior to use. SEMI makes no warranties or representations as to the suitability
of the standards set forth herein for any particular application. The determination of the suitability of the standard is
solely the responsibility of the user. Users are cautioned to refer to manufacturer’s instructions, product labels,
product data sheets, and other relevant literature respecting any materials mentioned herein. These standards are
subject to change without notice.
The user’s attention is called to the possibility that compliance with this standard may require use of copyrighted
material or of an invention covered by patent rights. By publication of this standard, SEMI takes no position
respecting the validity of any patent rights or copyrights asserted in connection with any item mentioned in this
standard. Users of this standard are expressly advised that determination of any such patent rights or copyrights, and
the risk of infringement of such rights, are entirely their own responsibility.
Copyright by SEMI® (Semiconductor Equipment and Materials
International), 3081 Zanker Road, San Jose, CA 95134. Reproduction o
f
the contents in whole or in part is forbidden without express written
consent of SEMI.
