SEMI E120-0705 © SEMI 2003, 2005 4

7 Background

7.1 This specification documents common characteristics of equipment in a single specification that can be

referenced and used by other standards. These other standards are expected to extend the Common Equipment

Model to add characteristics unique to that standard. Thus, this specification attempts to be the core of a single,

coordinated object model of the equipment with the full model being a composite of multiple standards.

7.2 Approach to Model Description

7.2.1 Class Model vs. Instance Model

7.2.1.1 A model showing the specifics about particular equipment is considered an “instance model”. Each

equipment instance model will have its own characteristics based on its function. No single model can directly

describe all such instances. Instead, the class model contained in this specification defines the classes to be used to

describe the equipment’s structure and how they shall relate to one another. The instance model of the equipment is

to be provided by the equipment supplier as specified by the CEM class model.

7.2.2 Model Extensibility

7.2.2.1 The Common Equipment Model is intended to be extensible (within defined limits). ¶6.3 describes

acceptable ways to extend the model.

7.2.2.2 The instance model of the equipment shall thus be constructed by the equipment supplier based on

 the classes defined in this document,

 extensions to this model defined in other SEMI standards, and

 extensions to the standardized model made by the supplier to address unique equipment characteristics.

7.2.3 External View — Not Equipment Design

7.2.3.1 There is no expectation that equipment suppliers will use the model specified in this document as the basis

for the design of their equipment. The CEM is intended to provide a structure to promote clear communication. It

needs to provide an unambiguous view to the factory host that is representative of the equipment and meets the

needs of the host.

7.2.4 Communication Not Defined

7.2.4.1 This specification leaves to other SEMI standards the definition of how the Common Equipment Model will

be communicated (in whole or in part) between the equipment and the factory host. It is to be expected that there

will be many uses for the model and the details of communication are best defined in context with planned use.

7.2.5 Behavior Not Defined

7.2.5.1 In order to keep the model simple, this document does not define behavior of classes in the CEM. Class

behavior is related to function, and thus to functionality supplied by the equipment interface. This functionality and

behavior is left to other SEMI standards to define.

7.2.6 Applicability

7.2.6.1 Though the CEM attempts to address all semiconductor related factory equipment, it is recognized that this

may not be possible. The CEM covers only manufacturing equipment (i.e. equipment that perform their function on

material—e.g. no independent environmental monitoring systems, etc.). The vast majority of semiconductor factory

equipment should be able to comply with this specification.

7.3 Uses For The CEM

7.3.1 In order to understand the CEM, it is necessary to understand expected uses of the model. While it is not

possible to anticipate every possible use, the following list presents several expected uses that may be defined by

other standards.

7.3.2

Equipment Self-Description Using Metadata — An important consideration for the integration of

semiconductor equipment into the factory is the ease with which the equipment’s structure and capabilities can be

understood and translated into functioning software. With traditional semiconductor communication technologies

this is achieved by first reading the equipment supplier’s communication manual and then configuring or coding

SEMI E120-0705 © SEMI 2003, 2005 5

factory software to match the documentation. Unfortunately, manuals are too often incomplete or out of date. If the

equipment can provide its instance model (and the extended class model on which it is based) to the host, it is more

likely to be complete and accurate. If it can construct that model in real-time, based on its current hardware

configuration it will be more accurate. This self-descriptive data is also known as “metadata”.

7.3.3 Relation Of Data To The Equipment — Data gathered from equipment gains greater meaning if it is clear as to

what part of the equipment it pertains and what related data items provide context information. The instance model

can be a reference in the definition of the data collection plans and reflected by actual data collected.

7.3.4 Relation Of Parameters & Setting To The Equipment — Proper and predictable control of equipment is

possible only if the effects of all available parameters and settings is understood. These must be related to the

equipment and to the measurable values that they affect. This information can be provided by the instance model.

7.3.5 Understanding Equipment Capabilities — The process capabilities of equipment depend on the modules

present and the characteristics and status of those modules. In some situations, the hardware configuration of

equipment can change on a regular basis.

8 Common Equipment Model Definition

8.1 This section documents the Common Equipment Model.

8.2 Overview

8.2.1 Documentation of the Common Equipment Model begins with system views of the model and moves to

detailed descriptions of the classes with their attributes and relationships. No behavior is defined—that is, no state

models and no methods are described for classes.

8.2.2 It is important to note that the two system views presented are of the same model. They are separated to avoid

large, complex diagrams, thus enhancing understandability.

8.2.3 The model shows only classes and their relationships. Actual equipment will have corresponding instance

models that define the detail of the equipment as viewed through an equipment interface. Thus, the Common

Equipment Model in this document provides rules for constructing the instance model of an equipment.

8.2.4 The Common Equipment Model is represented in two system level views. The first is the inheritance

hierarchy that shows which classes inherit characteristics (e.g. attributes and relationships) from which other classes.

The second view represents the relationships among classes to show general equipment structure. These views are

described in general terms to highlight important aspects of the model.

8.2.5 Everything in these two views is repeated in subsequent sections dealing with individual classes in the model.

In the individual class views, class of interest is shown with all relationships to other classes. No other detail is

shown in these views.

8.3 Inheritance Hierarchy

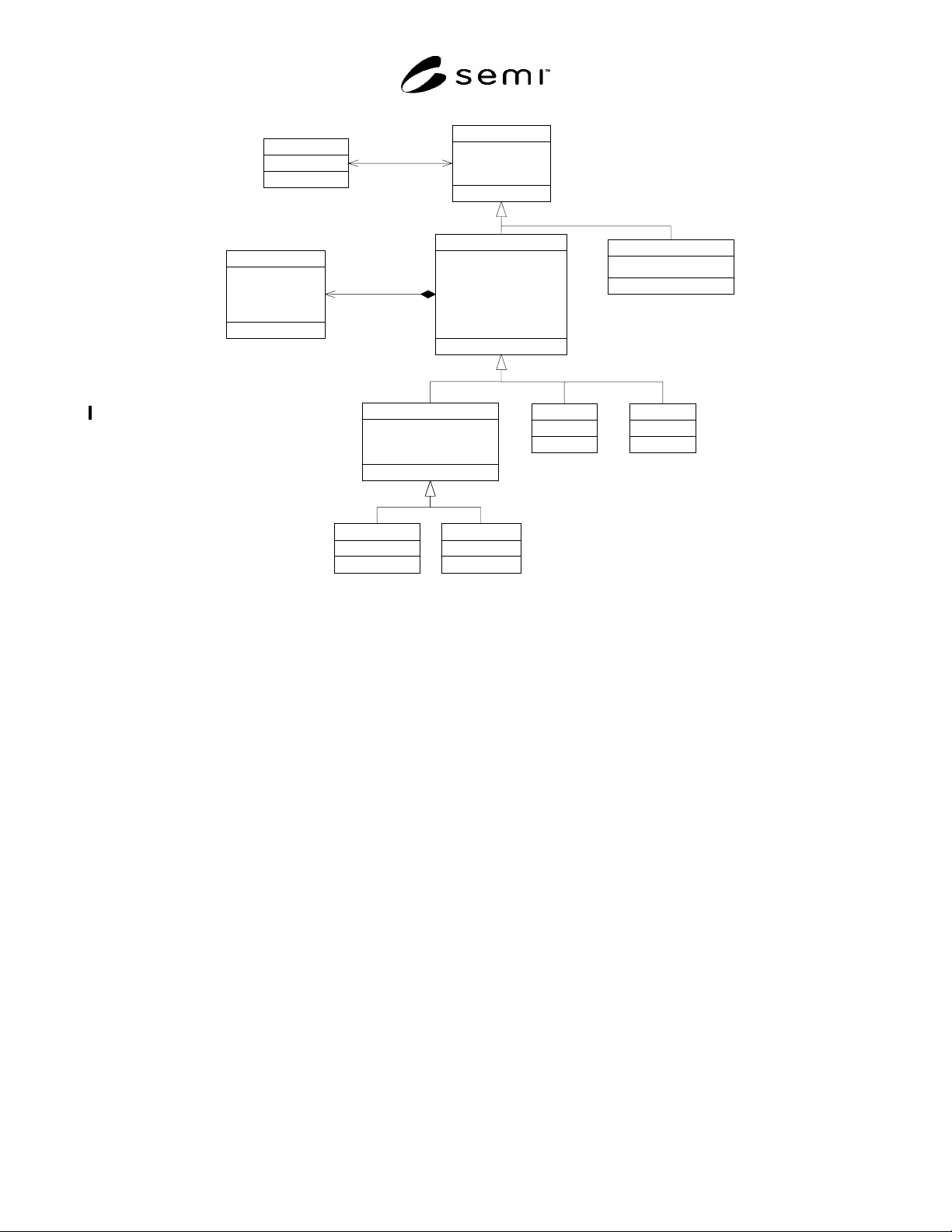

8.3.1 The inheritance hierarchy view, Figure 2, shows the superclass/subclass relationships of the Common

Equipment Model.

SEMI E120-0705 © SEMI 2003, 2005 6

ModuleEquipment

IODevice Subsystem

+elementType:string

+supplier:string

+make:string

+model:string

+modelRevision:string

+function:string

+immutableId:string

EquipmentElement

+uid:string

+name:string

+description:string

Nameable

materialType:enumeration

MaterialLocation

+processName:string

+processType:enumeration

+recipeType:string

ExecutionElement

Extension

extensions

0..*

softwareModules

target

+name:string

+supplier:string

+description:string

+version:string

SoftwareModule

Figure 2

Inheritance Hierarchy

8.3.2 Items to note about the inheritance hierarchy view:

 Nameable is at the top of the inheritance hierarchy and provides common accessibility to all classes in the

Common Equipment Model.

 Equipment and Modules may be able to process material, but Subsystems cannot.

 Note that a subclass inherits the attributes of its superclass. Some subclasses have no additional attributes

defined in this specification. It is anticipated that other standards will extend this model to add attributes,

relationships, state models, etc. as equipment behavior is mapped onto this model.

8.4 Relationship View

8.4.1 The relationship view is shown in Figure 3. This view illustrates expected equipment. Items to note about the

relationship view:

 Flexibility is built into the structure so that, for instance, IODevices may belong directly to almost any level of

the equipment structure.

 Subsystems, Modules, and Equipment may have MaterialLocations (i.e. hold material).

 Equipment — Equipment aggregation allows Equipment that acts on behalf of other Equipment to describe these

Equipment.
