SEMI E88-1104
E
© SEMI 1999, 2004 55
A-1.1.1.9
R1-3 Hardware Architecture
Factory Host
SC
1
Stocker
Unit 1
...
Stocker SEM
GEM
HSMS-SS
LAN
...
SC
N
...
Key Characteristics
• SC provides a single communication connection to Host
• One-to-many(one or more) mapping of SC’s to stocker units
• Interbay and Intrabay controls decoupled from Stocker controls
SC
Stocker Units
Stocker
Unit M
Stocker
Unit 1
Stocker
Unit M
A-1.1.1.10 Figure R1-3
A-1.1.1.11 SC Architecture (Logical View)
A-1.1.1.12
SEMI E88-1104
E
© SEMI 1999, 2004 56
R1-4 Stocker Command Scheduling Characteristics
R1-4.1 At a minimum, the SC must offer Priority-based First-In-First-Out (FIFO) queuing of TRANSFER
commands. In other words, all TRANSFER commands which have yet to be processed by the SC must be serviced
in the order in which they are received by the SC based on the priority given in the host command. The minimum
priority levels required to be available on Stocker SEM equipment are “Normal” and “High” (refer to Figure R1-4
for an example). “Normal” and “High” priorities will be denoted by U2 compatible numbers as per the definition of
the priority in the Variable Data and Remote Command sections of this document. Other options may be
implemented, but to be a Stocker SEM equipment it must at a minimum have the ability to be configured to perform
Priority-based FIFO queuing of TRANSFER commands. Additionally, the command priorities are to be utilized
during execution of the commands to the following level: any “High” priority command will cause all other
commands that are not “High” priority to be usurped. That is to say that all other commands will modify the
execution steps to allow the “High” priority commands to be completed in the minimal elapsed time possible.
Multiple “High” priority commands will act upon each other according to the same rules as “Normal” commands act
on each other.

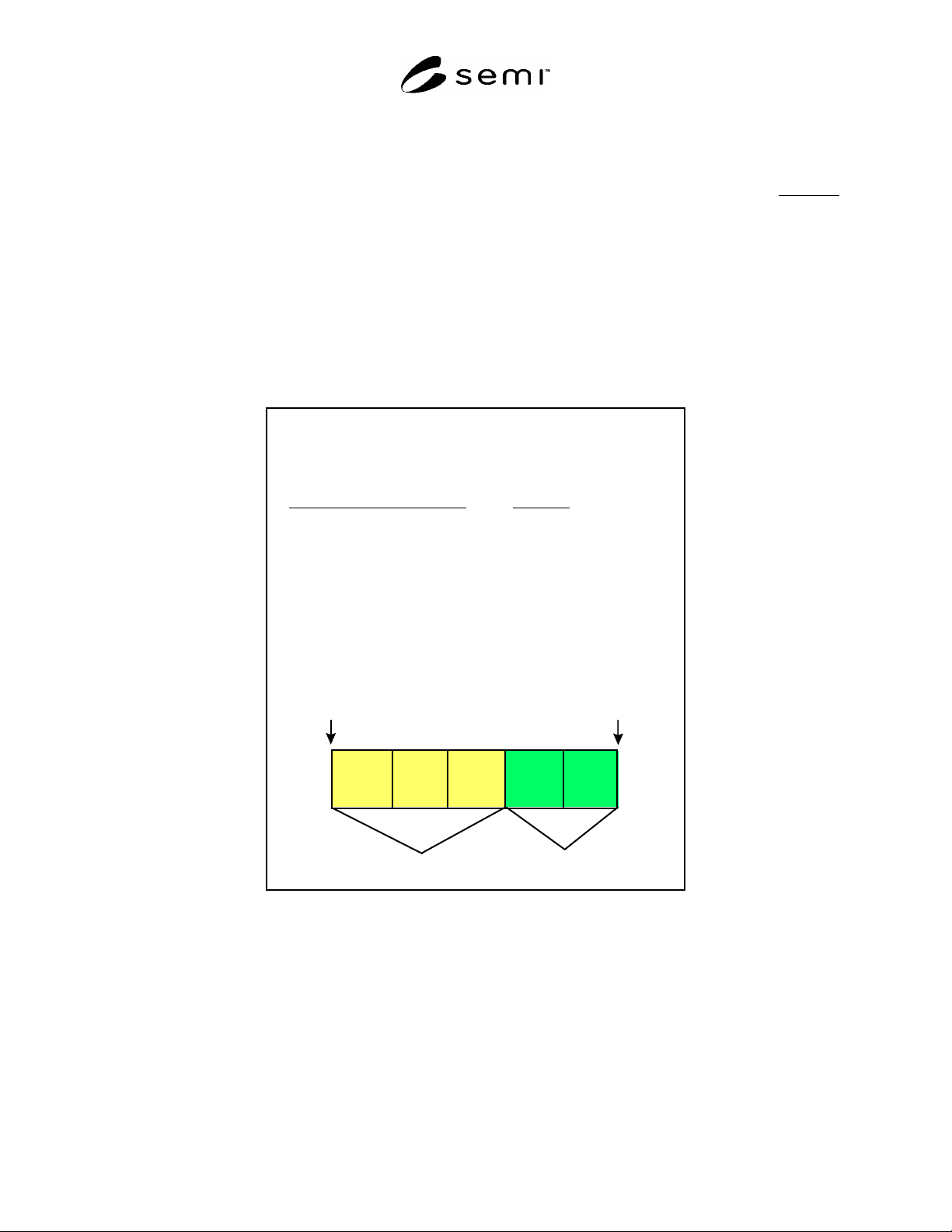

The following TRANSFER commands are
received by the SC in top to bottom order:
TRANSFER Command
Priority
1 Normal
2 Normal
3 High
4 Normal
5 High
4 2 1 5 3
head
tail
Corresponding SC processing queue
for outstanding TRANSFER commands :
Normal
High
A-1.1.1.13 Figure R1-4
A-1.1.1.14 SC Priority-Based FIFO TRANSFER Command Processing Example
A-1.1.1.15
R1-4.2 The SC must manage the resources so that TRANSFER requests are queued for later service if all resources
are currently utilized.
SEMI E88-1104
E
© SEMI 1999, 2004 57
RELATED INFORMATION 2
REQUIREMENTS FOR COMPLIANCE
NOTICE: This related information is not an official part of SEMI E88, but was approved for publication by full
letter ballot procedures.
Table R2-1 provides a checklist for Stocker SEM compliance.
R2-1 Stocker SEM Compliance Statement
Table R2-1 Stocker SEM Compliance Statement
Fundamental Stocker SEM Requirements Implemented Stocker SEM Compliant
SC State Model Yes No Yes No
Transfer Command State Model Yes No Yes No
Stocker Crane State Model (optional, see section 8.5) Yes No Yes No
Stocker Carrier State Model Yes No Yes No
Collection Event List Yes No Yes No
Collection Event Data Availability Yes No Yes No
Variable Data Items Yes No Yes No
Variable Data Availability Yes No Yes No
Alarm List Yes No Yes No
Remote Command List Yes No Yes No
Remote Command Parameters Yes No Yes No
Remote Command Mapping Yes No Yes No
Transfer Command Format Yes No Yes No
System Architecture Yes No Yes No
Stocker Command Scheduling Characteristics Yes No Yes No
NOTICE: SEMI makes no warranties or representations as to the suitability of the standards set forth herein for any
particular application. The determination of the suitability of the standard is solely the responsibility of the user.
Users are cautioned to refer to manufacturer's instructions, product labels, product data sheets, and other relevant
literature, respecting any materials or equipment mentioned herein. These standards are subject to change without
notice.
By publication of this standard, Semiconductor Equipment and Materials International (SEMI) takes no position
respecting the validity of any patent rights or copyrights asserted in connection with any items mentioned in this
standard. Users of this standard are expressly advised that determination of any such patent rights or copyrights, and
the risk of infringement of such rights are entirely their own responsibility.
