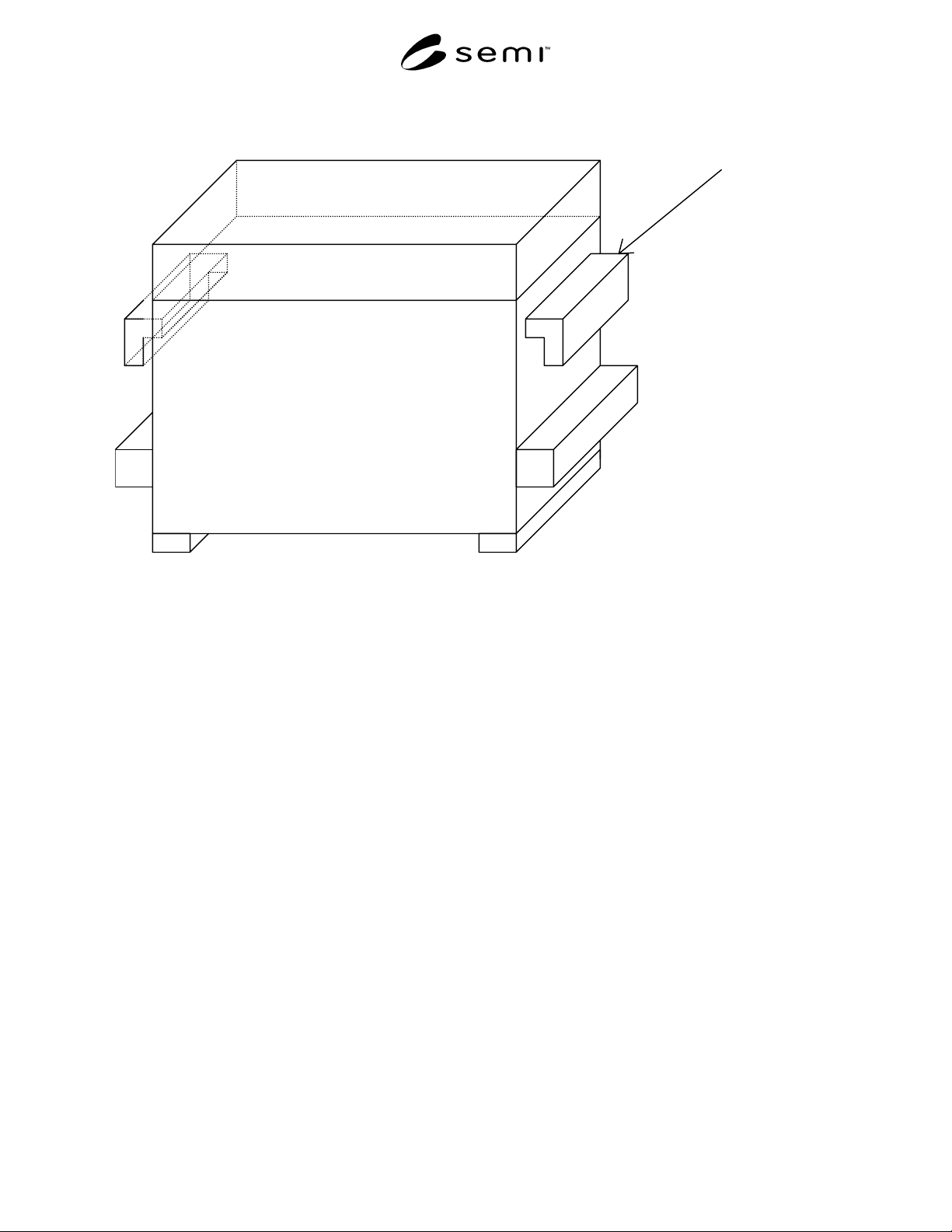

Handle
Figure 12
Packaging Handles
SEMI D25-0600
E
© SEMI 2000, 2003 13
APPENDIX 1
NOTE: The material in this appendix is an official part of SEMI D25 and was approved by full letter ballot procedures on April
21, 2000 by the Japanese Regional Standards Committee.
A1-1 Truck Platform Dimensions
NOTE: This data only applies in Japan.
Reference: JIS D4002 Internal Dimensions for Rear
Body of Motor Trucks
A1-1.1 Dimensions — The platform inner dimensions
are categorized by width and length and listed in the
table below. These dimensions shall be selected on the
basis of their feasibility with regard to the functions of
the chassis and the shape, use and special equipment of
the platform. The dimensions represent the minimum
dimensions for each category.
Table A1-1 Platform Inner Dimensions (mm)
Width Symbol A B
Cate-
gory
Ordinary Platform 2340 2120
Van Body 2370 2150
9600
9000
8400
7800
Length Category 7200
6600
6000
5400
4800
4200
7200
6600
6000
5400
4800
4200
Note 5-12 tons 4 ton wide
5-6 ton narrow
A1-1.2 Dimension Naming — Naming of the inner
dimensions of the platform is accomplished by using
the type (either Ordinary Platform or Van Body), the
symbol for the width category and the length category
in meters. Example:
Ordinary A – 8. 4
Van B
- 6. 6
Length Category
Width Category
Van Body
At present, it seems that generally 10 ton-class trucks
use A, and 4 ton trucks use B. The following
information was gathered from one transport company:
10 Ton – W=2330 L=9560 H=2280
4 Ton – W=2100 L=6700 H=2300
(Unit = mm)
Measurements may differ depending on the
manufacturer and model.
A1-2 Shipping Model
A1-2.1 The shipping model (Figure A1-15) shows the
storing of fourth generation flat panel display glass
substrates in the packing box as described in this
specification, a glass substrate manufacturer trans-
porting substrates to a user, and the user returning the
box.
A1-2.2 For covering the outside of the packing box, a
plastic bag over the top is recommended. If the
contamination of the bottom part of the box is a
concern, prevention is not limited. In any case, the goal
of this shipping model is to make it as simple as
possible and to reduce the cost and investment.
SEMI D25-0600
E
© SEMI 2000, 2003 14
Supplier clean room
Glass substrate
Packing box
Fork lift
Figure A1-1
Supplier Clean Room
PE bag
Supplier normal room
Figure A1-2
Supplier Normal Room (1)
