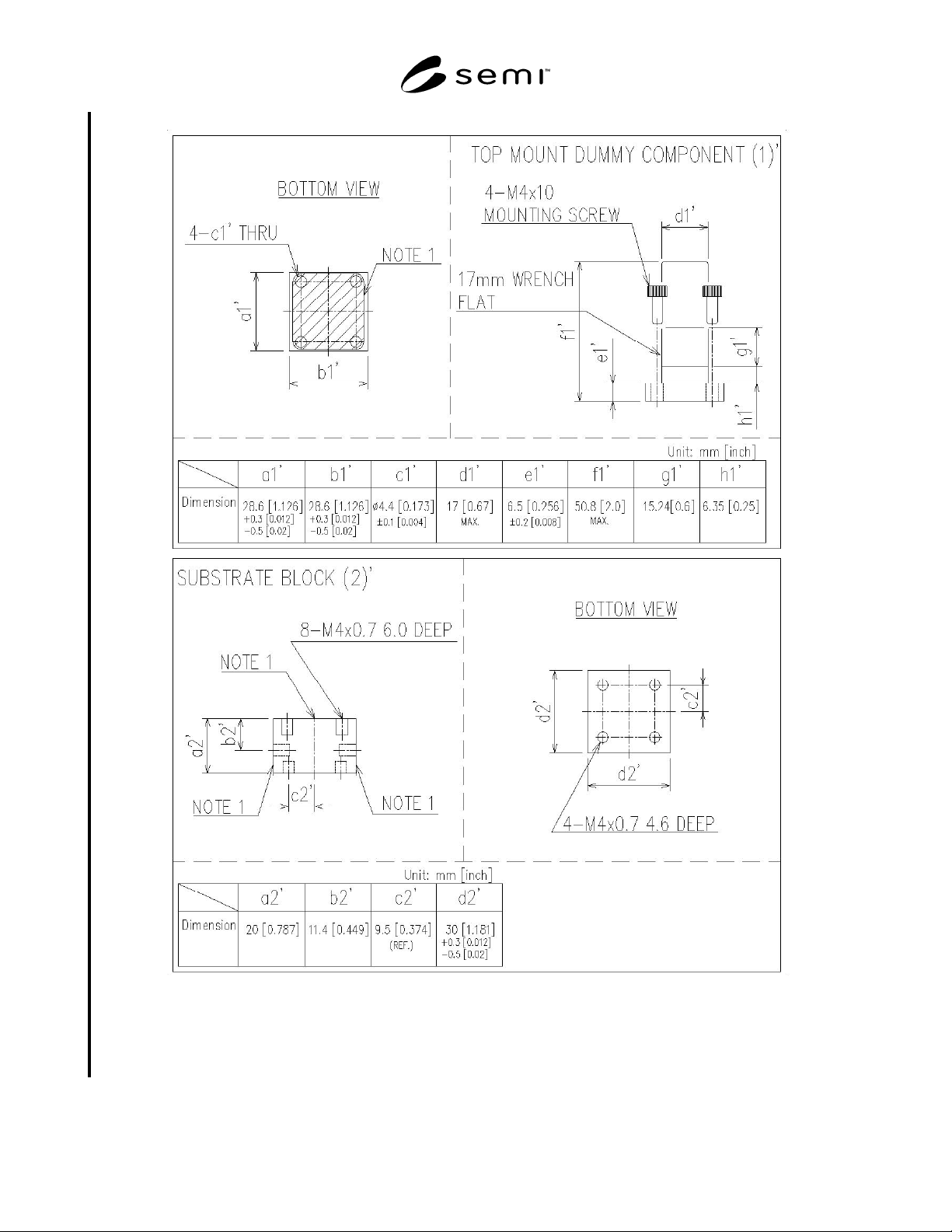

SEMI F74-1103 © SEMI 2002, 2003 12
COMPONENT VIEW; 1.125” VIBRATION/TORQUE TEST FIXTURE
NOTE 1: Leak test port(s) and porting are dependent on seal system/substrate design configuration.
NOTE 2: Material of Construction: 316SS.
NOTE 3: Drawing scale is not specified.
Figure R1-3a
1.125” Surface-Mount Performance Testing Fixture

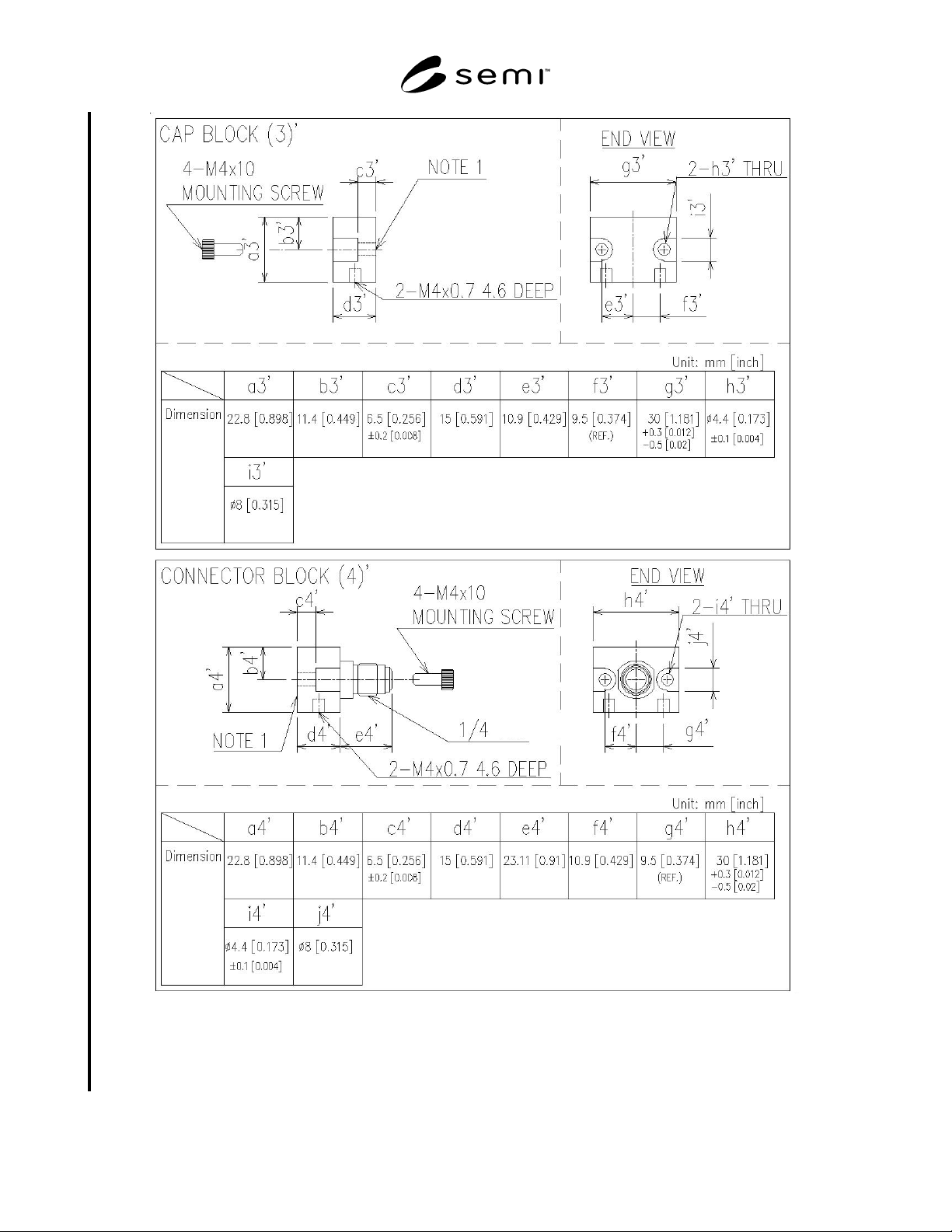

SEMI F74-1103 © SEMI 2002, 2003 13
FACE SEAL
NOTE 1: Leak test port(s) and porting are dependent on seal system/substrate design configuration.
NOTE 2: Material of Construction: 316SS.
NOTE 3: Drawing scale is not specified.
Figure R1-3b
1.125” Surface-Mount Performance Testing Fixture

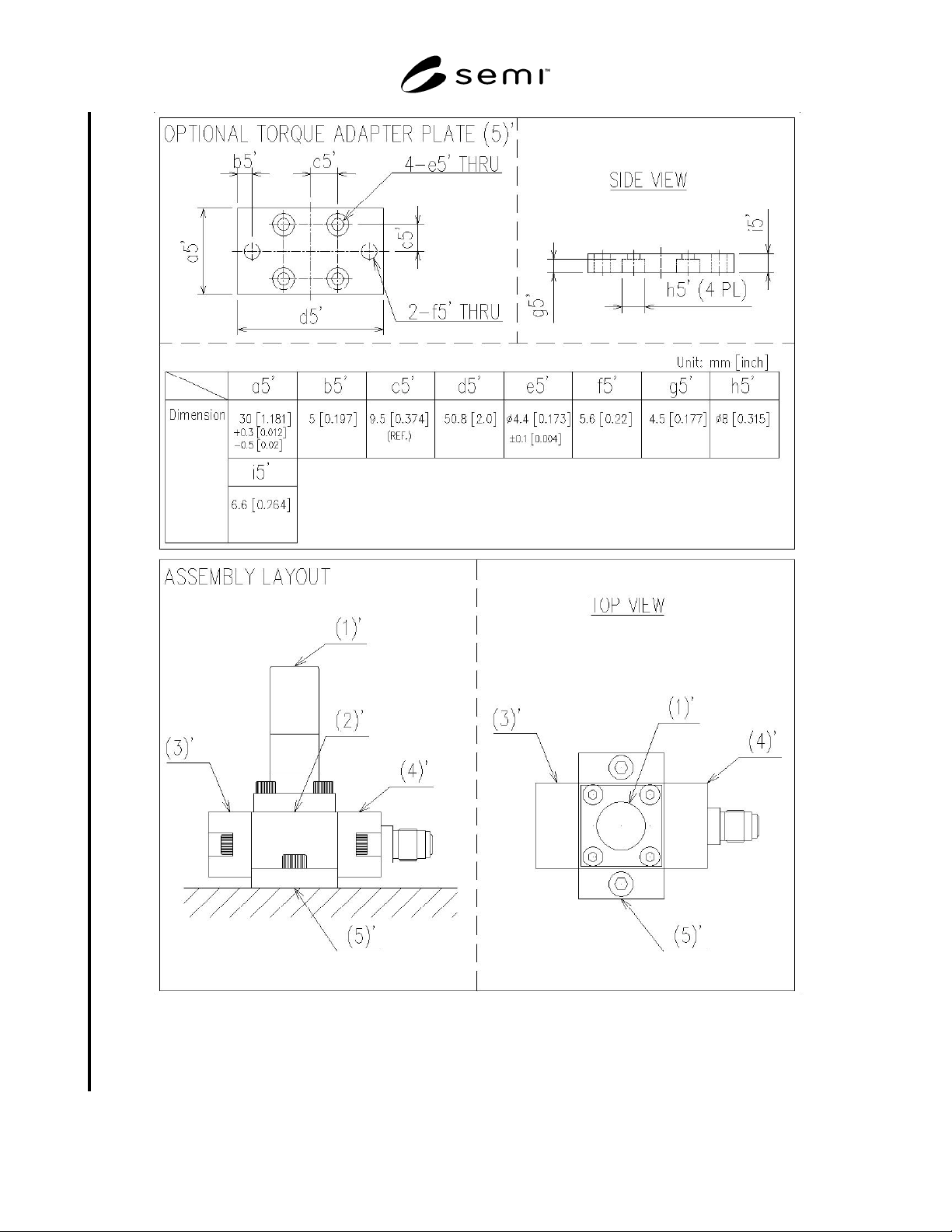

SEMI F74-1103 © SEMI 2002, 2003 14
NOTE 1: Leak test port(s) and porting are dependent on seal system/substrate design configuration.
NOTE 2: Material of Construction: 316SS.
NOTE 3: Drawing scale is not specified.
Figure R1-3c
1.125” Surface-Mount Performance Testing Fixture
