SEMI P42-0304 © SEMI 2004 5 Table 1 Reticle Frame Data Item Data type Unit the entry example Date Date Time ---- 1999-05-31T13:20+08:00 Formulation information Person string ---- HIGASHINO Use exposure machine Machine ty…
SEMI P42-0304 © SEMI 2004 4
Edge
Clearance
Shot map
Shot
Step
XY
Shot area size
X,Y
WAFER
Edge
Clearance
Shot map
Shot
Step
XY
Shot area size
X,Y
Reticle
Barcode
Reticle Mark
Wafer Mark X & positionXY
Wafer Mark Y
positionXY
Shot area size XY
Reticle Mark
Reticle
Barcode
Reticle Mark
Wafer Mark X & positionXY
Wafer Mark Y
positionXY
Shot area size XY
Reticle Mark

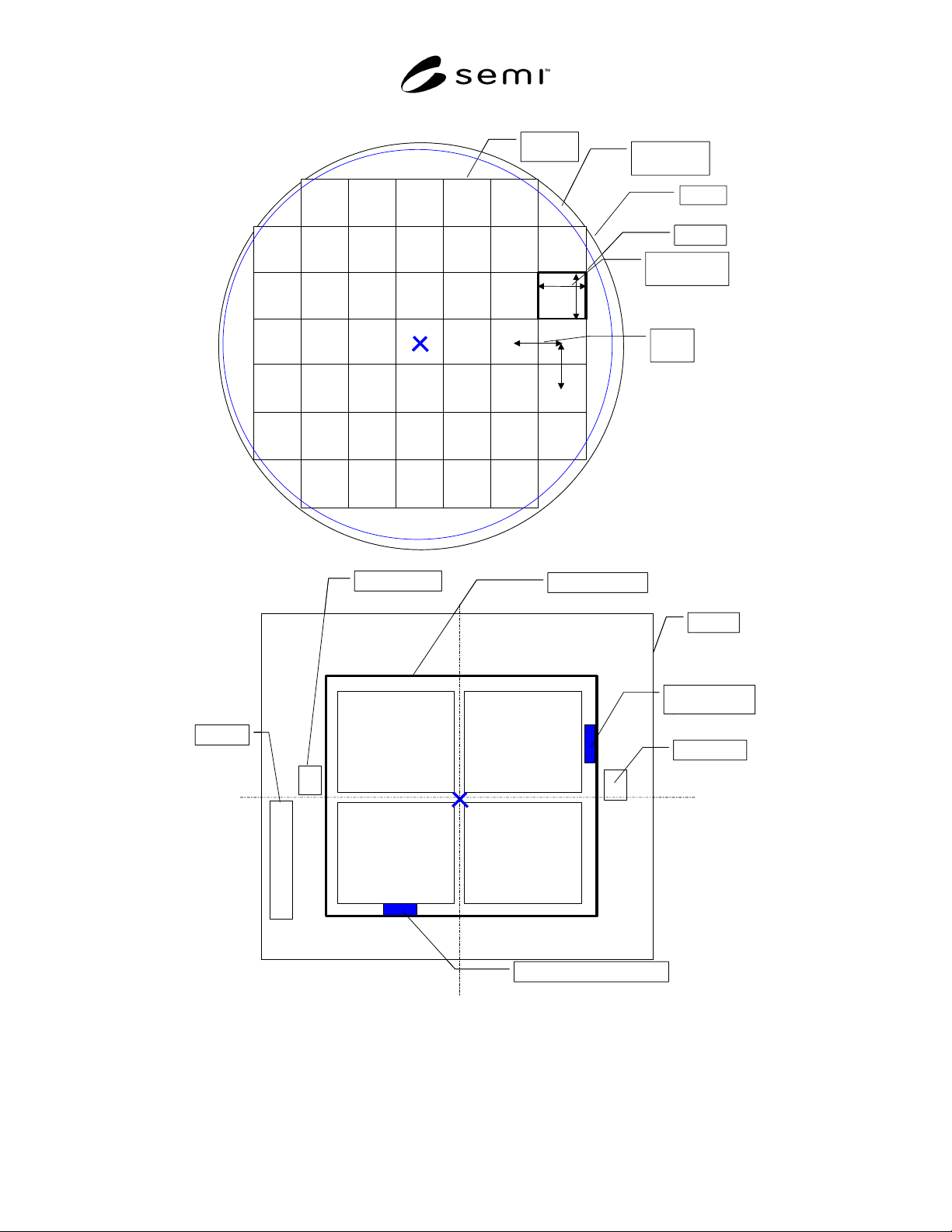

Figure 2
Explanation for Terminology
SEMI P42-0304 © SEMI 2004 5
Table 1 Reticle Frame Data
Item Data type Unit the entry example
Date Date Time ---- 1999-05-31T13:20+08:00Formulation
information
Person string ---- HIGASHINO
Use exposure
machine
Machine type information (1 – ∞) string ----
Wafer type string ---- SEMI,JEIDA,OF,notch
Size unsignedInt ---- 150,200,300,5,6,8,12 Wafer size
UnitType string mm/um/inch mm,inch
Clearance Double ---- 3.0 Edge Clearance
UnitType string mm/um/inch mm
Thickness unsignedInt ---- 725 Wafer thickness
UnitType string mm/um/inch um
Wafer
information
Wafer Rotation unsignedInt deg 0,90,180,270,xxx
X Double ---- X size
Y Double ---- Y size
Step Pitch
UnitType string mm/um/inch
C unsignedInt ---- Col Shot Map array
R unsignedInt ---- Row
X Double ---- X offset
Y Double ---- Y offset
Shot Map
information
Shot Map offset
UnitType string mm/um/inch
Shot area ID ID ---- Uniqueness ID
Reticle ID string ---- Reticle information
Reticle ID
X Double ---- X size
Y Double ---- Y size
Shot area size
UnitType string mm/um/inch
X Double ---- X shift
Y Double ---- Y shift
Shot area shift
UnitType string mm/um/inch
X Double ---- X position
Y Double ---- Y position
Shot area
information
(1 – ∞)
Shot area position
shift
UnitType string mm/um/inch
Shot ID ID ---- Uniqueness ID
Shot area ID string ---- Shot area information
Shot area ID
C unsignedInt ---- Column Shot Location
R unsignedInt ---- Row
X Double ---- X position
Y Double ---- Y position
Shot map
Shot information
(1 – ∞)
Shot position
UnitType string mm/um/inch
SEMI P42-0304 © SEMI 2004 6
Item Data type Unit the entry example
Reticle ID ID ---- Uniqueness ID
Reticle name string ----
Bar code string ---- ex. Code39
Size unsignedInt ---- 230,5,6 Reticle size
UnitType string mm/um/inch mm,inch
Reticle Type string ---- Cr,ArCr,Att.PSM,
EAPSM,….
Reticle Mark ID string ----
Reticle Mark Type string ---- STD
Reticle
design
Reticle
information
(1 – ∞)
Projection Magnification unsignedInt ---- 1,2,4,5………
Alignment Mark ID ID ---- Uniqueness ID
Group string ----
Wafer mark type string ---- P1,P2,…,F1,F2…
X Double ---- X-Mark X position X-
Mark
Y Double ---- X-Mark Y position
X Double ---- Y-Mark X position
Wafer mark
position
Y-
Mark
Y Double ---- Y-Mark Y position
UnitType string mm/um/inch
Alignment Mark
information
(0 – ∞)
Comment string ----
Alignment
Mark design
Mark use rule FileName string ----
Alignment Mark ID ID Uniqueness ID
Group string
Wafer mark type TYPE=P1,P2,…,F1,F2…
X Double ---- X-Mark X position X-Mark
Y Double ---- X-Mark Y position
X Double ---- Y-Mark X position
Wafer mark
position
Y-Mark
Y Double ---- Y-Mark Y position
UnitType string mm/um/inch
Alignment
USE Mark
Alignment Mark
information
(0 – ∞)
Comment string ----
7 XML Description (Schema)
XML description defined from Table 1 is as follows.
<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema targetNamespace="file://XML\SEMI_Samples\SemiSEMI"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:rfd="file://XML\SEMI_Samples\SemiSEMI">
<!-- ================ Reticle frame design data infomation Table ====================== -->
<xsd:element name="rdm" type="rfd:rdmType"/>
<xsd:complexType name="rdmType">
<xsd:sequence>
<xsd:element name="FormulationInformation"
type="rfd:FormulationInformationType"/>
<xsd:element name="UseExposureMachine" type="rfd:UseExposureMachineType"/>
<xsd:element name="ShotMap" type="rfd:ShotMapType"/>
<xsd:element name="ReticleDesign" type="rfd:ReticleDesignType"/>
<xsd:element name="AlignmentMarkDesign" type="rfd:AlignmentMarkDesignType"/>
<xsd:element name="AlignmentUSEMark" type="rfd:AlignmentUSEMarkType"/>
</xsd:sequence>
</xsd:complexType>
<!-- ====================== FormulationInformation ============================ -->
