SEMI E134.1-0305 © SEMI 2005 43
7.2.18.4.17 CompositeValueType — This elements is the XML Schema representation of the SEMI E125.1
VariableTypeType class. The following table describes the mapping of the UML class to this XML Schema
elements. The CompositeValueType class references the base classes defined in ¶¶7.2.18.4.7 through 7.2.18.4.17.
Figure 30
CompositeValueType
7.2.19 GetObjTypeInstanceIds
7.2.19.1 WSDL Operation Binding
7.2.19.1.1 See the operation binding for “GetObjTypeInstanceIds” in E134-Equipment-Binding.wsdl. Key
information is shown for convenience in the following table.
SEMI E134.1-0305 © SEMI 2005 44
Table 87 GetObjTypeInstanceIds Operation Binding
SOAPAction
urn:semi-org:ws.E134-1.V0305.DCMEqp-binding:GetObjTypeInstanceIds
Input Headers (WSDL Message, Required) E132HeaderMessage, required
Output Headers (WSDL Message, Required) E132HeaderMessage, required
7.2.19.2 WSDL Operation
7.2.19.2.1 See the portType operation definition for “GetObjTypeInstanceIds” in E134-Equipment-PortType.wsdl.
Key information is shown for convenience in the following table.
Table 88 GetObjTypeInstanceIds PortType Operation
Input Message Name GetObjTypeInstanceIdsRequest
Output Message Name GetObjTypeInstanceIdsResponse
7.2.19.3 WSDL Message(s)
7.2.19.3.1 See the message definitions for “E132HeaderMessage”, “GetObjTypeInstanceIdsRequest”, and
“GetObjTypeInstanceIdsResponse” in E134-Equipment-PortType.wsdl. Key information is shown for convenience
in the following table.
Table 89 DataCollectionManagement Binding
Message Name
Schema
Element Name
E132HeaderMessage auth:E132Header
GetObjTypeInstanceIdsRequest dcm:GetObjTypeInstanceIdsRequestType
GetObjTypeInstanceIdsResponse dcm:GetObjTypeInstanceIdsResponseType
7.2.19.4 XML Schema Types
Figure 31
GetObjTypeInstanceIdsRequest
7.2.19.4.1 GetObjTypeInstanceIdsRequest — This global element acts as a top-level container entity representing
the SOAP body of a GetObjTypeInstanceIds request. As defined in SEMI E134, this operation has one input
argument: the Parameters that are being requested. This argument is modeled as an element named “Request” of
complexType “ObjTypeRequestType”.
Table 90 Translation Table for Input Arguments for the GetObjTypeInstanceIds Operation
Argument Name Format XML Element or Attribute XML Name/Type
request List of elements of type
ObjTypeRequest
Element Request: dcm:ObjTypeRequestType
7.2.19.4.2 ObjTypeRequestType — This global complexType is the XML Schema representation of the SEMI E134
ObjTypeRequest class. The following table describes the mapping of the UML class to this XML Schema
complexType.
SEMI E134.1-0305 © SEMI 2005 45
Table 91 Translation Table for ObjTypeRequestType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
sourceId Text Attribute sourceId: xsd:string
objTypeId Text Attribute objTypeId: xsd:string

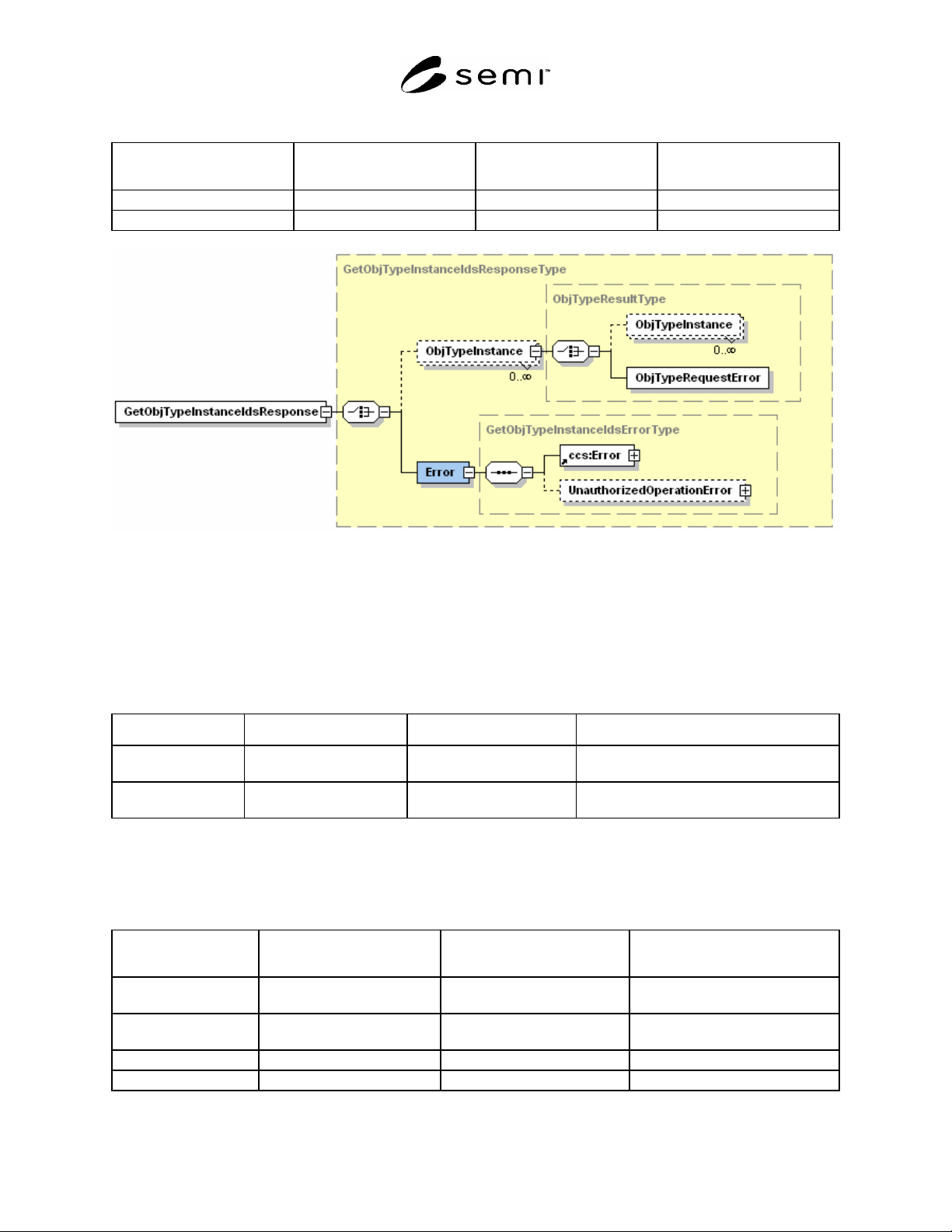

Figure 32
GetObjTypeInstanceIdsResponse
7.2.19.4.3 GetObjTypeInstanceIdsResponse — This global element acts as a top-level container entity representing
the SOAP body of the response to an SEMI E134 GetObjTypeInstanceIds request. It contains either an element
named “objTypeInstances” of complexType “ObjTypeResultType” or an element named “Error” of complexType
“dcm:GetObjTypeInstanceIdsErrorType”.
Table 92 Translation Table for Output Arguments for the GetObjTypeInstanceIds Operation
Argument Name Format XML Element or Attribute XML Name/Type
objTypeInstances List of elements of type
ParameterValue
Element ObjTypeInstances: dcm:ObjTypeResultType
error N/A Element ErrorType:
dcm:GetObjTypeInstanceIdsErrorType
7.2.19.4.4 ObjTypeResultType — This global complexType is the XML Schema representation of the SEMI E134
ObjTypeResult class. The following table describes the mapping of the UML class to this XML Schema
complexType.
Table 93 Translation Table for ObjTypeResultType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
objTypeInstances List of zero or more elements
of type ObjTypeInstance
Element ObjTypeInstances:
dcm:ObjTypeInstanceArrayType
objTypeRequestError Zero or one element of type
ObjTypeRequestError
Element ObjTypeRequestError:
dcm:ObjTypeRequestErrorType
sourceId Text Attribute sourceId: xsd:string
objTypeId Text Attribute objTypeId: xsd:string
