SEMI E54.14-0305 © SEMI 2005 7
IO device
Sub
slot
0
Sub
slot
m
...
Slot0
Slot 1 carries
Module x
Sub
slot
0
Sub
slot
m
...
Record Data
Diagnosis
Alarm
IO Data
Subslot 0
Sub
slot
m
Context
Slot n carries
Module y

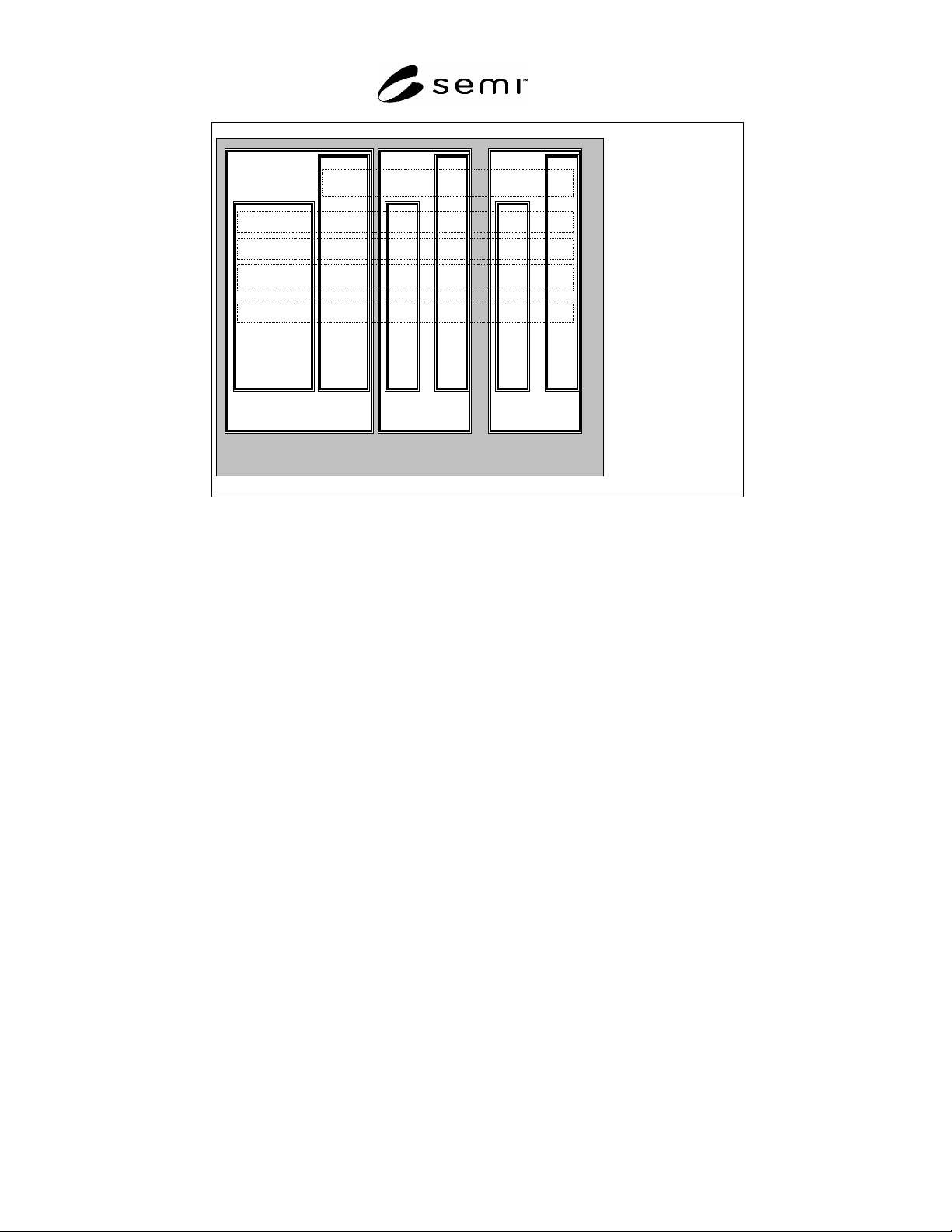

Figure 2
Device Model
6.9.2.4 Object classes are defined for:
IO Data for periodic reporting,
Context for configuration,
Diagnosis for event collection,
Record Data for polled access, and
Alarms for asynchronous event reporting.
A set of services are defined for these object classes.
6.9.2.5 IO Data are handled mainly by buffered services which allow decoupling between application and
communication. Client/Server service structure (request/response) is used for Context for configuration, Diagnosis
for event collection, Record Data for polled access and Alarms for asynchronous event reporting.
6.9.2.6 Cyclic functionalities offered in PROFINET IO:
exchange of IO data with related IO devices
6.9.2.7 Acyclic functionalities offered in PROFINET IO:
read diagnosis from IO devices
configuration of IO devices
write parameter data to IO devices (startup or application parameter)
treatment of configuration and diagnosis requests of an engineering device
initiate connections to IO devices by means of context management
acyclic access to record data of IO devices
treatment of alarms from IO devices
SEMI E54.14-0305 © SEMI 2005 8
sending of alarms to IO devices
6.9.3 Protocol Specification
6.9.3.1 An IO device has no IP-address and logical name when it is shipped.
6.9.3.2 A set up procedure has to allocate name and IP-address prior to operation.
6.9.3.3 To access an IO Device a controller has to establish the context first with a connect service. A check is
done to ensure that the appropriate device type with the required resources is accessed. Resources can be locked
with the connect service.
6.9.3.4 After a positive confirmation of the connect service the IO device may be loaded with the parameter
required by the controller application (e.g. warning limits, measure range, filter time). A control service is issued at
the end of parameterization.
6.9.3.5 There is a control service indicating that the IO Device application is ready to enter the operate state. The
start up is completed with this service.
6.9.3.6 After this start up procedure the data exchange of IO data can be done and alarms can be signaled from the
IO Device to the IO Controller. The IO Controller can invoke services to read and write record data that contain all
kind of information e.g. produced units, calibration information, and batch information.
6.9.3.7 A Release service will terminate the context.
6.9.3.8 A context is monitored by the receipt of Input Data at the IO controller and by the receipt of Output Data at
the IO device site. A timeout error of one timer unit is allowed which makes it possible to use a single timer
resource with granularity in the range of a millisecond.

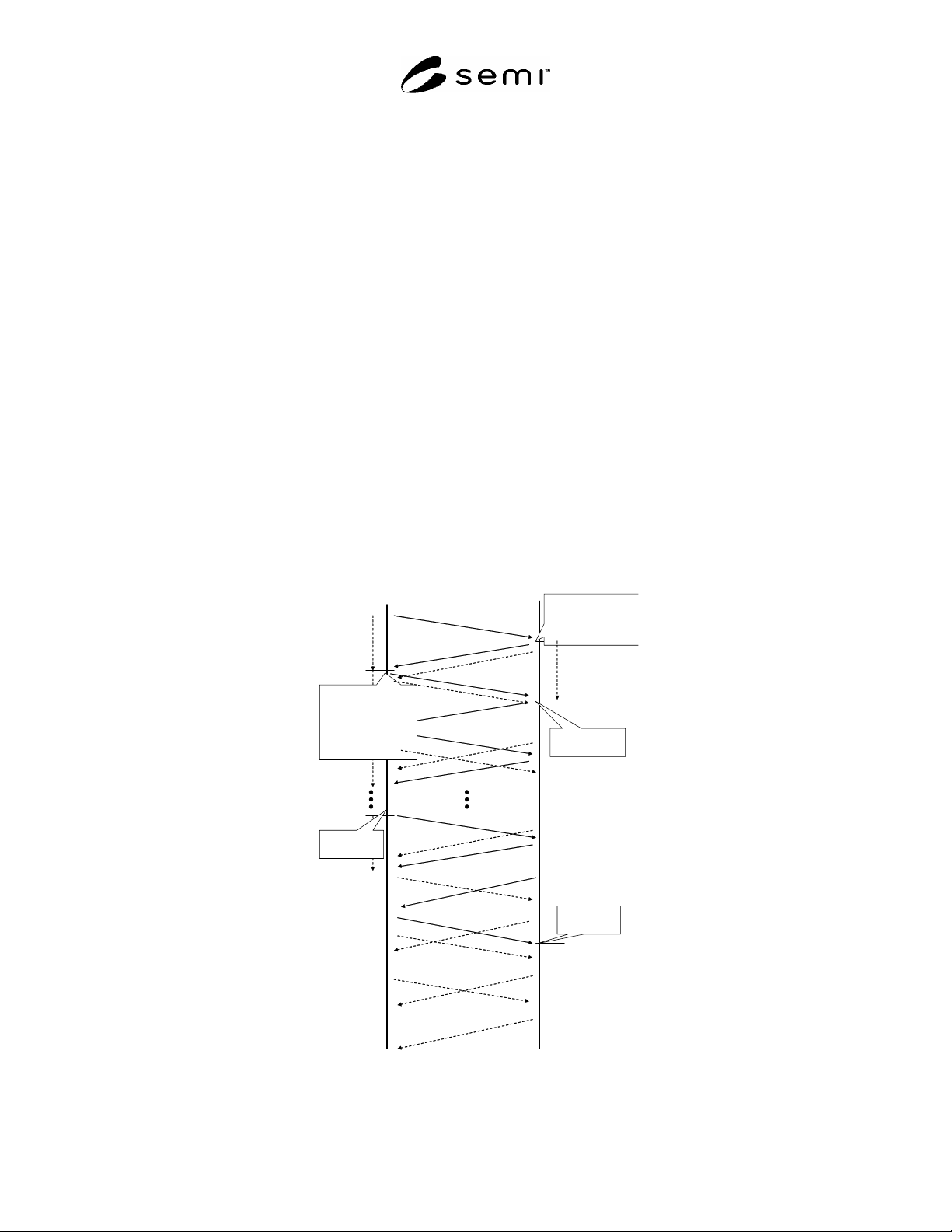

6.9.3.9 Figure 3 shows a sequence diagram of the start up procedure.
IO Controller
IO Device
CM_Connect.req()
CM_Connect.rsp (+)
Write_Record.req()
Write_Record.rsp (+)
IO Controller-
Timeout
Establish
Provider/Consumer/
Alarm-Statemachine
Start Provider
Start Consumer
with Monitoring
Write_Record.req()
Write_Record.rsp (+)
CControl.req()
CControlrsp()
Outputs
Inputs
DControl.req()
DControl.rsp(+)
Start Alarm-
Statemachine
Start Alarm-
Statemachine
Establish
Provider/Consumer/
Alarm- Statemachine
Start Provider
Start Consumer with
Monitoring
Figure 3
Start Up Sequence
SEMI E54.14-0305 © SEMI 2005 9
6.9.4 Communication Management
6.9.4.1 DCP (Discovery and Configuration Protocol) is used for basic management of stations (especially setting of
IP-address and Device name). DHCP (Dynamic Host Configuration Protocol) can be used as configuration option.
6.9.4.2 Connectionless DCE RPC is used as an interface between transport and application.
6.9.4.3 “Identification & Maintenance Functions” (I&M functions) define general parameters and protocols. The
main purpose of the I&M functions is to support the end user during various scenarios of a device’s life cycle be it
configuration, commissioning, parameterization, diagnosis, repair, firmware update, asset management, audit
trailing, and alike. Well-defined uniform parameters and rules should enable the manufacturers to offer devices that
behave in a uniform manner These profile guidelines take into account requirements from FDA (Food & Drug
Administration) and others. The basic information offered can be characterized as “Type Plate” or “Boiler Plate”. It
consists of Manufacturer ID, Order ID, Serial Number, Hardware Revision, Software Revision, Revision Counter,
Profile ID.
7 Required Object Types
7.1 This section describes a general mapping of the SEMI SAN Object Model to the PROFINET environment.
Component definitions are clarified and the mapping of Attributes, Services, and Behaviors are specified.
7.2 Object Model
7.2.1 The Object Model defined in the CDM is represented in the PROFINET NCS. Specifically, the DM and SAC
objects are mapped.
7.2.2 The CDM Objects are mapped to slots. These slots have a unique address space within the device. The
Specific Application Objects are mapped in PROFINET Device Data Base. §9 specifies the mapping of SDM
Objects in PROFINET.
7.3 Component Mapping Summary

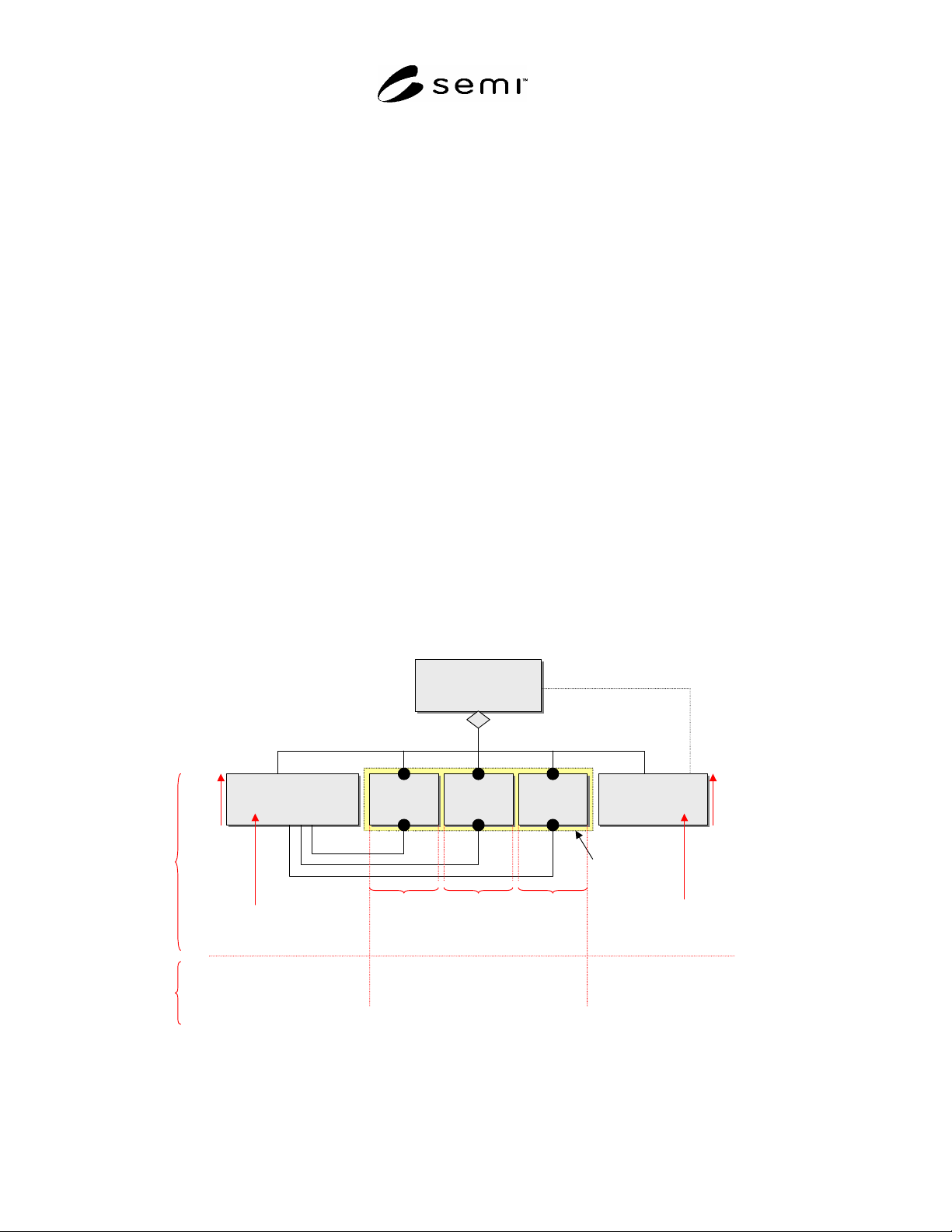

7.3.1 Figure 4 provides a summary of the components of the CDM object model as they relate to the components of
PROFINET.
Device
Device
Sensor/Actuator/
Controller Object
(SAC)
Sensor/Actuator/
Controller Object
(SAC)
Sensor
Object(s)
Sensor
Object(s)
Actuator
Object(s)
Actuator
Object(s)
Controller
Object(s)
Controller
Object(s)
Device Manager
Object
(DM)
Device Manager
Object
(DM)
is managed by
(Aggregation)
coordinates
m + n + p * 1
mn p
mn p
Active Element
Slot 0
Slot 0
1 Slot
per object,
starting with
Slot 1
1 Slot
per object,
starting with
Slot m+1
1 Slot
per object,
starting with
Slot m+n+1
Index
64
95
other Services
Cyclic
Services
Cyclic Data Structures will
be defined by Device Families
(Profiles) and via GSD
Figure 4
Component Mapping Summary
