SEMI E120.1-0705 © SEMI 2004, 2005 11
Attribute or Role
Name
UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
element (IODevice instances) IODevices: IODeviceArrayType
iodevices aggregation
element (references – when shared) IODeviceRefs: IODeviceRefArrayType
materialLocations composition element MaterialLocations MaterialLocations: MaterialLocationArrayType
ExecutionElement Type

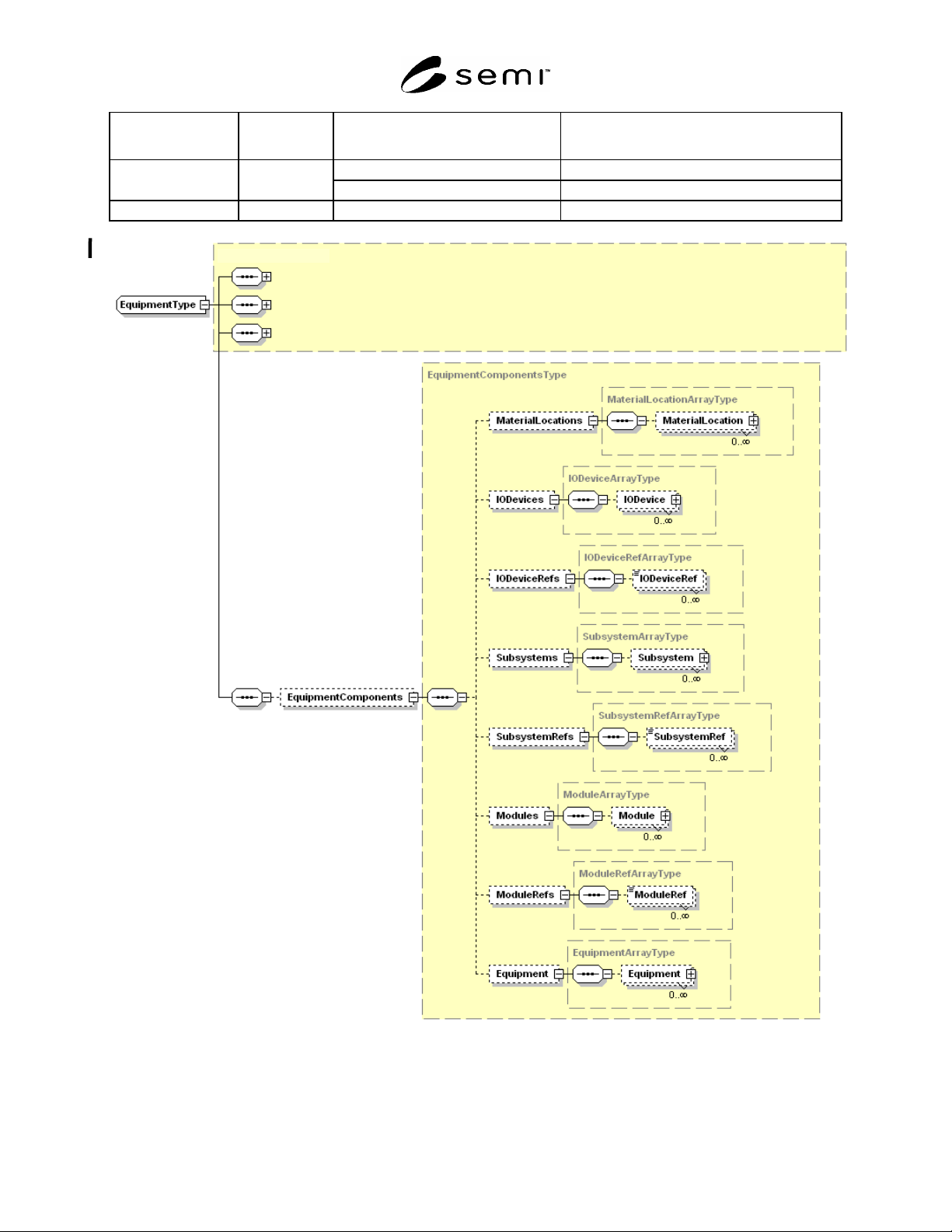

Figure 8
EquipmentType
SEMI E120.1-0705 © SEMI 2004, 2005 12
6.3.6 Module => ModuleType
6.3.6.1 The Module Class is mapped to the XML ModuleType. The ModuleType extends the
ExecutionElementType (see Figure 9). It is also a container for all of the components of the Module – Subsystems,
IODevices, MaterialLocations, and other Modules.
6.3.6.2 Table 8 shows how the attributes and associations of the Module class are mapped into XML. The
ModuleType contains the element ModuleComponents to act as a container. The XML elements listed in the table
are contained in ModuleComponents.
Table 8 Translation Table For Module Class
Attribute or Role
Name
UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
element (used first time a Module
is defined in the system)
Modules: ModuleArrayType
modules aggregation
element (references a previously
defined Module)
ModuleRefs: ModuleRefArrayType
element (used first time a
Subsystem is defined in the
system)
Subsystems: SubsystemArrayType
subsystems aggregation
element (references a previously
defined Subsystem)
SubsystemRefs: SubsystemRefArrayType
element (used first time an
IODevice is defined in the system)
IODevices: IODeviceArrayType
iodevices aggregation
element (references a previously
defined IODevice)
IODeviceRefs: IODeviceRefArrayType
materialLocations composition element MaterialLocations: MaterialLocationArrayType
SEMI E120.1-0705 © SEMI 2004, 2005 13
ExecutionElement Type
Figure 9
ModuleType
6.3.7 Subsystem => SubsystemType
6.3.7.1 The Subsystem class is mapped to the XML SubsystemType. SubsystemType extends EquipmentElement
(see Figure 10). It is also a container for all of the components of the Subsystem – IODevices and other Subsystems.
6.3.7.2 Table 9 shows how the associations of the Subsystem class are mapped into XML. The SubsystemType
contains the element SubsystemComponents to act as a container. The XML elements listed in the table are
contained in SubsystemComponents.
