SEMI M60-0305 © SEMI 2005 5 density will give us the approximate failure rate by the A-B mode breakdown. It is necessary to determine the classification of failure modes in advance. This is b ecause reliabilities depend …

SEMI M60-0305 © SEMI 2005 4

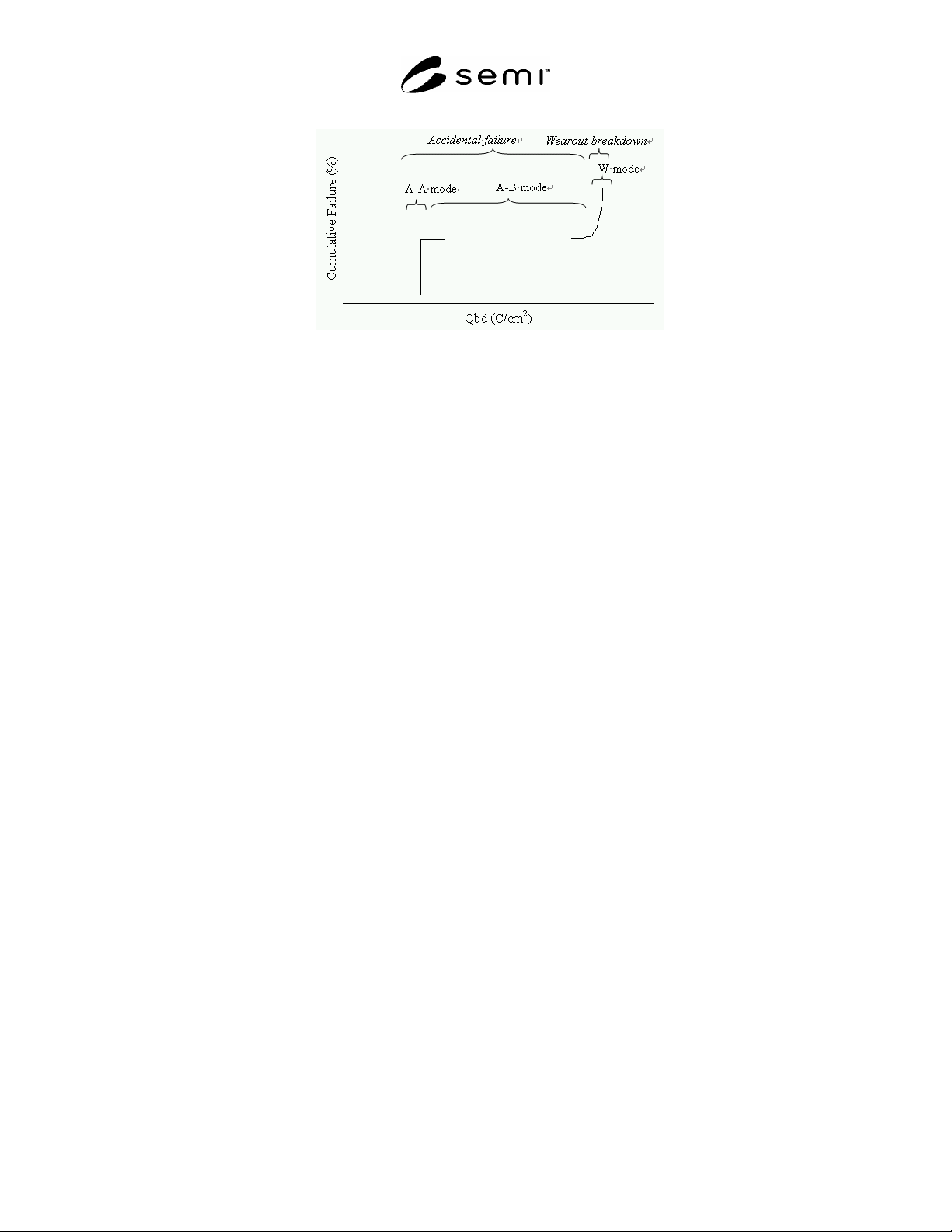

Figure 1

Classification in Weibull plot of TDDB result.

4.2.3.2.1 Discussion on failure modes:

 A-A Mode: Initial breakdown failure

o This failure is caused by defects generated during gate oxide formation process such as pinholes and also

by crystal defects such as COPs. This failure corresponds to the A mode and partly B mode failures of

TZDB.

 A-B Mode: Intermediate breakdown failure

o This failure is caused by extrinsic defects which are not serious enough to cause the A-A mode. This

failure corresponds to the B mode and partly C mode failure of TZDB.

 W Mode: Wearout breakdown

o This breakdown is also called intrinsic breakdown or fatigue breakdown, and relates to the intrinsic lifetime

of oxide films. The measurement of this breakdown shall be performed carefully because the result

depends on measurement conditions.

o Response rapidity of the measurement system has a great influence on A-A mode detection. The total

number of A-A and A-B mode failures is related to the crystal quality of the mirror-polished CZ Si wafers.

4.2.3.3 Categorization of Breakdown Modes — boundaries of A-A/A-B modes and A-B/W modes shall be defined

in advance.

4.2.3.3.1 A-A/A-B Mode Boundary

 The detectable minimum Q

values depend on the stress current and response speed of the measurement

systems. As stress current density increases, the charge density of the A-A/A-B mode boundary may also

increases. This effect shall be considered when defining the A-A/A-B mode boundary. Based on these round

robin results, the charge density range from 0.0001C/cm

to 0.01 C/cm

is recommended as the A-A/A-B mode

boundary.

4.2.3.3.2 A-B/W mode boundary

 The A-B/W mode boundary is defined in terms of Weibull plots as shown in Figure RI-3. Ideally, it shall be

determined by the intercept point of two approximation lines in the A-B and W mode ranges. If the boundary

charge density is too low (Q < 1 C/cm

), one part of the A-B mode breakdown can be counted as the W mode.

Otherwise, if the boundary charge density is too high (Q > 4 C/cm

), one part of the W mode breakdown can be

counted as the A-B mode.

 In both cases, we have errors in the classification of the failure mode categories, even if the measurement is

accurately carried out and appropriate Weibull plots are obtained. So, the results of this round robin indicate

that the charge density of 2 C/cm

is recommended as the A-B/W mode boundary. To measure the failure rates

at the boundary charge density of the A-B/W modes, all samples are not necessarily broken down. If the

determination procedure of the boundary charge density is clear, the application of a predetermined charge

SEMI M60-0305 © SEMI 2005 5

density will give us the approximate failure rate by the A-B mode breakdown. It is necessary to determine the

classification of failure modes in advance. This is because reliabilities depend on the devices fabricated on the

Si wafer (electrode material, gate oxide thickness, operating voltage, etc.). Refer to an example of mode

classification described in Figure RI-2.

4.2.3.4 Time Zero Dielectric Breakdown (TZDB) — one of the dielectric breakdown characteristic of the gate oxide.

4.2.3.4.1 Discussion — To measure TZDB, oxide leakage current is monitored with an electric field applied to the

MOS capacitor stepwise from 0 to 15MV/cm (for example in the case of a 25 nm-thick oxide, actual applied voltage

would be from 0 to 37.5V). The electrode is negatively biased so that the Si surface is in accumulation and the

electric field is applied effectively. Applied electric field (or voltage) is measured when the oxide leakage current

reaches a predetermined value (judgment current), in other words when the gate oxide breaks down. The influence

of COPs on gate oxide breakdown can be estimated from the distribution of breakdown electric field.

5 Summary of Method

5.1 Overview — This test method consists of two parts. The first one is the fabrication of a number of similar MOS

capacitors on silicon wafers, and the second one is the measurement of the electric charge injected just before the

dielectric breakdown of the MOS capacitors. To measure the injected electric charge, the voltage applied to a MOS

capacitor is controlled so that the current is kept constant. The voltage is monitored throughout the test, and the time

from the beginning to a sudden voltage drop which results from the dielectric breakdown of the silicon dioxide film

is measured. The injected electric charge is the product of the measured time and the gate current density.

5.2 MOS Capacitor Fabrication Process — Many MOS capacitors are formed on the test wafer. The MOS

fabrication process consists of wafer cleaning, thermal oxidation, poly-Si deposition, phosphorous doping, activation

heat treatment, photolithography and etching, in the case of using poly-Si electrodes. The details of the MOS

capacitor fabrication process are shown in SEMI M51. When materials other than poly-silicon are used for

electrodes, the process shall be adjusted to the material used. Although thermally grown 20–25 nm-thick gate oxide

films are recommended in SEMI M51, oxide films as thin as 10 nm can be used depending on the situation.

However, measurement shall be performed carefully for oxide films thinner than 3 nm, because breakdown

judgment becomes difficult under the influence of direct tunneling current. See SEMI C3.6, SEMI C3.54, SEMI

C21, SEMI C27, SEMI C28, SEMI C30, SEMI C35, SEMI C38, SEMI C41, SEMI C44, SEMI C54, SEMI C59.

5.3 Fabrication Environment — It is necessary to fabricate MOS capacitors in a clean room environment of 1000 or

better class in total quality. That is, it needs to be confirmed that the A mode failure rate is 10% or less by TZDB

evaluation. The A mode failure depends not only on the particle of work environment atmosphere but also on the

ultrapure water, fixtures, process apparatus, clean clothes, operation rules etc. Heavily contamination such as

alkaline or heavy metal has an important negative effect on the GOI of the oxide.

5.4 Measurement of Electric Characteristic of MOS Capacitors

5.4.1 The dielectric breakdown defect density of the silicon oxide film is evaluated by constant current TDDB

measurement of the MOS capacitors. The evaluation consists of the measurement of charge injected before the

dielectric breakdown of the MOS capacitors. To measure the injected charge, voltage applied to a MOS capacitor is

controlled so that the current is kept constant. The applied voltage is monitored throughout the test, and the time to

sudden voltage drop which results from dielectric breakdown of the silicon dioxide film is measured. The amount of

the injected charge is the product of the measured time and gate current density. The defect density of the oxide

film is evaluated from the Weibull plot (cumulative failure rate) of the dielectric breakdown data of approximately

100 MOS capacitors.

SEMI M60-0305 © SEMI 2005 6

5.4.2 Stress Current Density — For reliable measurement, a voltage/current source with a stable output wave shape

shall be used. It is necessary to stabilize the output as much as possible. In the constant current TDDB

measurement, a constant current is continuously applied, and voltage is monitored. The dielectric breakdown is

judged by a sudden drop in the voltage monitored. If the applied stress current density is too low, the time to

breakdown will be too long to be realistic. Contrarily, too a high current density is also unsuitable because the

voltage drop in the oxide breakdown instant becomes small. Considering these factors, the recommended stress

current density range is from 0.01 to 0.1A/cm

5.5 Measurement Temperature — Besides current density, the measurement temperature is also an important

parameter which determines measurement time. It is appropriate to measure in the temperature range of room

temperature to 150ºC, taking into consideration the temperature tolerance of the measurement equipment. In

addition, there are cases that since silicon wafer, stage chuck, probe, and so on, expand at a high temperature, the

probe deviates from the predetermined position, thus consideration is required when selecting probing machines.

5.6 Breakdown Judgment — To measure the dielectric breakdown lifetime of an oxide film, the voltage applied to a

MOS capacitor is controlled so that a current is kept constant. The applied voltage is monitored throughout the test.

The dielectric breakdown of the oxide is judged by sudden voltage drop. In practice, at the dielectric breakdown the

applied voltage becomes lower than the criterion voltage defined before. The dielectric breakdown lifetime is the

stress application time till breakdown. If the criterion voltage is too low, it can easily affected by noise. In contrast,

the chance of missing breakdown events is increased if the criterion voltage is too high. The changes in two

continuous measured gate voltages can be used to judge the oxide breakdown. The instant at which the voltage

change became larger than the criterion value is defined as dielectric breakdown. The same caution mentioned

above is also required in this case. In this round robin, the current density is from 0.01 to 0.1A/cm

, the sheet

resistance of the poly-silicon electrode is approximately 50 ohm/sq, gate electrode area is from 1mm

to 10mm

gate oxide thickness is 25nm and measurement temperature is from room temperature to 150ºC. In this case

dielectric breakdown is determined from the changes in two continuous measured gate voltages. For example, the

change in gate voltage is larger than X

criterion

(%) of the former gate voltage value. X

criterion

is higher than 10%.

Alternatively, dielectric breakdown is determined with the measured electric field, E

. It is considered that

dielectric breakdown does not happen until E

becomes E

criterion

or lower. E

criterion

is higher than 4MV/cm. Stable

measurement results are obtained in both cases. Of course, these criterion electric fields depend on gate oxide

thickness, sheet resistance and area of gate electrode, stress current, stress temperature, and so on. To detect the

dielectric breakdown with the change in gate voltage as shown in Figure 2, it is desirable to determine the criterion

under each condition in advance.

5.7 Estimation of Accidental Failure Rate — As mentioned before, the total number of A-A and A-B mode failures

is related to the crystal quality of the mirror polished CZ Si wafers. It takes a long time to measure the wearout

lifetime of all the MOS capacitors. If a requirement is only measurement of the accidental failure rates of the MOS

capacitors on silicon wafer surface, TDDB measurement can be finished without detecting the wearout lifetimes.

That is, maximum stress time, T

max

, is determined to be Q

in the A-B mode range in advance. The cumulative

failure rate at T

max

is the total failure rate of the A-A and A-B modes. If the rough shapes of the Weibull plots of the

TDDB measurement can be predicted in advance, T

max

shall be determined as to be the maximum Q

in the

relatively flat range of the A-B mode. This reason is that variation of T

max

has little influence on the evaluation of

total accidental failure rates. This method has an advantage of that the failure rate of the A-A and A-B modes is

evaluated very quickly.

5.8 Constant-Voltage TDDB — The constant-voltage TDDB method is also used for a lifetime test. Measurement

conditions shall be optimized for each purpose. For TDDB, an average electric field of approximately 10MV/cm is

required. Therefore, the effective electric field applied to an oxide film is influenced by a series resistance. Thus,

the constant current TDDB is more suitable.
