• Drive Z-State Tests

• Multiple Period Tests

6.3.1.2 Level 2 External Measurements

• Inefficient w/o Automation

• Focused Scope

• Good Error Observability

• Drive (input) Timing Test

• Compare (output) Timing Test

• Driver Rise Time Test

• Drive (input) Timing Cycle Jitter Test

• High Speed Clock Test

7 Requirements

7.1 Acceptance Tests — Before initiating the test

process, the ATE under evaluation is to be certified by

a representative of the manufacturer or end-user to be

fully operational.

7.2 Personnel Qualification — The individual(s)

operating the ATE under evaluation must be certified or

otherwise qualified to operate this equipment, and be

familiar with the procedures for performing the analysis

called-out in this document.

7.3 Supplemental Equipment — The following equip-

ment is required: A digital sampling oscilloscope with

> 10 GHz bandwidth, probes with > 1 GHz bandwidth,

500 ohm input impedance, 2.5 pF ± 0.5pF input

capacitance, and < 0.125" ground lead. It is important

that this equipment requirement step be met. Tolerances

called-out in various steps of this procedure were

chosen to be consistent with the general equipment

specified in this equipment specification requirement.

7.4 This Procedure — It is highly recommended that

the user of this method read this document (SEMI G80)

in its entirety.

7.5 System — Test system usage will be available on

a continuous basis and uninterrupted during the allotted

time needed to perform this timing analysis procedure.

7.6 Application Program — It is required that an

application program be written to perform the steps

called-out in this procedure. That program will act as a

means of reliable and consistent interaction between the

tester and supplemental equipment. In so executing,

that program will also facilitate the data collection

process that will ultimately lead to the timing analysis

conclusions this procedure produces.

7.7 The Method — The recommended procedure, con-

tained primarily in Section 10 of this document, is gen-

erically written and will serve as a guide in producing

the required program, written in the test application

software language of the system under evaluation.

7.8 ATE System Performance (Load) Boards — To

collect data two performance/load boards will be

required. For one of these performance boards it is

recommended that adjacent tester channels be shorted

together with minimum and equal length intercon-

nections. This board will facilitate the data collection

process for Level 1 and in part for Level 2. The second

board is to have an open driver to comparator

connection and will be used for Level 2 drive input

timing tests. Reference Figures 1 and 4.

7.9 Exceptions — It is expected that the user of this

method execute the procedures as described in this

document. If the method user should choose to deviate

from the procedures recommended in this document it

is expected that an appropriate description of that

deviation be entered in the EXCEPTIONS PAGE

provided in Appendix 3.

8 Test Conditions

8.1 Environmental — It is a requirement that the

procedure called-out in this document be executed

within the intended environmental operating conditions

specified by the equipment supplier. Operating

temperature requirements specified by the equipment

supplier must be maintained.

8.2 Optional Execution — The user of this procedure

may consider rerunning this procedure at environmental

(temperature) extremes other than nominal.

8.3 Warm-up Period — It is essential that all

equipment used or under evaluation be allowed to

warm-up in accordance with the manufacturer’s

specified requirements for equipment stabilization.

8.4 Optional Data Collection — Data may be taken

immediately after equipment calibration. However, the

user of this procedure may wish to take additional data

at subsequent time intervals, but within the known good

calibration window for the system under evaluation.

9 Preparation of Apparatus

9.1 Equipment Configuration — The equipment under

evaluation must be configured for its normal and

intended operation. No special considerations such as

additional cooling or removal of equipment skins are to

be undertaken.

9.2 Equipment Calibration — The equipment under

evaluation must be fully calibrated before this proce-

dure is executed. No special calibration is to be

SEMI G80-0200 © SEMI 2000 4

performed and the equipment is to be configured for

normal and intended operation.

9.3 Supplemental Equipment Calibration — External

equipment used for level 2 data collection in this

procedure must be verified for proper calibration.

10 Test Method Procedure

10.1 The procedure is comprised of Level 1 tests and

Level 2 tests. Any ATE capability described in the

following tests that is not available on the ATE under

analysis is not required for compliance to the

procedure, but should be noted in the verification

results Table 1 and Table 2.

10.2 Each test system is different; thus this procedure

is generic. Regardless, it will provide comprehensive

results when the specific application is created using

this procedure as a guide. Per the requirements, a load

board and application program written to accommodate

the procedure should be in place when the procedure is

executed. This procedure is to be executed per the

requirements outlined in Section 7 of this document.

When these requirements are met, the following steps

will comprise the step by step process for execution of

this Test Method:

Adjacent pins shorted together

Pin n

Pin n+1

Short

Pin n

Driver

Receiver

Pin n+1

Driver

Receiver

Tester

Performance

oard

Pairs of adjacent tester pins are shorted together with

minimum length interconnect on the performance board.

Figure 1

Level 1 Verification

1. Install the performance board.

2. Power up the system and supplemental equipment,

allow adequate time for stabilization.

3. Load the appropriate application program that

represents the embodiment of the procedure called out

in Sections 10.3.1, 10.3.4, 10.3.5, and 10.3.6 for Level

1 as well as Sections 10.4.1, 10.4.2, 10.4.3, 10.4.4,

10.4.5, and 10.4.6 for Level 2.

4. Execute the method to completion. The application

program can capture the data for Level 1 and Level 2

and store that for later analysis.

5. This procedure calls for various time measurements

to be made at specified voltage points or signal levels.

The user is encouraged to maintain these values to keep

the method results constants when system to system

comparisons are being made. Regardless, he is free to

adjust these measurement points or levels to accommo-

date specific integrated circuit technology requirements

important to that product and the system being

analyzed. When that occurs documentation of those

procedure variations must be entered in Appendix 3

(Exceptions Page).

6. Best results from this procedure are achieved if a

consistent measurement methodology is maintained.

This is important when making time measurements

relative to a particular transition point on a signal edge.

This method recommends that when signal measure-

ments are specified at a particular transition point, i.e.,

50%, that this point on the edge be determined relative

to the 0% or 100% steady state levels displayed on the

oscilloscope, after any aberrations due to the transition

have expired. A tester reference channel, the lowest

channel, should be used to set the measurement point(s)

and then consistently used as the basis for subsequent

measurements for the remaining tester channels.

7. Data Analysis –– Analyze the captured data and

make the appropriate data entries to Table 1, provided

in this method document.

8. When this method execution is complete, document

all method exceptions in the EXCEPTIONS section of

this document (Appendix 3).

9. Results –– Data entry to Table 2. Make the

appropriate data entries to Table 2, provided in this

method document and supplemented with examples

contained in Appendix 2.

10.2.1 Level 1 requires no external equipment for

completion, whereas Level 2 does require use of

external equipment. The user is free to implement this

procedure through total manual intervention. On the

other hand, the user may choose to apply an automated

or robotic approach to data collection for Level 2.

Regardless, the user is advised that tester and external

equipment interaction accommodated by the application

program is necessary for data collection at Level 2.

10.3 Level 1 Tests — Level 1 tests are intended to

efficiently gather a large amount of data by taking

advantage of the self-analysis ability of the ATE. This

is accomplished by shorting adjacent tester channels

together on a performance board with minimum, equal

length interconnections, and using one channel to test

the other. Reference Figure 1. Execution speed and

system resource coverage are of primary importance for

Level 1. Level 1 is intended to analyze specification

conformance as opposed to diagnose system failures.

All measurements are normalized to “zero” in order to

facilitate subsequent data reduction/analysis. Level 1 is

intended to collect data only. Data reduction and

processing are to be done off-line in order to maximize

data collection efficiency.

10.3.1 Timing Linearity Test — This test is used to

establish drive input to compare output timing accuracy

by “stretching” the test cycle in minimum cycle

programming increments while using fixed percentage

delays and pulse widths as the method sweeps through

various timing conditions. The test pattern should be

written to switch all even or odd pins simultaneously,

and for all transitions and associated strobes to occur at

least 100 times for each data point.

10.3.2 For clarification all drive edges are detected in

parallel in pairs. The intention is to sweep the compare

edge and detect the earliest occurrence of a drive edge

with the latest compare edge, as well as detect the latest

occurrence of a drive edge with the earliest compare

edge.

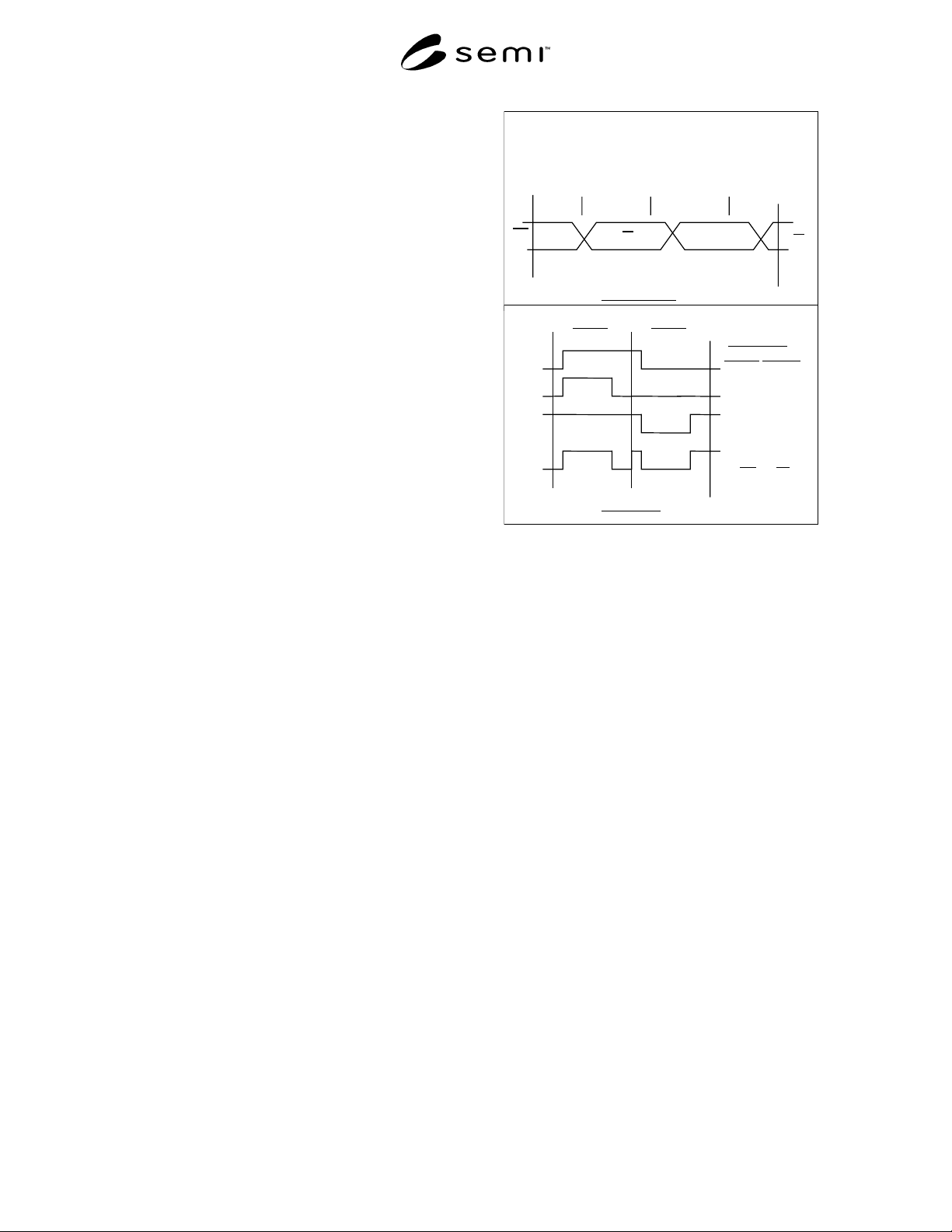

SBC Example

For pulse width = 33.3% (SBC

format) all formats start at 25% of the

programmed test cycle.

25% 33% 33%

25% 50% 75% 100% 0

Data 1 Data 0

RTZ

RTO

SBC

Transitions

Data 1 Data 0

1 1

2 0

0 2

total: 6 6

Transitions

Figure 2

SBC Example and Transitions

10.3.3 The following Test Cycle Example and nested

loop outline describes the test flow:

for amplitude = 1V, 3V, 5V

for direction =

odd_pins_drive_&_even_pins_compare to

even_pins_drive_&_odd_pins_compare

for test_cycle = min_cycle to [min_cycle +

500*cycle_resolution] by

cycle_resolution, 3x min_cycle, 10x min cycle

for pulse width = 50% (RTZ/RTO formats)

= 33.3% (SBC format)

= don't care (NR format)

for format = NR, RTZ, RTO, SBC (NOTE 1: all

formats start at 25% of the programmed test

cycle)

for all format transitions (pattern data 0 and 1)

detect earliest occurrence of format

transition midpoint with the latest

compare pin

detect latest occurrence of format transition

midpoint with the earliest compare pin

error = (latest occurrence - earliest

occurrence)

end transitions

end format

end pulse width

end test_cycle

end direction

end amplitude
