SEMI P33-0998 © SEMI 1998 6 Figure 7 Measurem e nts for Cal culation of Parallelism with Approx imate Position s Figure 8 Corner Diagonal ly Opposi te of Cham fer
SEMI P33-0998 © SEMI 19985
Figure 5
Substrate Identification by Corner Chamfer(Non-Critical Side)
Figure 6
Dimension of Corner Chamfer
SEMI P33-0998 © SEMI 1998 6

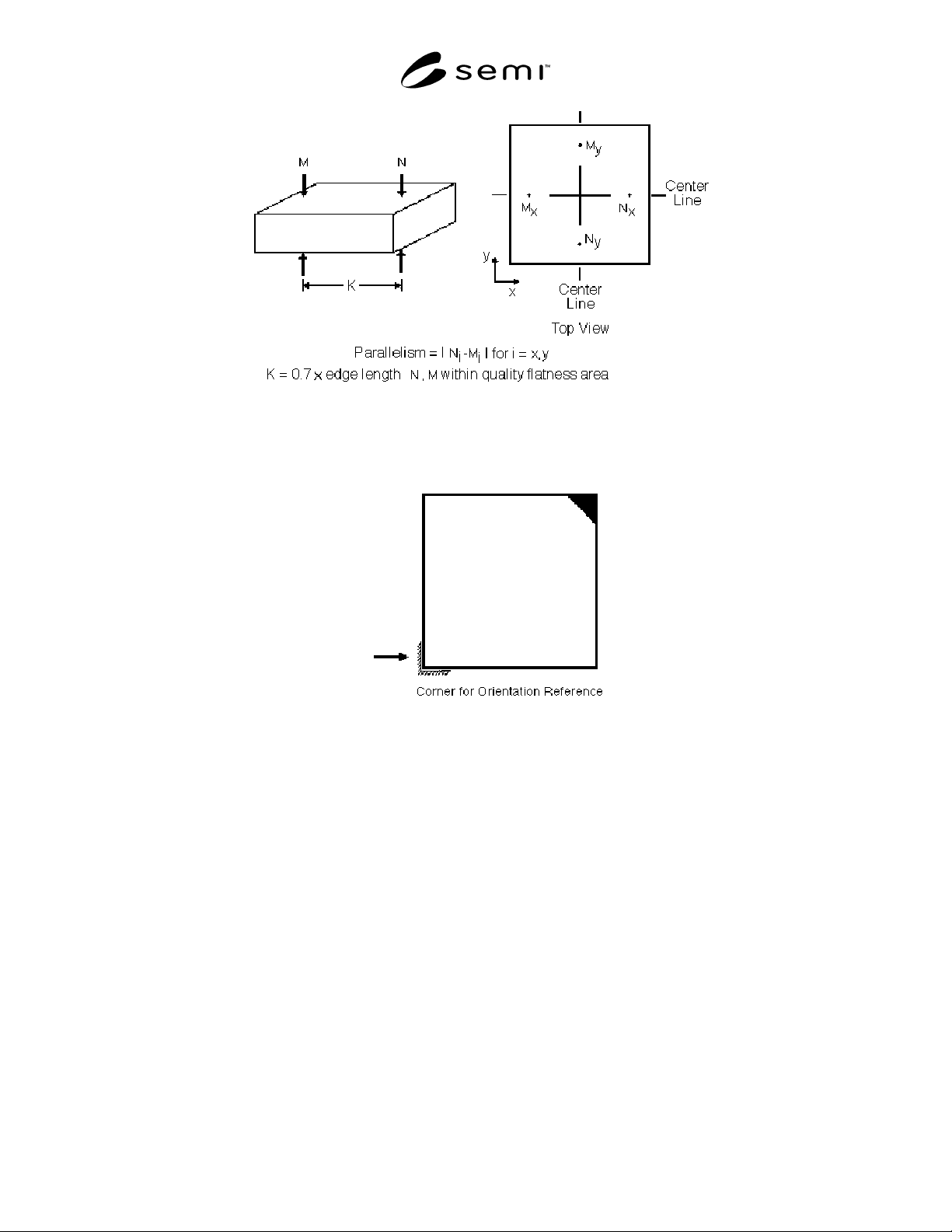

Figure 7
Measurements for Calculation of Parallelism with Approximate Positions
Figure 8
Corner Diagonally Opposite of Chamfer
SEMI P33-0998 © SEMI 19987
APPENDIX 1
HARD SURFACE PHOTOMASK MATERIAL PROPERTIES
NOTE: This appendix was approved as an official part of SEMI P33 by full letter-ballot procedure.
Table A1-1 Material Properties
Property
Ultra Low Thermal Expansion (ULTE)
Modulus of Elasticity 6.7–7.4 × 10
3
kg/mm
2
Poisson’s Ratio 0.16–0.19
Specific Gravity 2.18–2.20 g/cm
3
NOTICE: These standards do not purport to address
safety issues, if any, associated with their use. It is the
responsibility of the user of these standards to establish
appropriate safety and health practices and determine
the applicability of regulatory limitations prior to use.
SEMI makes no warranties or representations as to the
suitability of the standards set forth herein for any
particular application. The determination of the
suitability of the standard is solely the responsibility of
the user. Users are cautioned to refer to manufacturer’s
instructions, product labels, product data sheets, and
other relevant literature respecting any materials
mentioned herein. These standards are subject to
change without notice.
The user’s attention is called to the possibility that
compliance with this standard may require use of
copyrighted material or of an invention covered by
patent rights. By publication of this standard, SEMI
takes no position respecting the validity of any patent
rights or copyrights asserted in connection with any
item mentioned in this standard. Users of this standard
are expressly advised that determination of any such
patent rights or copyrights, and the risk of infringement
of such rights, are entirely their own responsibility.
