SEMI E97-0200A © SEMI 200027

Table 4 Job State Transitions

# Current State Trigger New State Action Comment

1 Non Existent Job creation. QUEUED JobStateChanged Event

published by the instance of Job

None.

2 QUEUED Internal to component. EXECUTING JobStateChanged Event

published by the instance of Job

Job has started.

3 EXECUTING void makePaused ( );

sent to the Job; or void

PauseAllJobs ( ); sent to

an instance of

JobSupervisor.

PAUSING JobStateChanged Event

published by the instance of Job

Job has been told to

pause.

4 PAUSING Internal to component PAUSED JobStateChanged Event

published by the instance of Job

Job has completed

PAUSING activities.

Wait for resume.

5 PAUSED void makeExecuting ( );

sent to the Job or void

resumeAllJobs (); sent

to an instance of

JobSupervisor.

EXECUTING JobStateChanged Event

published by the instance of Job

Restart EXECUTING

from the point

PAUSED at.

6 EXECUTING Internal to component COMPLETED Execution of the Job was

successful or completed

normally.

None.

7 EXECUTING void makeAborted ( );

sent the Job or void

abortAllJobs ( ); sent to

the JobSupervisor.

ABORTING Execution of the Job stops

immediately. Product or Job

will be unfinished.

None.

8 PAUSE void makeAborted ( );

sent the Job or void

abortAllJobs ( ); sent to

the JobSupervisor.

ABORTING Active Job is aborted

immediately.

None.

9 ABORTING Internal to component ABORTED JobStateChanged Event

published by the instance of Job

Job has completed

aborting activities.

10 STOPPING void makeAborted ( );

sent the Job or void

abortAllJobs ( ); sent to

the JobSupervisor.

ABORTING JobStateChanged Event

published by the instance of Job

None.

11 PAUSE void makeStopped( );

sent to the Job or void

stopAllJobs( ); sent to

the JobSupervisor.

STOPPING JobStateChanged Event

published by the instance of Job

None.

12 STOPPING Internal to component STOPPED JobStateChanged Event

published by the instance of Job

Job has completed

stopping activities.

13 EXECUTING void makeStopped( );

sent to the Job or void

stopAllJobs( ); sent to

the JobSupervisor.

STOPPING JobStateChanged Event

published by the instance of Job

None.

14 QUEUED void makeCanceled( );

sent to the Job.

CANCELED JobStateChanged Event

published by the instance of Job

Job has been canceled

before starting

execution. It cannot

be restarted.

15 FINISHED void removeFinished-

Job (in Job aJob); sent

to an instance of

JobSupervisor.

Non Existent JobStateChanged Event

published by the instance of Job

Job has been removed

from the finished

queue.

SEMI E97-0200A © SEMI 2000 28

6.6.4 JobRequestor Interface

Module: AbstractIF

Interface: JobRequestor

Inherited Interface: Implementation Dependent

Description: In order to request work of a JobSupervisor using the requestJob operation, a component

must implement the JobRequestor interface. This is a companion interface to

JobSupervisor. The JobRequestor may also subscribe to the state change events of the

Job, if more detail is required.

interface JobRequestor {

Exceptions: None.

Published Events: None.

Provided Services:

/* The Job has transitioned to a new state. Required for transition to Executing from Queued and for any transition

to a Finished sub-state. This operation is in addition to the required JobStateChangedEvent notifications. */

void informJobStateChange (

in Job aJob,

in Job::JobState previousState,

in Job::JobState newState)

raises (Global::FrameworkErrorSignal);

}; // JobRequestor

Contracted Services: None.

Dynamic Model: None.

Scenario:

aJobRequestor:

JobRequestor

aJobSupervisor:

JobSupervisor

aJob :Job

1: requestJob (Properties, JobRequestor)

2: Return Job

3: informJobStateChange (Job, Queued, Executing)

4: informJobStateChange (Job, Active, Finished)

Create Job Here

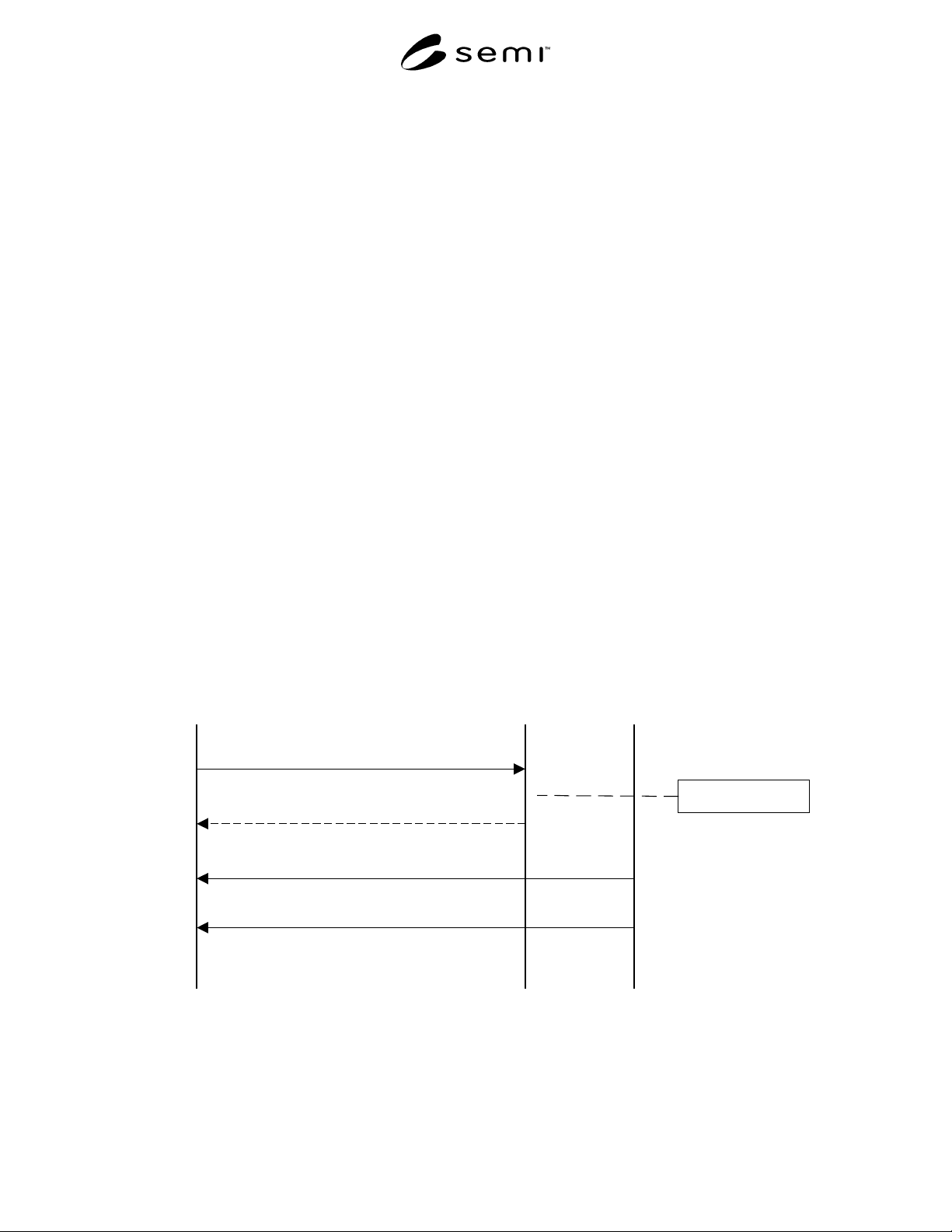

Figure 6

Job Supervision Scenario

6.6.4.1 Figure 6 shows the most basic of scenarios for Job Supervision interactions. It proceeds in this fashion:

6.6.4.1.1 The JobRequestor populates a JobSpecification then requests a Job according to that specification.

6.6.4.1.2 In response to the Job request, the JobSupervisor facilitates the creation of a Job to represent the task. A

handle to the Job is returned to the JobRequestor (assuming the Job request is accepted).

6.6.4.1.3 The Job Supervision component (e.g. in the form of the Job) informs the JobRequestor when the Job

begins.

6.6.4.1.4 The Job Supervision component (e.g. in the form of the Job) informs the JobRequestor when the Job has

completed (assuming successful completion). It also issues events for each state change (not shown in the scenario

diagram).

6.7 Factory Component

6.7.1 The Factory interfaces provide configuration services to specify the existence and connectivity of factory

resources that constitute a factory. This includes area configuration and the registration of CIM system components,

and the ability to dynamically configure a factory to enforce business policy.

6.7.1.1 These interfaces are included here to satisfy dependencies and meet needs of other CIM Framework

Components. These interfaces will be moved to the Factory Operations Component in a subsequent revision ballot.

Resource

OwnedEntity

Factory Component

ComponentManager

Machine

Person

MESFactory

0..*

0..1

0..*

0..1

registers

Area

0..*

groups

0..*

groups

0..*0..*

Figure 7

Factory Component Information Model
