SEMI G70-0996 © SEMI 1996, 2004 8 Table 4 Leadframe Fi xtures and Measurement Eq uipment (Dependent on Packag e Type) Items Group I Group II Leadframe Fixture Equipment Leadframe Fixture Equipment Crossbow 1. A. B. 1. 3.…
7 SEMI G70-0996 © SEMI 1996, 2004

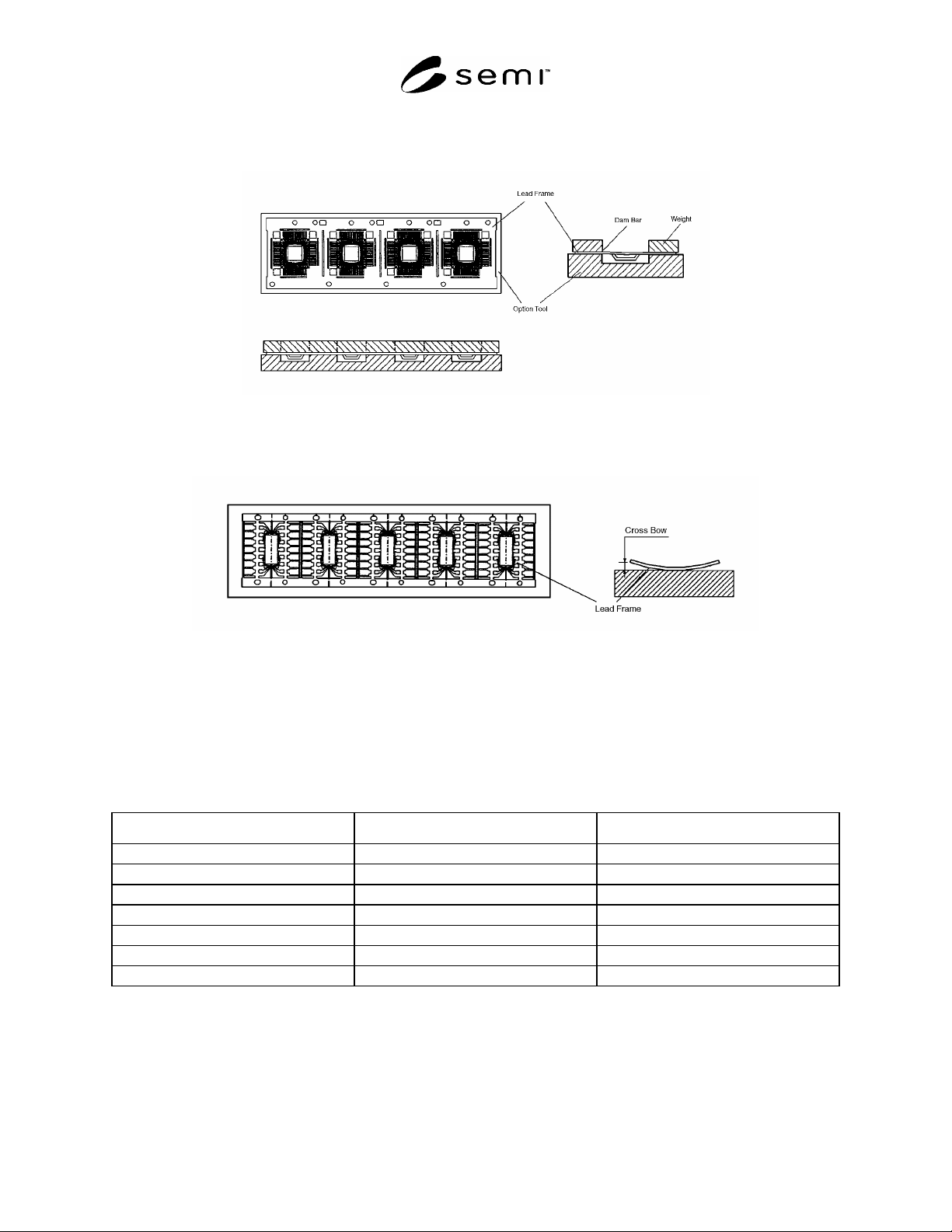

Figure 19
Leadframe Fixture — Type 4
Figure 20
Leadframe Fixture — Type 5
6 Measurement
6.1 Leadframe fixtures and measurement equipment for each measurement item are shown in Tables 3 and 4.
Table 3 Leadframe Fixtures and Measurement Equipment (Independent of Package Type)
Items Leadframe Fixture Equipment
Burr height 1. 2. 3. 4. 5. A. B. D.
Coil set 5 A. B. C.
Coined depth 1. 2. 3. 4. 5. A. B.
Die pad dimple depth 1. 2. 3. 4. 5. A. B.
Lead lock groove depth 1. 2. 3. 4. 5. A. B.
Half-etch depth 1. 2. 3. 4. 5. A. B.
Leadframe twist 1. 2. 3. 4. 5 A. B.
SEMI G70-0996 © SEMI 1996, 2004 8
Table 4 Leadframe Fixtures and Measurement Equipment (Dependent on Package Type)
Items Group I Group II
Leadframe Fixture Equipment Leadframe Fixture Equipment
Crossbow 1. A. B. 1. 3. A.
Die pad flatness 1. 3. A. B. D 3. 4. A. D.
Die pad location 1. 3 A. B 4 A.
Die pad tilt 1. 3. A. B 3. 4 A.
Downset depth 1. 3. A. B 4 A.
Lead planarity 1. 3. A. B 4 A.
Lead coplanarity 1. 3. A. B 4 A.
Lead tilt 1. 3. A. B 3. 4 A.
7 Related Documents
7.1 SEMI Standard
SEMI G10 — Standard Method for Mechanical Measurement for Plastic Package Leadframes
NOTICE: SEMI makes no warranties or representations as to the suitability of the standard set forth herein for any
particular application. The determination of the suitability of the standard is solely the responsibility of the user.
Users are cautioned to refer to manufacturer’s instructions, product labels, product data sheets, and other relevant
literature respecting any materials or equipment mentioned herein. These standards are subject to change without
notice.
By publication of this standard, SEMI takes no position respecting the validity of any patent rights or copyrights
asserted in connection with any item mentioned in this standard. Users of this standard are expressly advised that
determination of any such patent rights or copyrights, and the risk of infringement of such rights, are entirely their
own responsibility.
Copyright by SEMI® (Semiconductor Equipment and Materials
International), 3081 Zanker Road, San Jose, CA 95134. Reproduction of
the contents in whole or in part is forbidden without express written
consent of SEMI.
SEMI G71-0996 (Reapproved 1104)
SPECIFICATION FOR BARCODE MARKING OF INTERMEDIATE
CONTAINERS FOR PACKAGING MATERIALS
This standard was technically approved by the Global Assembly & Packaging Committee and is the direct
responsibility of the Japanese Packaging Committee. Current edition approved by the Japanese Regional
Standards Committee on July 23, 2004. Initially available at www.semi.org September 2004; to be published
November 2004. Originally published in 1996.
1 Purpose
1.1 This specification describes a common format,
content, size, and location for printed, machine-
readable labels on an intermediate container of
materials used for semiconductor packaging.
1.2 This specification provides for a smooth transition
from existing traceability and labeling procedures to a
comprehensive, unified system envisioned for the
future.
2 Scope
2.1 This document applies to the following packaging
materials:
2.1.1 Leadframe
2.1.2 Molding compound
2.1.3 Bonding wire
2.1.4 Die attach materials
2.2 This document applies to only the intermediate
container. Barcode specification for shipping pack is
referred to EIA 556A or EIAJ barcode specification.
2.3 This document does not apply to product package
label.
NOTE 1: There are requests for labeling on product packages
from the customers. However, task force concluded that the
product package label was not included in scope of the
specification because of limitation of area to be labeled on the
package. For further activity, two-dimensional barcode
symbol may be needed to standardize the barcode marking
specification for product packages.
NOTICE: This standard does not purport to address
safety issues, if any, associated with its use. It is the
responsibility of the users of this standard to establish
appropriate safety and health practices and determine
the applicability of regulatory or other limitations prior
to use.
3 Referenced Standards
3.1 AIM Specification
1
USS-39 — Universal Symbol Specification Code 39
3.2 ANSI Specifications
2
ANSI X3.182 — Barcode Print Quality - Guideline
ANSI/FACT-1 — Data Application Identifier Standard
3.3 EIA Specification
3
EIA 556A — Outer Shipping Container Bar Code
Label System
3.4 EIAJ Specification
4
EIAJ — Standard, Bar Code Label System
NOTICE: Unless otherwise indicated, all documents
cited shall be the latest published versions.
4 Terminology
4.1 Definitions
4.1.1 Many items relating to barcode technology are
defined in EIA 556, Appendix Definitions, and EIAJ
Bar Code Label Systems, Appendix A.
4.1.2 intermediate container — a container housing
one or more product packages for the purpose of
product/ order segregation in a shipping container.
AIM USA, 634 Alpha Drive, Pittsburg, PA 15238 1
2 American National Standards Institute, Headquarters: 1819 L
Street, NW, Washington, DC 20036, USA. Telephone: 202.293.8020;
Fax: 202.293.9287, New York Office: 11 West 42nd Street, New
York, NY 10036, USA. Telephone: 212.642.4900; Fax:
212.398.0023, Website: www.ansi.org
3 Electronic Industries Alliance, EIA Engineering Department,
Standards Sales Office, 2001 Eye Street, NW, Washington, D.C.
20006, USA., Website: www.eia.org
4 Electronic Industries Association of Japan, Available through:
Japan Electronics and Information Technology Industries
Association, 3rd Fl., Mitsui Sumitomo Kaijo Bldg. Annex 11, Kanda
Surugadai 3-chome, Chiyoda-ku, Tokyo 101-0062, Japan,
http://www.jeita.or.jp/eiaj/english/
1 SEMI G71-0996 © SEMI 1996, 2004
