SEMI P22-0699 © SEMI 1993 , 1999 6 Figure 21 Figure 22 Missing Opaque Pattern Missing Clear Pattern S1 S2 Figure 23 Figure 24 Dot Rando mly Shaped Edge Extension Ran domly Shape d Figure 25 Figure 26 Misplace ment On Opa…

100%1 / 7923
SEMI P22-0699 © SEMI 1993, 19995

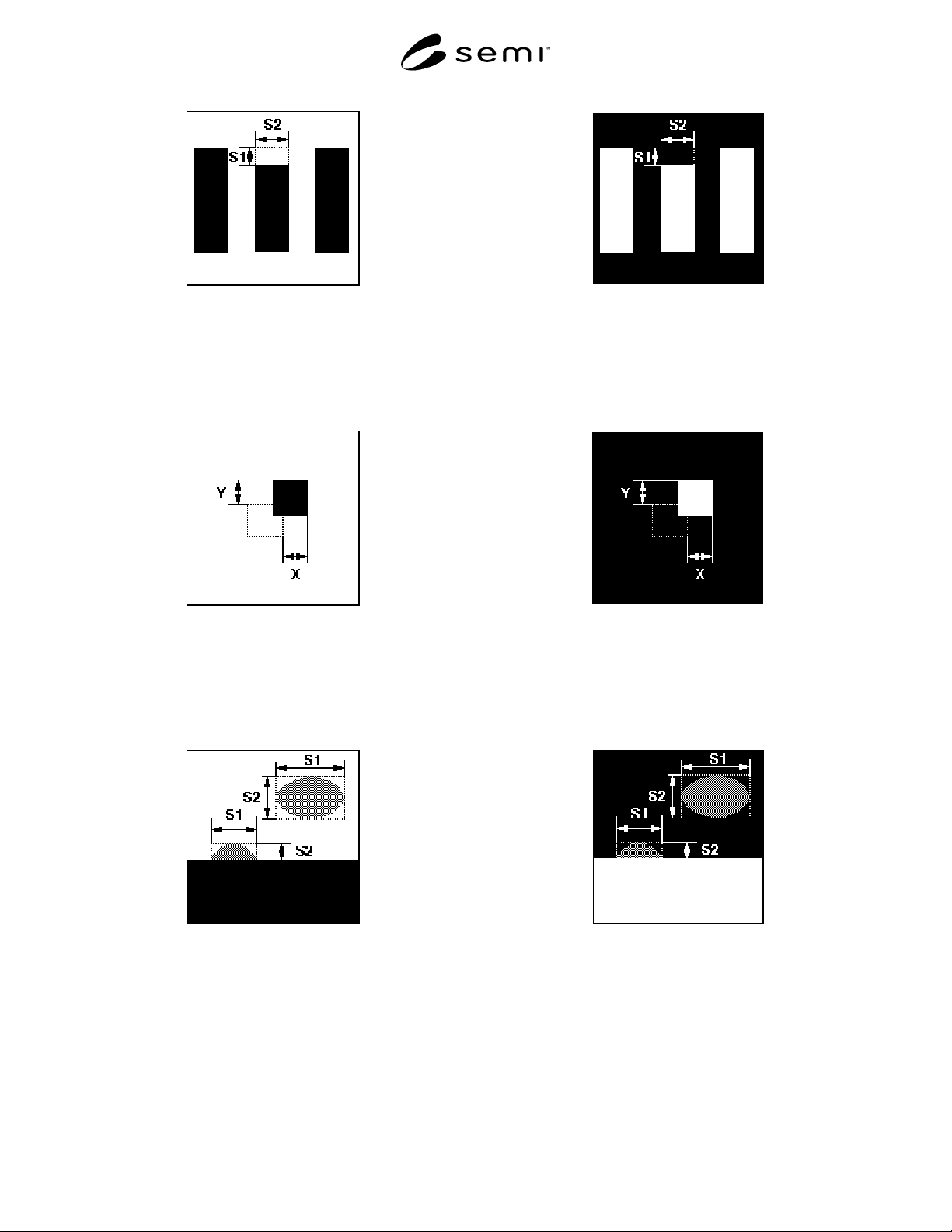

Figure 15 Figure 16
Truncation On Opaque Pattern Truncation On Clear Pattern
Figure 17 Figure 18
Misplacement On Opaque Pattern Misplacement On Clear Pattern
Figure 19 Figure 20
Transmission Defect On Clear Pattern Transmission Defect On Opaque Pattern
SEMI P22-0699 © SEMI 1993, 1999 6
Figure 21 Figure 22
Missing Opaque Pattern Missing Clear Pattern
S1
S2

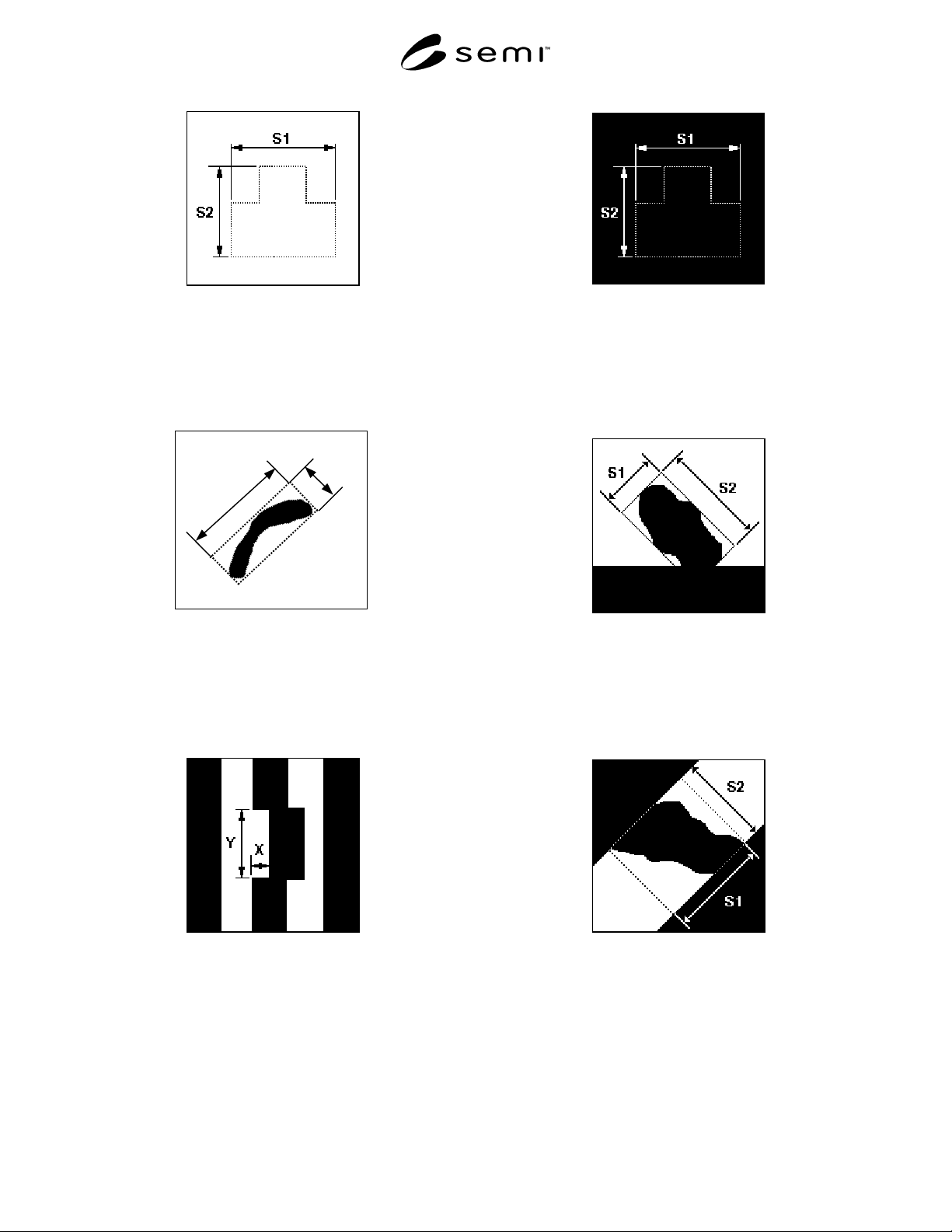

Figure 23 Figure 24
Dot Randomly Shaped Edge Extension Randomly Shaped
Figure 25 Figure 26
Misplacement On Opaque Pattern Opaque Bridge
SEMI P22-0699 © SEMI 1993, 19997
S2
S1
S2
S1

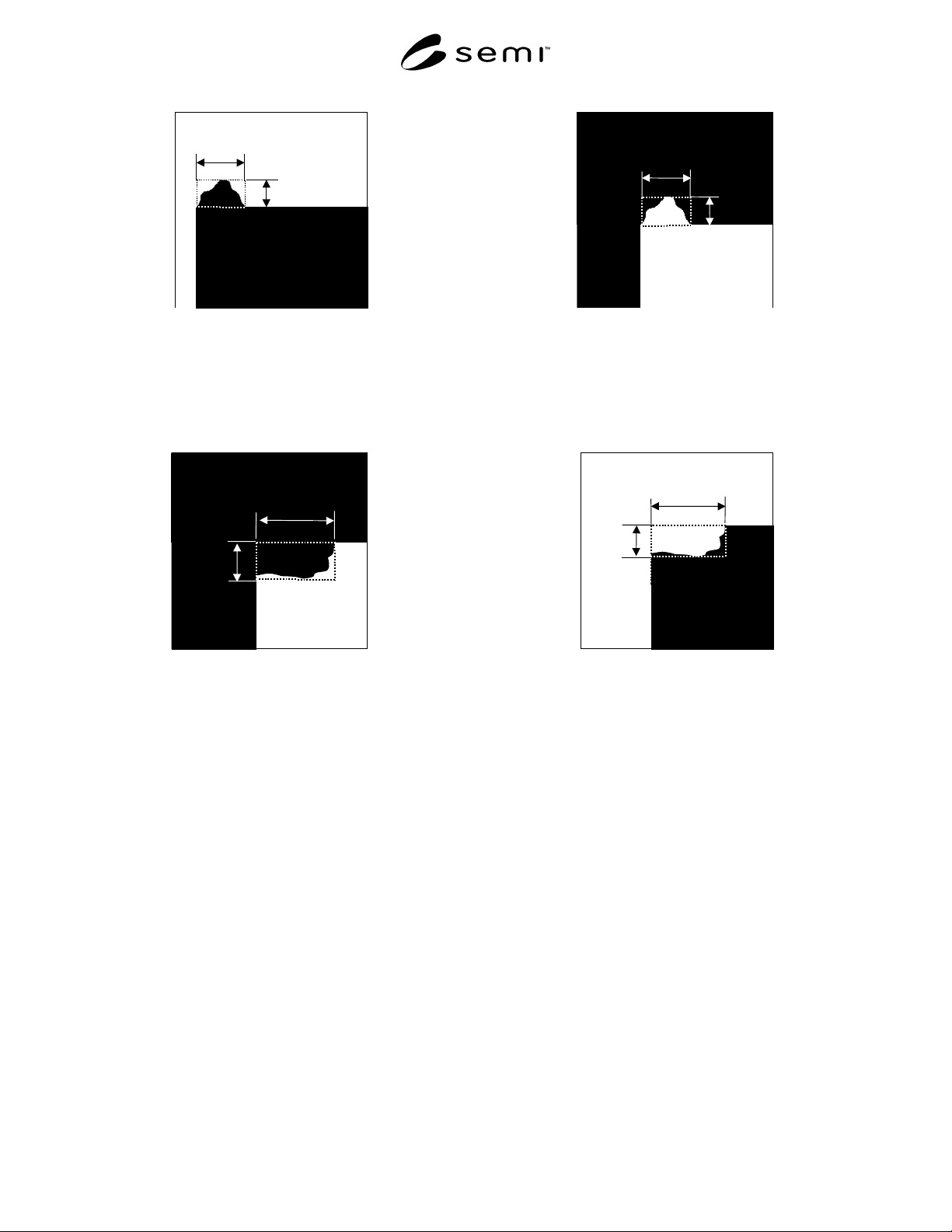

Figure 27 Figure 28
Corner Extension Randomly Shaped Corner Intrusion Randomly Shaped
S1
S2
S2
S1
Figure 29 Figure 30
Corner Extension Randomly Shaped Corner Intrusion Randomly Shaped
