SEMI D22-1103 © SEMI 1999, 2003 1
SEMI D22-1103
TEST METHOD FOR THE DETERMINATION OF COLOR,
TRANSMITTANCE OF FPD COLOR FILTER ASSEMBLIES
This test method was technically approved by the Global Flat Panel Display Committee and is the direct
responsibility of the Japanese Flat Panel Display Committee. Current edition approved by the Japanese
Regional Standards Committee on August 8, 2003. Initially available at www.semi.org October 2003; to be
published November 2003. Originally published September 1999.
NOTICE: This document was completely rewritten in
2003.
1 Purpose
1.1 This standard establishes practices for measuring
selected characteristics of FPD color filters. These
methods are applicable to manufacturing, quality
control, and development operations.
2 Scope
2.1 This method is to be used by FPD color filter
suppliers and users to evaluate quality of products as
well as items under development.
2.2 This method shall be used in general to measure
the color characteristics and transmittance of FPD color
filter.
NOTICE: This standard does not purport to address
safety issues, if any, associated with its use. It is the
responsibility of the users of this standard to establish
appropriate safety and health practices and determine
the applicability of regulatory or other limitations prior
to use.
3 Referenced Standards
3.1 SEMI Standards
SEMI D13 — Terminology for FPD Color Filter
Assemblies
3.2 CIE Standards
1
CIE 1931 — Standard Colorimetric System
(Colorimetry – Official Recommendations of the CIE)
CIE 1976 (L*,a*,b*) — Color Space (Recommend-
ations on Uniform Color Spaces)
NOTICE: Unless otherwise indicated, all documents
cited shall be the latest published versions.
4 Summary of Method
4.1 Turn on the apparatus, and input measurement
parameters.
1 CIE International Commission on Illumination, Kegelgasse 27, A-
1030 Vienna, Austria
4.2 Warm up and stabilize the equipment.
4.3 Measure the reference quantity of light.
4.4 Set the sample on the measuring stage, and adjust
the point of measurement into the measuring spot.
4.5 Measure the sample quantity of light.
4.6 Print the results (color characteristics and
transmittance).
5 Apparatus
5.1 The measurement system shall have the following
specifications.
5.2 Wavelength range: variable between 380 and 780
mm, in increments of < 5nm.
5.3 Measuring area: Measuring spot size or the spot
size of incident beam on the sample surface is smaller
than the sub-pixel to be measured. (for example 2 to 50
micrometer in diameter).
5.4 Sample stage:

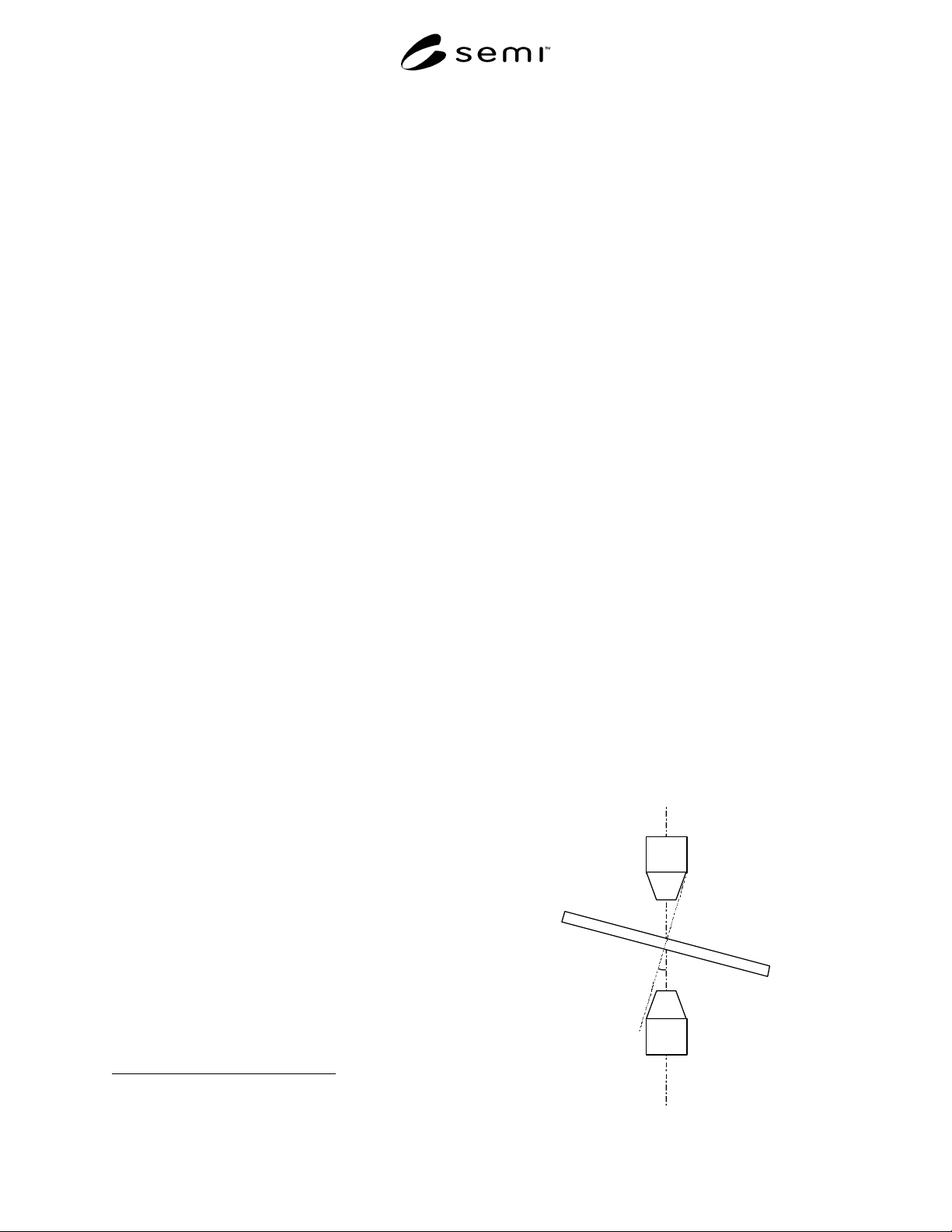

5.4.1 Sample surface can be set normal to the incident
beam. (See Figure 1)
5.4.2 The sample stage shall have a sufficient
mechanical travel to permit measurements within the
color filter area and in the transparent area of the
substrate outside the color filter material.
θ
Phot ometer
li
g
ht sour c
e
color filt er
Fi
g
ure 1
SEMI D22-1103 © SEMI 1999, 2003 2
Figure 1
6 Reference
6.1 Reference quantity of light shall be measured with
a substrate without object layer.
6.1.1 For example, substrates described below can be
adopted for reference.
Ex. A glass substrate for color filter
A glass substrate out of the color filter area
6.1.2 As for the definition of glass substrate, refer to
D13.
7 Calibration
7.1 Calibrate the apparatus in accordance with
manufacture' s instructions.
7.2 Record characteristics of the instrument observed
during this calibration, e.g., linearity, wavelength shift,
etc.
8 Procedure
8.1 Turn on the apparatus and input the measurement
condition parameters.
Condition Wavelength range
Spot size
Gain, Integration time etc.
8.2 Before operation, warm up and stabilize the
equipment for a specified period of time (according to
the instruction manual of the apparatus).
8.3 Measure the reference data (dark quantity of light,
reference quantity of light)
8.4 Set the sample onto the stage and adjust the sample
to the measuring position.
8.5 Measure quantity of light of the sample.
8.6 Record the data.
9 Reporting Results
9.1 The report must contain the following items:
9.1.1 Date of the measurement and operator ID
9.1.2 Manufacturer, model, series of the apparatus, and
the version of the software installed.
9.1.3 Reference material.
9.1.4 Measuring conditions (Wavelength range, Spot
size)
9.1.5 An illustration of the measured points in the
sample.
9.1.6 Color characteristics measurement;
9.1.6.1 Color characteristics
9.1.6.2 Graph
*Refer to the following standard
CIE 1931-x,y
CIE 1976-(L*,a*,b*) or (L*,u*,v*)
9.1.7 Transmittance
9.1.7.1 Graph
Wavelength(X-axis) vs.
Transmittance(Y-axis)
10 Correction Between Different Apparatus
10.1 To compare the data of different apparatus, you
should take care about the apparatus difference.
10.2 To avoid the confusion, exchanging some
common test pieces, and comparing of the measured
data are recommended.
11 Related Documents
11.1 ASTM Standards
2
E179-96 — Standard Guide for Selection of Geometric
Conditions for Measurement of Reflection and
Transmission Properties of Materials.
E1164-02 — Standard Practice for Obtaining
Spectrophotometric Data for Object-Color Evaluation.
E1345-98 — Standard Practice for Reducing the Effect
of Variability of Color Measurement by Use of
Multiple Measurements.
