SEMI E102-0600 © SEMI 2000 52
Factory
Operations
Durable
Management
MTSC AMHS Equipment
Controllers
30: DurableLocationChangedEvent
31: makeManualControl()
32: MaterialLocationStateChangedEvent
35: informJobStateChange(Job TrJob1, previousState JobExecuting, newState JobAborted)
33: JobStateChangedEvent(..previousState JobExecuting, newState JobAborting)
36: removeFinishedJob()
37: JobStateChangedEvent(..previousState JobAborted, newState JobUndefined)
Material Transport Manager
aborts the Job.
34: JobStateChangedEvent(..previousState JobAborting, newState JobAborted)

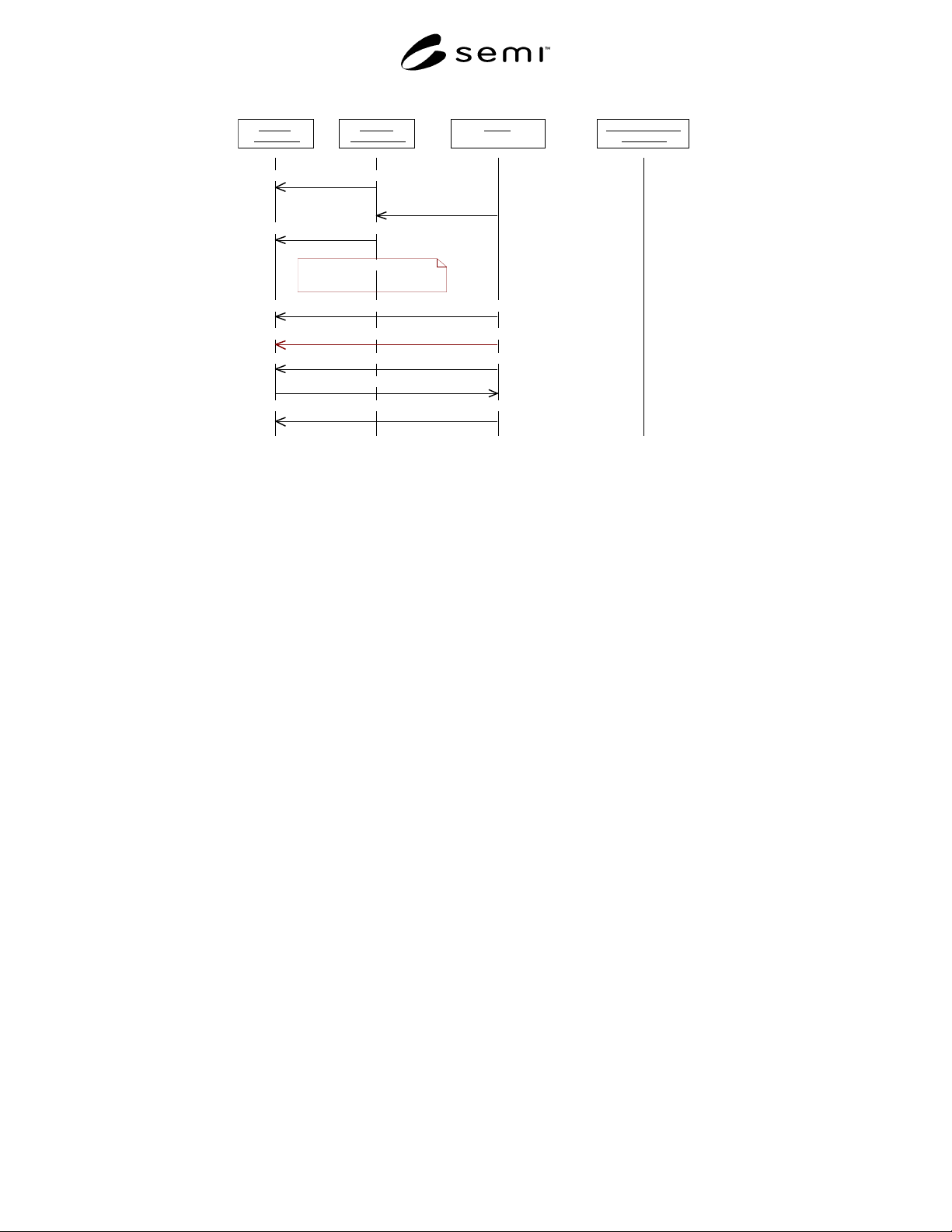

Figure R1-23
Scenario Case 11 (continued)
SEMI E102-0600 © SEMI 200053
R1-2.12 Scenario 12 — Tool to Tool Delivery
MTSC AMHS Equipment
Controllers
Durable
Management
Factory
Operations
MTSC reserves and manages AMHS Equipment Capactiy(internal)
MTSC determines AMHS route(internal)
10: Transfer Command to Agt1(carrier bbb, src. eq.3 Port 1, dest. Stk. 8/Bay_In)(IBSEM)
11: Transfer Command Updates from Agt2 (IBSEM)
14: Transfer Command Complete (IBSEM)
17: Transfer Command to Stk. 2 (carrier bbb, src. Stk. 8/Bay_In, dest. Stk.8 Bay_Out)(StockerSEM)
18: Transfer Command Updates from Stk. 8 (Stocker SEM)
19: Transfer Command Complete (StockerSEM)
20: Transfer Command to Ohs2(carrier bbb, src. Stk. 8/Bay_Out, dest. Stk. 9/Bay_In)(IBSEM)
21: Transfer Command Updates from Ohs2 (IBSEM)
24: Transfer Command Complete (IBSEM)
27: Transfer Command to Stk.4 (carrier bbb, src Stk.9/Bay_In, dest. Stk. 9/Bay_Out) (StockerSEM)
28: Transfer Command Updates from Stk. 9 (StockerSEM)
7: makeInTransit()
12: setMaterialTrackingLocation( MaterialTrackingLocation Agt2)
15: setMaterialTrackingLocation( MaterialTrackingLocation Stk.8)
22: setMaterialTrackingLocation( MaterialTrackingLocation Ohs2)
25: setMaterialTrackingLocation(MaterialTrackingLocation Stk.9)
2: requestJob(Jobtype Transport, Priority 1, Deadline time1, container bbb, SourceMachine eq. 3, SourcePort 1, DestinationMachine eq. 5, Destination Port 1)
3: Return Job Handle TrJob1
6: informJobStateChange(Job TrJob1, previousState JobQueued, newState JobExecuting)
13: DurableLocationChangedEvent
16: DurableLocationChangedEvent
23: DurableLocationChangedEvent
26: DurableLocationChangedEvent
8: MaterialLocationStateChangedEvent
MTSC determines relay
priorty(internal)
1: setUnit(unitbvalue)
4: JobStateChangedEvent(..previousState JobUndefined, newState JobQueued)
5: JobStateChangedEvent(..previousState JobQueued, newState JobExecuting)
9: getUnit()

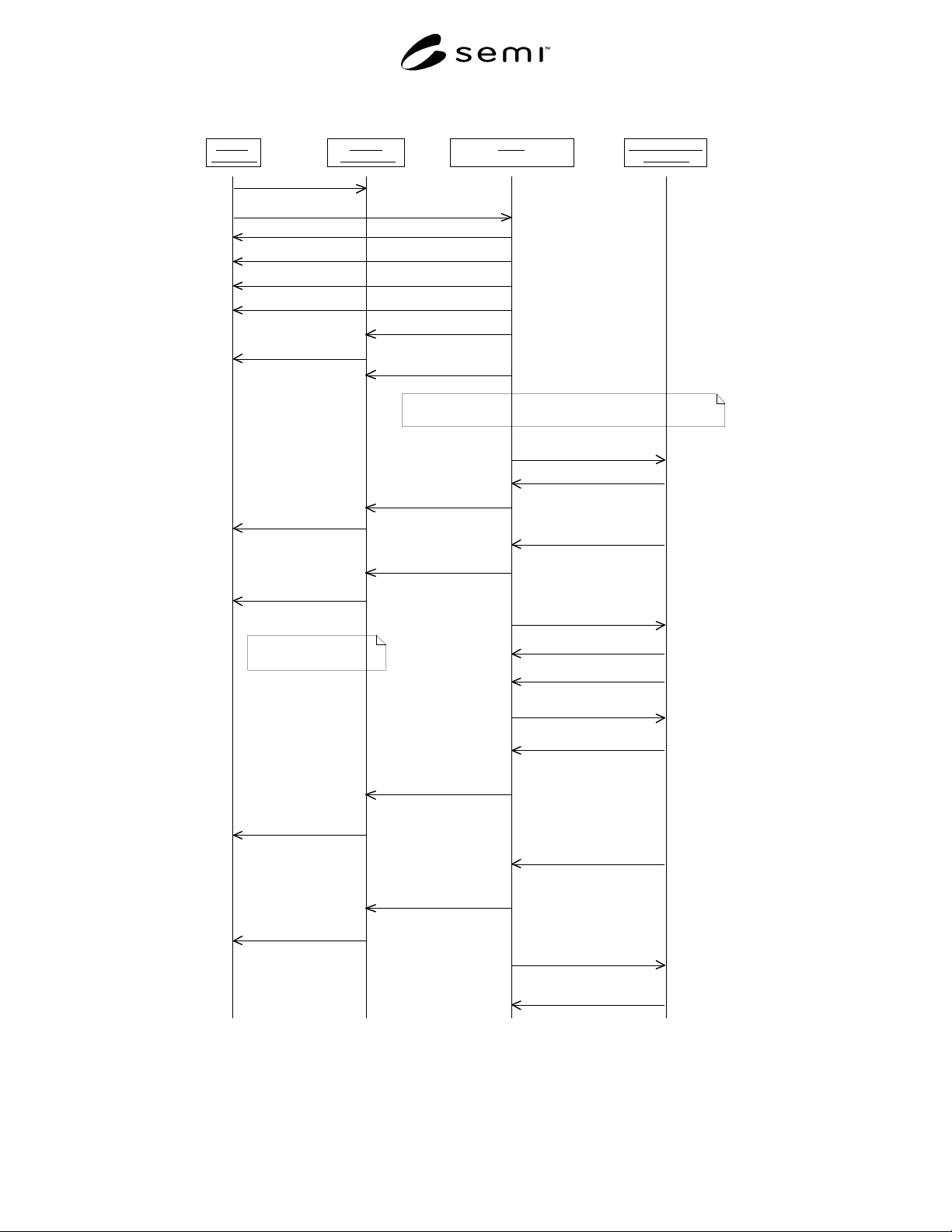

Figure R1-24
Scenario Case 12
SEMI E102-0600 © SEMI 2000 54
MTSC AMHS Equipment
Controllers
Durable
Management
Factory
Operations
29: Transfer Command Complete (StockerSEM)
30: Transfer Command to Oht1 (carrier bbb, src. Stk. 9/Bay_Out, dest. Eq5 Port 1)(IBSEM)
31: Transfer Command Updates from Oht1 (IBSEM)
34: Transfer Command Complete (IBSEM)
32: setMaterialTrackingLocation(MaterialTrackingLocation Oht1)
35: setMaterialTrackingLocation(MaterialTrackingLocation Eq5)
40: informJobStateChange(Job TrJob1, previousState JobExecuting, newState JobCompleted)
33: DurableLocationChangedEvent
36: DurableLocationChangedEvent
38: MaterialLocationStateChangedEvent
37: makeProcessing()
39: JobStateChangedEvent(..previousState JobExecuting, newState JobCompleted)
41: removeFinishedJob()
42: JobStateChangedEvent(..previousState JobExecuting, newState JobUndefined)

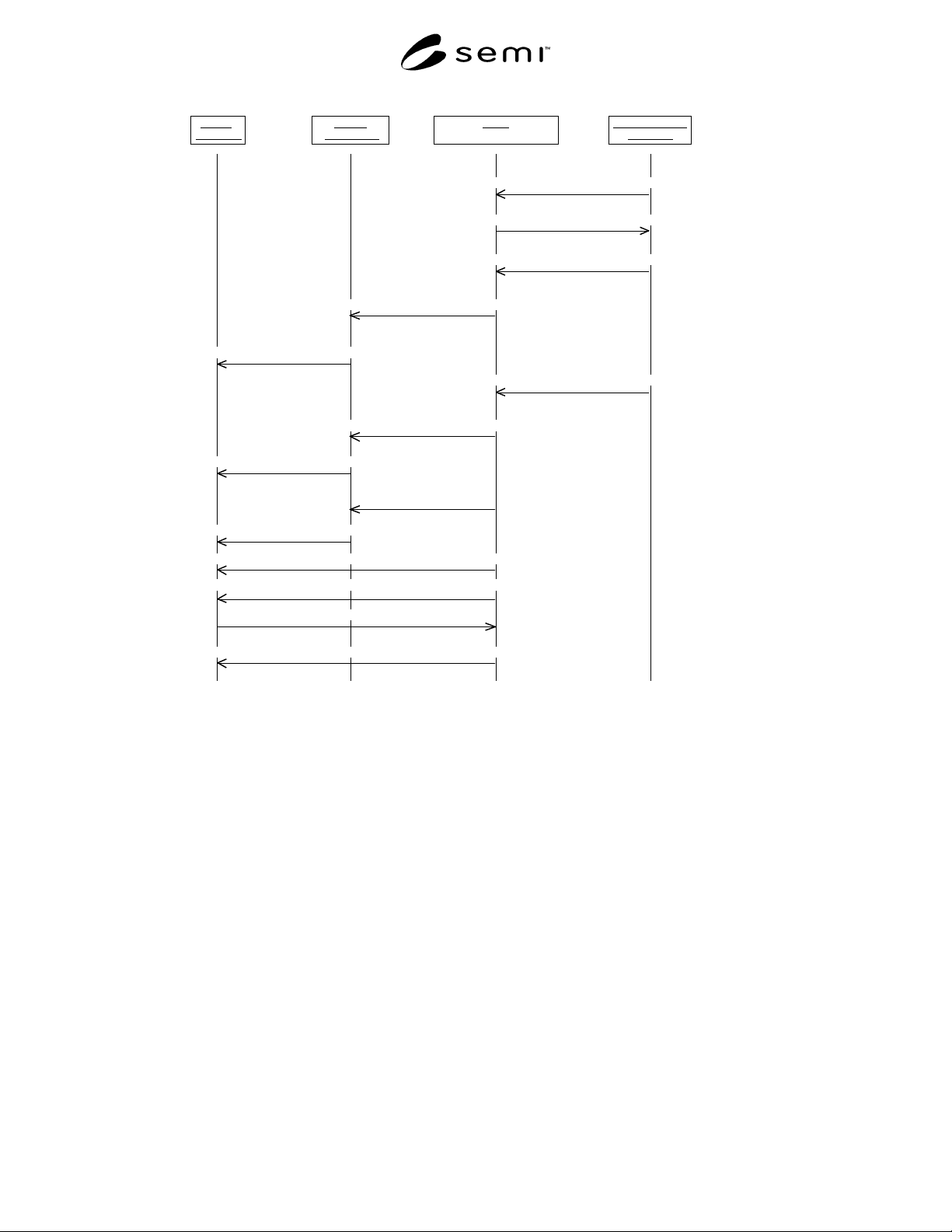

Figure R1-25
Scenario Case 12 (continued)
