SEMI E134-0305 © SEMI 2004, 2005 29 Operation No Privilege ManageOnly- AuthoredDCPs UseAnyDCP ManageAny-DCP GetCurrentPerformanceStatus Equipment shall reject request with Unauthorized-Operation. No restriction. No restr…

100%1 / 7923
SEMI E134-0305 © SEMI 2004, 2005 28
Operation No Privilege ManageOnly-
AuthoredDCPs
UseAnyDCP ManageAny-DCP
ActivatePlan Equipment shall reject
request with
Unauthorized-Operation.
Equipment shall
accept only requests
for plans defined by
the requesting
consumer, and built-
in plans. Requests
for all other plans
shall be rejected with
Unauthorized-
Operation.
Equipment shall
accept requests for
any plan defined on
the equipment,
including built-in
plans and plans
defined by other
consumers.
Equipment shall
accept requests for
any plan defined on
the equipment,
including built-in
plans and plans
defined by other
consumers.
GetActivePlanIds Equipment shall reject
request with
Unauthorized-Operation.
Equipment shall
return only the
DCPActivated
information for plans
activated by the
requesting consumer
(see Section
9.1.2.8.4). If a plan
activated by the
requesting consumer
is also active for
other consumers, the
equipment shall not
return the
DCPActivated
information for those
other consumers.
Equipment shall
return only the
DCPActivated
information for
plans activated by
the requesting
consumer (see
Section 9.1.2.8.4).
If a plan activated
by the requesting
consumer is also
active for other
consumers, the
equipment shall not
return the
DCPActivated
information for
those other
consumers.
Equipment shall
return all
DCPActivated
information for all
plans activated by
all consumers (see
Section 9.1.2.8.4).
DeactivatePlan Equipment shall reject
request with
Unauthorized-Operation.
Equipment shall
accept only requests
to deactivate plans
activated by the
requesting consumer.
Requests for all other
plans shall be
rejected with
Unauthorized-
Operation.
Equipment shall
accept only requests
to deactivate plans
activated by the
requesting
consumer. Requests
for all other plans
shall be rejected
with Unauthorized-
Operation.
Equipment shall
accept requests to
deactivate any
plan(s) activated by
any consumer(s).
DeletePlan Equipment shall reject
request with
Unauthorized-Operation.
Equipment shall
accept only requests
to delete plans
defined by the
requesting consumer.
Requests for all other
plans, including
built-in plans, shall
be rejected with
Unauthorized-
Operation.
Equipment shall
accept only requests
to delete plans
defined by the
requesting
consumer. Requests
for all other plans,
including built-in
plans, shall be
rejected with
Unauthorized-
Operation.
Equipment shall
accept requests to
delete any plan
defined by any
consumer.
Equipment shall
reject requests to
delete built-in plans
with Unauthorized-
Operation.
GetParameterValues Equipment shall reject
request with
Unauthorized-Operation.
No restriction. No restriction. No restriction.
GetObjTypeInstanceIds Equipment shall reject
request with
Unauthorized-Operation.
No restriction. No restriction. No restriction.
SEMI E134-0305 © SEMI 2004, 2005 29
Operation No Privilege ManageOnly-
AuthoredDCPs
UseAnyDCP ManageAny-DCP
GetCurrentPerformanceStatus Equipment shall reject
request with
Unauthorized-Operation.
No restriction. No restriction. No restriction.
11 Data Collection Plan Definition
11.1 DataCollectionPlan

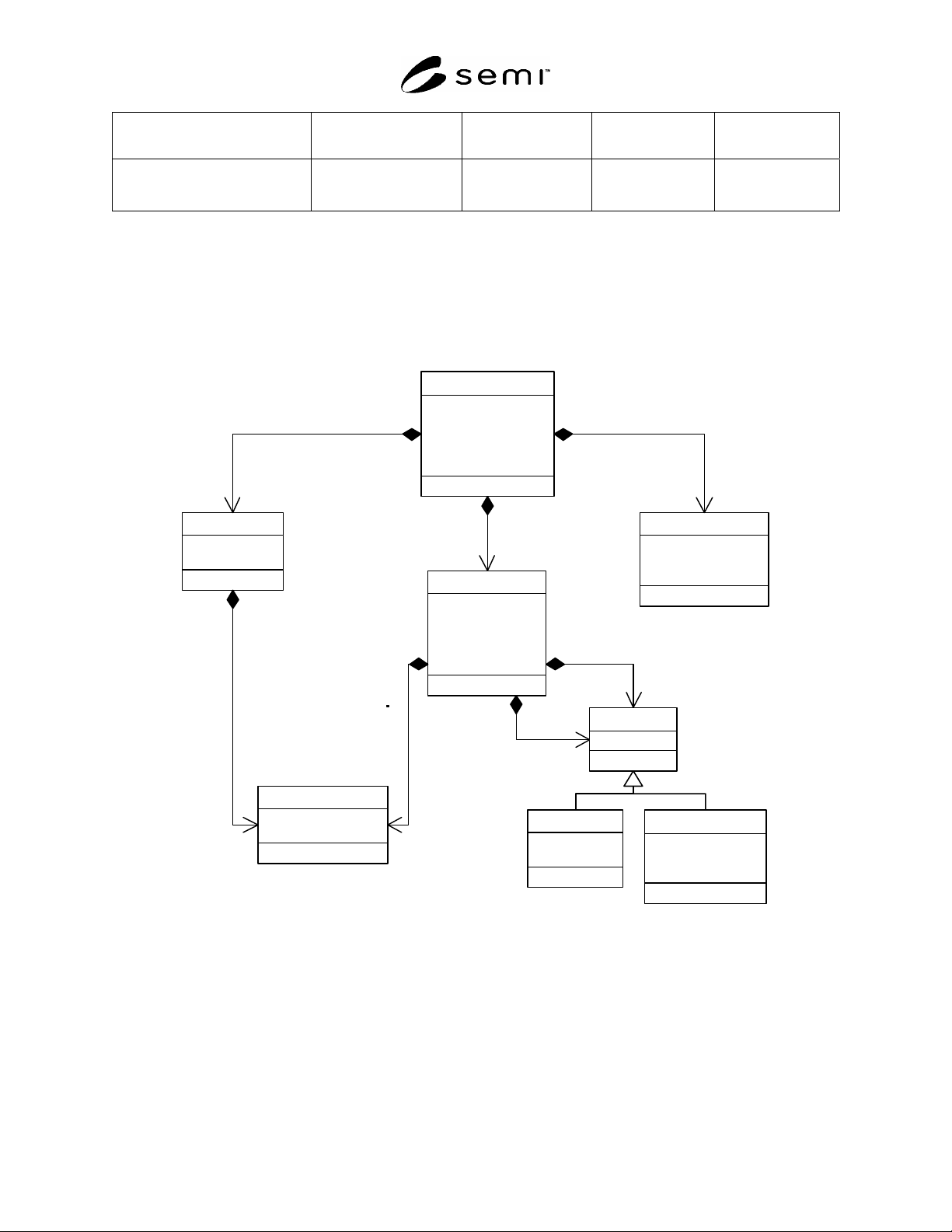

11.1.1 Figure 19 illustrates how a data acquisition consumer can specify to the equipment what data should be
reported for a specific plan.
id
name
desc ript ion
intervalInMinutes
isPersist ent
DataCollectionPlan
sourceId
eventId
EventRequest
eventRequests
1
0..*
id
interv alInSeconds
collectionCount
groupSize
is Cy clical
TraceRequ est
traceReques ts1
0..*
sourceId
exc eptionId
severity
Excep tionRequest
ex ceptionRequest s
1
0..*
sourceId
paramet erName
ParameterRequest
paramet erReques ts
1
1.. *
paramet erReques ts1
0..*
s ourceI d
eventId
Even tTrigger
startOn
1
0..*
stopOn1
0..*
Trigger
sourceId
exceptionId
exceptionStat e
Excepti on Tri g ger
{ordered}
{ordered}
Figure 19
Data Collection Plan
11.1.2 DataCollectionPlan — A data collection plan has a consumer-defined (or supplier-defined, in the case of
built-in DCPs) name and id, and acts as a container for classes that describe what trace data, exceptions, and events
are to be reported to the consumer, as well as any buffering policy for the plan.
11.1.2.1 Built-in DCPs — Equipment suppliers may provide pre-defined DCPs that are included with the
equipment, and don’t require definition by a consumer. Such DCPs shall be defined according to the format
specified in this section, and are referred to as “built-in” DCPs. Built-in DCPs can be activated and viewed by any
SEMI E134-0305 © SEMI 2004, 2005 30
consumer with sufficient privilege (see Section 10) using the DataCollectionManager’s ActivatePlan and
GetPlanDefinition operations, respectively. Built-in DCPs cannot be deleted by any consumer.
11.1.2.2 DataCollectionPlan Attribute Definition Table
Table 41 DataCollectionPlan Attribute Definition
Attribute Name Definition Form
name Consumer-defined (or supplier-defined, in the
case of built-in DCPs) human-readable name
for the DCP.
Text.
id Consumer-defined (or supplier-defined, in the
case of built-in DCPs) unique identifier for the
DCP.
Text, unique across all DCP definitions on the
equipment, formatted according to the ISO
11578:1996 definition of UUID.
description Consumer-defined (or supplier-defined, in the
case of built-in DCPs) description of the
purpose of the DCP.
Text.
intervalInMinutes The preferred number of minutes for which the
equipment shall buffer all data described by the
plan.
Positive integer 0. See Section 11.1.2.3 for
further explanation.
isPersistent Whether or not the DCP, once activated, shall
remain activated across equipment shutdowns.
Boolean. See behavior defined in Section
12.1.5.
11.1.2.3 intervalInMinutes
11.1.2.3.1 If the value of this field is zero, events and exceptions contained in the plan shall be reported to the
consumer when they occur, and trace reports contained in the plan shall be reported according to their individual
buffer settings (see the description of the TraceRequest type in Section 11.1.5).
11.1.2.3.2 If the value of this field is greater than zero, upon activation of the DCP, any exceptions, events, or traces
defined in the plan that occur during this time span shall be buffered on the equipment in the order that they occur.
Buffered data shall be reported at the end of the interval, or when the equipment’s buffering capacity for the
currently active DCPs is reached, whichever is sooner. After each interval expires, the equipment shall begin
buffering new data for the next interval, again sending the results when the interval expires (or buffering capacity is
reached). Each result sent shall contain only the data collected during that interval. The equipment shall continue
this buffering/sending cycle as long as the DCP is active.
11.1.2.3.3 All data sent is formatted using the DataCollectionReport format described in Section 14.1.1.1.
11.1.2.4 DataCollectionPlan Association Definition Table
Table 42 DataCollectionPlan Association Definition
Association Role Name Definition Comments
eventRequests A set of events that the consumer is requesting to
be reported for this plan.
List of structured data, of type EventRequest,
described in Section 11.1.3.
exceptionRequests A set of exceptions that the consumer is
requesting to be reported for this plan.
List of structured data of type ExceptionRequest,
described in Section 11.1.4.
traceRequests A set of trace data collection activities that the
consumer is requesting to be reported for this
plan.
List of structured data of type TraceRequest,
described in Section 11.1.5.
