SEMI E125-0305 © SEMI 2003, 2005 40
R1-3.2 Retrieve SEMIObjType Descriptions — This use case provides a way for an application to request a
description of all of the SEMI standard OSS ObjTypes supported by the equipment. This supports automated usage,
so that applications that are written to work with OSS ObjTypes can discover which ObjTypes are in use on a
specific equipment installation, and can learn the event id’s that the supplier uses for standardized state transitions.

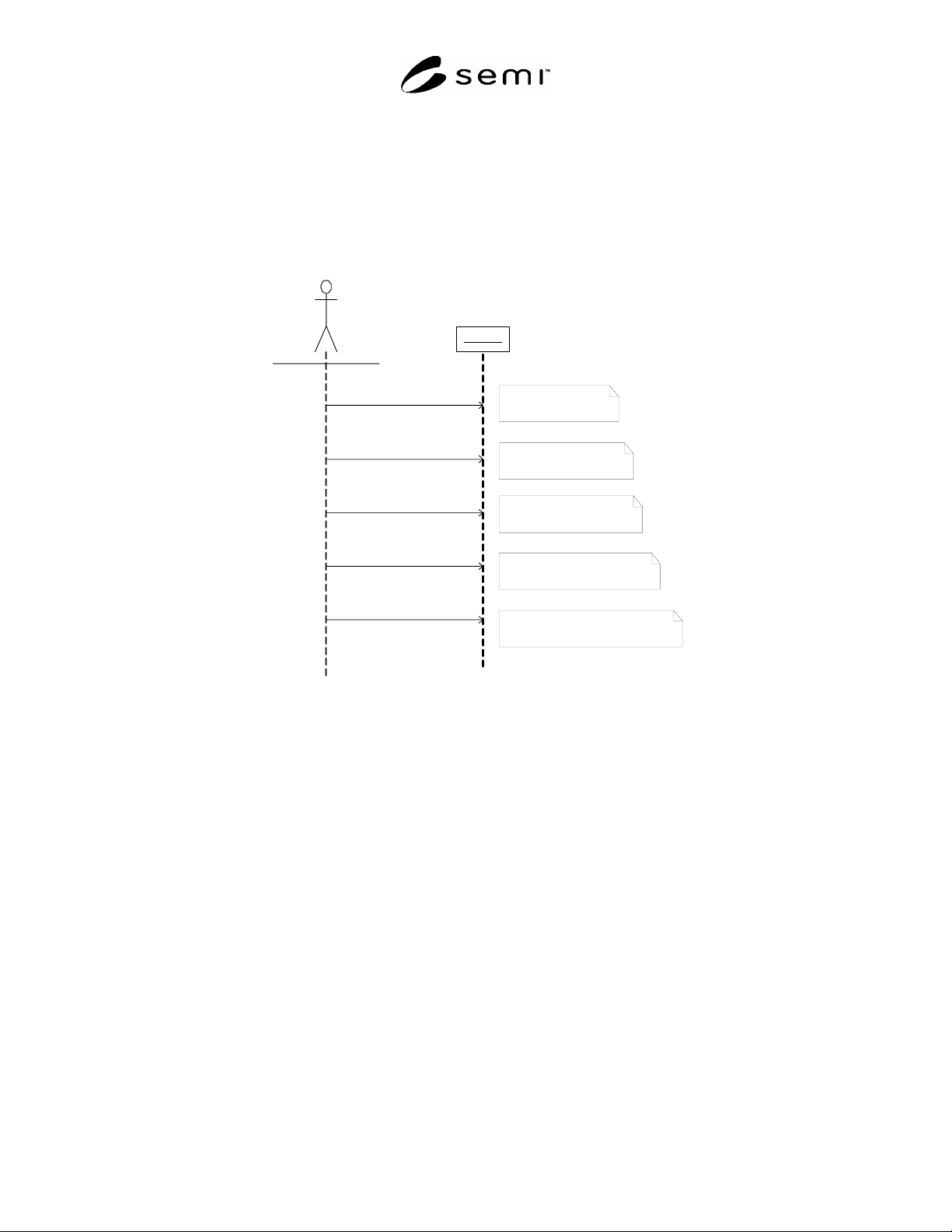

Figure R1-3 shows one example of how this use case can be realized using messages from the interface defined in
this specification (see Section 9).
: Proc essC on trolClient
Equ ipme nt
GetStateMachines()
GetSEMIObjTypes()
GetEquipmentNodeDescriptions()
GetTypes()
GetUnits()
Get all state mac hine def initions in u se by equipment,
look for state machines specific to the ObjTypes of
interest, and determine the supplier-specific event id's
Get all ObjTypes in u se by t he equipment,
look for the ObjTypes of interest, and their
associate d at tribut es.
Get all eq uipm ent node s, d et ermine
which nodes provide the ObjTypes
of interest
Get all type d ef init ions in us e
by the equipme nt , l ook for the
ty pe definitions us ed by ObjType
attribut es.
Get all unit s in use
by the equipme nt , l ook for the
units ref erred to by the ObjType
attribut es
Figure R1-3
Use Case Realization for “Retrieve ObjType Descriptions”
SEMI E125-0305 © SEMI 2003, 2005 41
R1-3.3 Retrieve Exception Descriptions — This use case provides a way for an application to request a description
of all of the exceptions generated by the equipment, and to determine which components of the equipment generate
which exceptions. This supports automated usage, so that applications that are looking for standardized or well-
known equipment specific exceptions can discover their existence on a specific tool. It also supports any manual

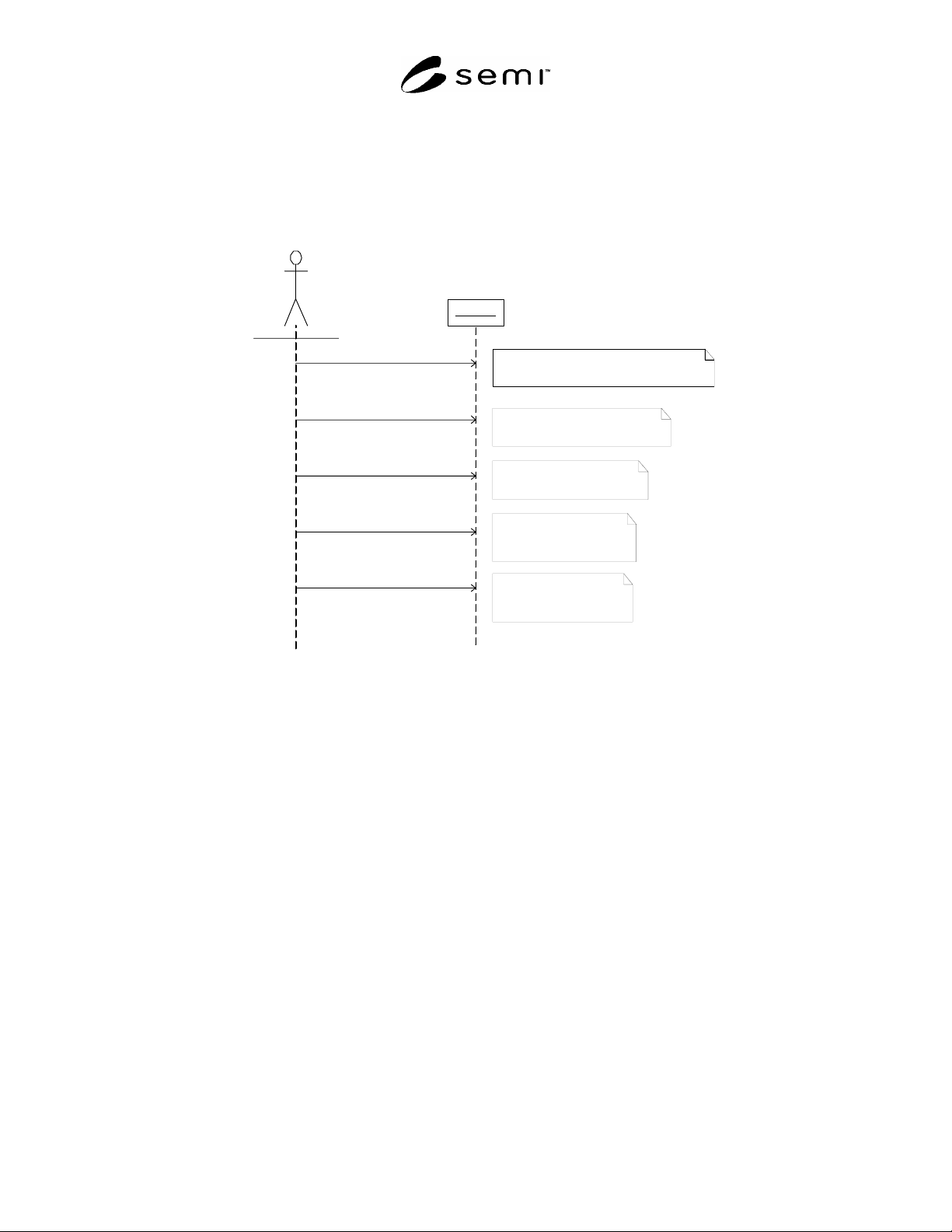

usage in which a human user would like to understand available equipment-specific exceptions. Figure R1-4 shows
one example of how this use case can be realized using messages from the interface defined in this specification (see
Section 9).
: EquipmentD iagnost icsClient
Equipm ent
GetExceptions()
GetT ypes ()
GetUnits()
GetEquipment NodeDes cript ions()
GetEquipment Struc ture()
Get all except ion def init ions
in use by the e quipment
Get all ty pe def initions in use by
the equipment, look for types
us ed by ex ception parameters.
Get all unit definitions , determine
unit s used by exc eptio n parameter
type definit ions
Get all equipm ent nodes, det ermine t he
nodes prov iding the ex ceptions of
interest
Get th e equipm ent structure to und erstand
the rol e of each equipment node in t he overall
equipm ent struct ure
Figure R1-4
Use Case Realization for “Retrieve Exception Descriptions”
SEMI E125-0305 © SEMI 2003, 2005 42
R1-3.4 Retrieve Equipment Parameter Descriptions — This use case provides a way for an application to request a
description of all of the data items provided by the equipment, and to determine which components of the equipment
provide that data. This supports automated usage, so that applications that are looking for standardized or well-
known equipment-specific data items can discover their existence on a specific tool. It also supports any manual
usage in which a human user would like to browse and understand equipment-specific data that has not been
standardized. Figure R1-5 shows one example of how this use case can be realized using messages from the
interface defined in this specification (see Section 9).
: Proc essC ontrolC lient
Equipment
GetEquipmentNodeDescriptions()
GetTypes()
GetUnits()
GetEquipmentStructure()
Get all equipment nodes, look for
parameters def ined for each node
Get all type definitions in use by
this equipment, look for types
used by parameters
Get all unit definitions, determine
used by parameter ty pe definitions
Get the equipment structure to
underst and the role of eac h equipment
node in the overall equipment st ruct ure
Figure R1-5
Use Case Realization for “Retrieve Equipment Parameter Descriptions”
