SEMI E139.1-0705 © SEMI 2005 3
6 Conventions
6.1 This section discusses the conventions used in this specification for translating UML to XML and for
documenting the XML. These conventions are heavily influenced by the SEMI E121 Guide for Style & Usage of
XML for Semiconductor Manufacturing Applications.
6.2 The reader is expected to have a working knowledge of the UML, XML, and Schema specifications (See ¶4.2
and ¶4.3). This document does not provide tutorial information on these subjects.
6.3 Translating UML to XML
6.3.1 This document follows the guidelines for XML as outlined in SEMI E121 “Guide For Style & Usage of XML
for Semiconductor Manufacturing Applications”.
6.3.2 Some of the key guidelines in this specification are summarized here:
Attributes of a class are generally represented as elements such that they can be easily extended by other
applications.
Inheritance is modeled as element extension.
Compositions always turn into contained elements (or contained collections if multiples are allowed).
Associations and Aggregations are modeled as contained elements or arrays wherever possible to simplify the
instance model.
6.3.3 The translation of a UML class to XML is documented using a table format illustrated by Table 1. Note that
the PDE model in SEMI E139 does not include services, so only attribute and association representations are
addressed here. Any superclass information is addressed in the text and the diagrams.
6.4 Translation Table Column Header Description
Attribute or Role Name — If an attribute, the name of the attribute is placed here. If an association (including
aggregation or composition), the role name from the UML diagram is placed here. Compositions are often not
assigned role names. In that case “none” is placed here.
UML Type — If an attribute, the data type of the UML attribute is placed here. If an association, the type of
association is placed here. The possible types are “Composition”, “Aggregation”, or the basic “Association”.
UML defines these three types of association.
XML Element or Attribute — Lists the type of XML construct used to represent the UML attribute or
association.
XML Name/Type — Provides the name and data type of the resulting XML construct. The type may be a
built-in type (for example, xs:string), or a named type defined within the XML schema.
Table 1 Example Translation Table
Attribute or Role Name UML Type XML Element or Attribute XML Name/Type
friend association element Friend: HumanReferenceArray
employees aggregation element Employees: HumanArray
family composition element Family: HumanArray
name string element Name: xs:string
6.5 Documenting The XML With Diagrams
6.5.1 This document provides graphical representations of the included XML. Although no standard graphical
notation for XML could be found, various XML tools have their own notation. This document will use the notation
provided by XMLSPY® from Altova Corporation
1
. There is no requirement for use of XMLSPY® in order to
1 All images/graphics were created using Altova’s XMLSPY®. Copyright 2003 Altova GmbH and reprinted with permission of
Altova.
SEMI E139.1-0705 © SEMI 2005 4
comply with this specification. Figure 1 shows a sample XML diagram that will be used to provide a basis for
explanation of the XML graphical notation used in the rest of the document.
6.5.2 In the diagram, rectangular boxes represent XML elements. Ownership or containment is read from right to
left in the diagrams. In the sample diagram, ParentType contains Child1, Child2, Child 3, and Child 4. In turn,
Child2 contains Child2a, Child2b, and Child2c. The additional symbols (8-sided boxes) represent sequences or
choices. See Table 2 for an explanation of these symbols.
6.5.3 Please note that “element”, “sequence”, “all”, and “choice” are XML terms (see the W3C standards
referenced in ¶4.3).

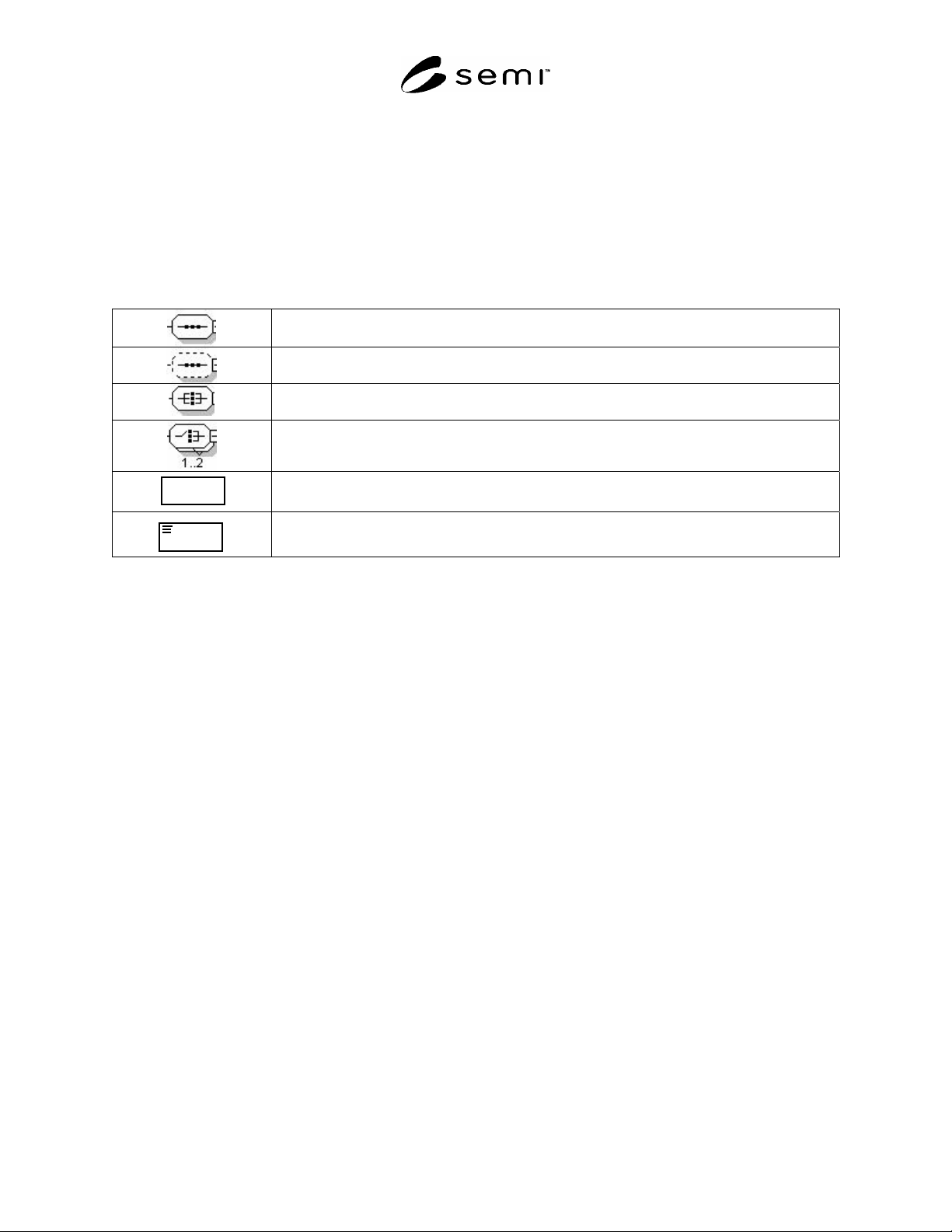

Table 2 Altova XMLSPY® Schema Diagram Symbols
Denotes a required ordered sequence of the right hand elements with a cardinality of one
for each element. (sequence)
Denotes an optional ordered sequence of the right hand elements with a cardinality of one
for each element. (sequence)
Denotes a required, but unordered, sequence of the right hand elements with a cardinality
of one for each element. (all)
Denotes a required choice of the right hand elements. Exactly one or two of the right
hand elements must be present. (choice)
Name
Denotes an element. Optional element if outline is dashed line.
NameName
Denotes an element that contains parsed character data.
6.5.4 A graphic using a solid line is a required element; using a dashed line represents an optional element.
Numbers or ranges in the lower right hand corner represent cardinality. The default cardinality is one.
6.5.5 To simplify a diagram or help focus on a particular aspect, detail may be hidden. The 8-sided symbols have a
small square on the right end. If a minus sign “-“ is in the box, then all detail is shown. If the box contains a plus
sign “+”, then all detail to the right of that symbol is hidden. The example has no hidden detail.
SEMI E139.1-0705 © SEMI 2005 5

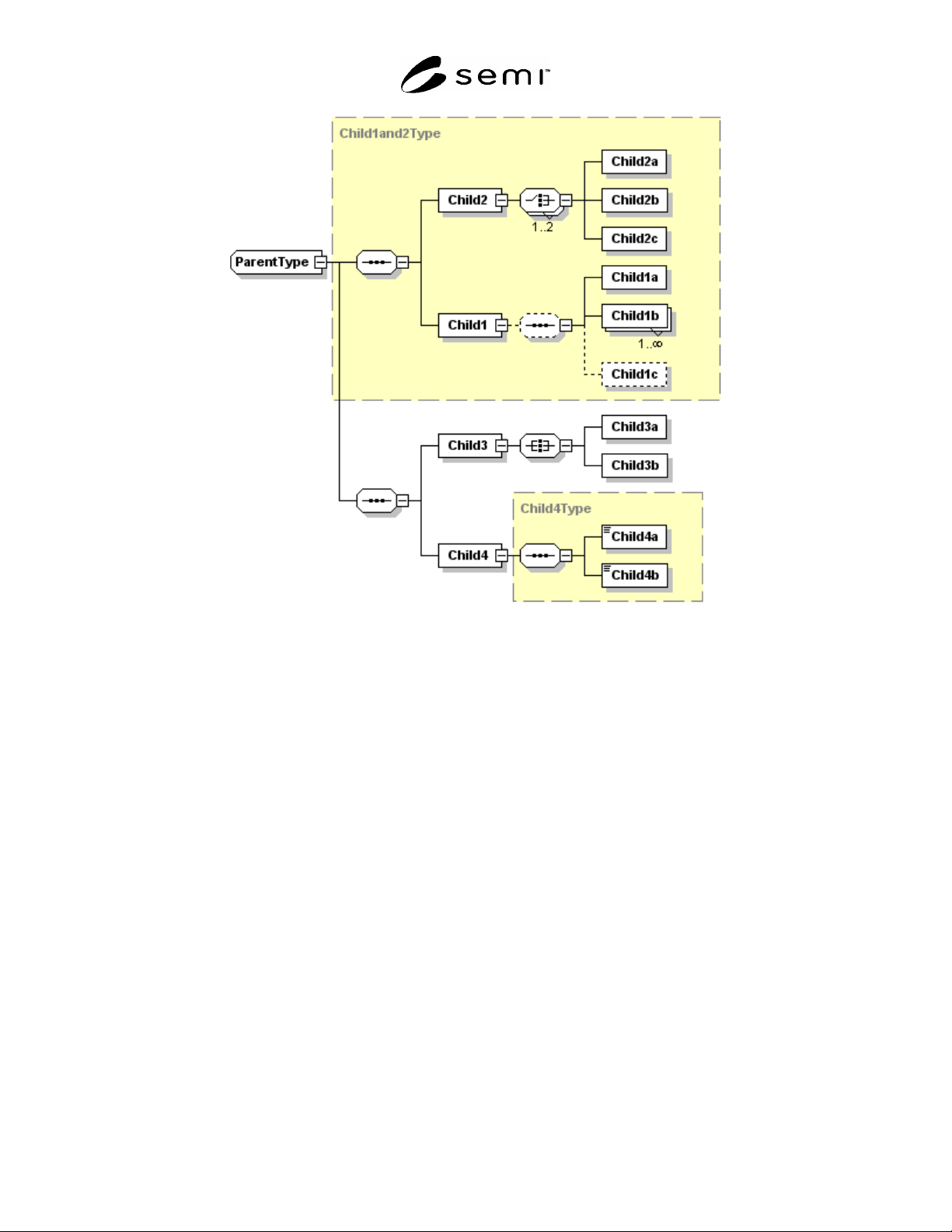

Figure 1
XML Example Diagram
6.5.6 The yellow (or gray if printed in monochrome) boxes indicate the use of other defined types. So, Child4 is of
type “Child4Type”. Child4Type defines Child4a and Child4b. This detail may be hidden in the diagram. Object
oriented inheritance is typically represented in XML as type extension. In Figure 1, ParentType extends
Child1and2Type by adding a sequence that includes Child3 and Child4.
6.5.6.1 Reading Figure 1 would yield the following additional information:
Child1and2Type is an ordered sequence of two items: Child2 and Child1.
Child1 contains an optional ordered sequence of Child1a, one or more Child1b, and (optionally) Child1c.
Child2 contains a choice of one or two of the following: Child2a, Child2b, and Child2c.
Child3 contains an unordered sequence of Child3a and Child3b.
6.5.7 XML Schema Sample
6.5.7.1 The sample XML for the example shown in Figure 1, is presented below. Refer to the XML documentation
referenced in ¶4.3 for a complete description of the syntax and semantics of XML schemas.
