SEMI E125.1-0305 © SEMI 2005 32

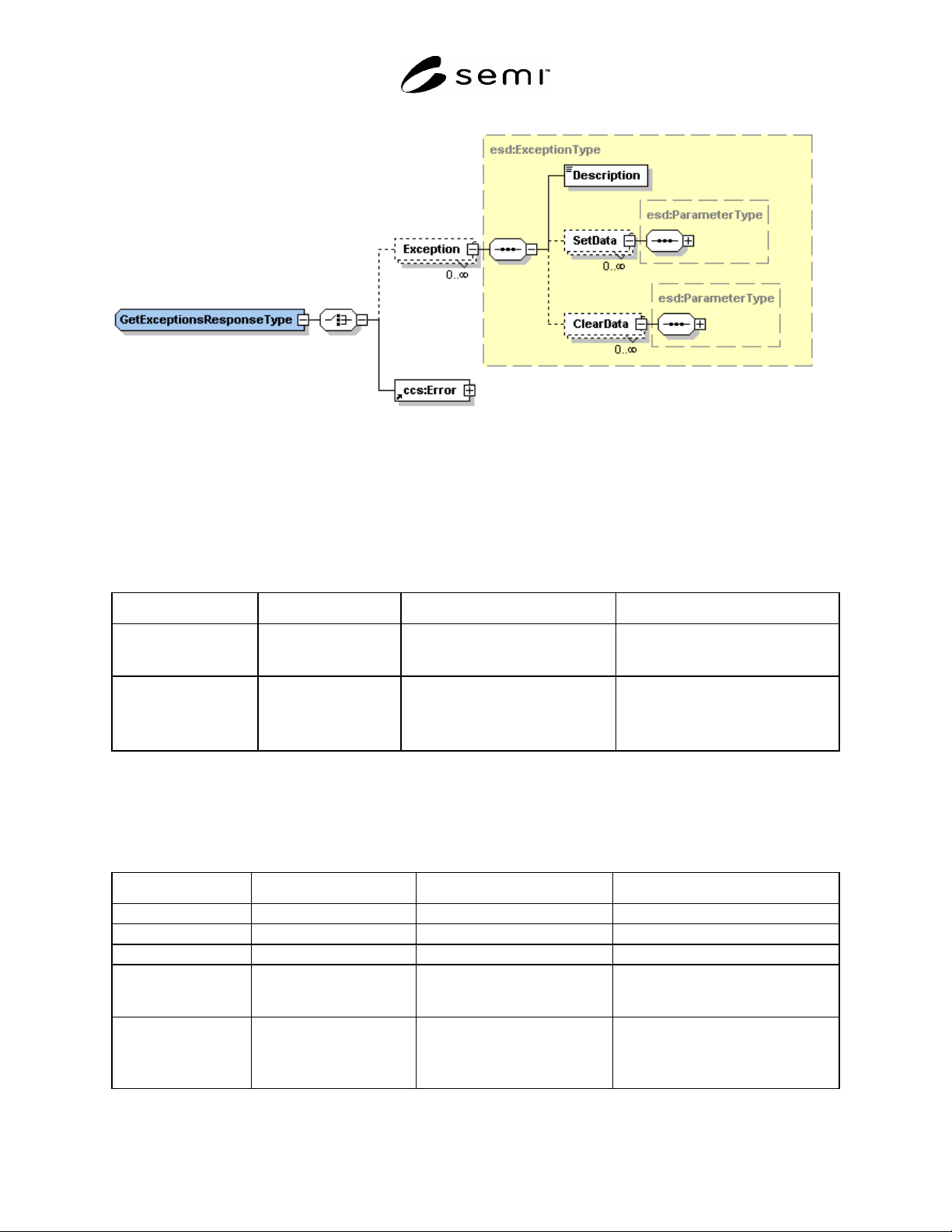

Figure 22
GetExceptionsResponse Global Element
7.2.12.5.2 GetExceptionsResponse — This global element acts as a top-level container entity representing the
SOAP body of the response to an SEMI E125 GetExceptions request. It contains either zero or more elements
named “Exception” of complexType “ExceptionType” or an element named “Error” of complexType “ErrorType”,
defined in SEMI E138.
Table 60 Translation Table for Output Arguments for the GetExceptions Operation
Argument Name Format XML Element or Attribute XML Name/Type
exceptions Unordered list of
elements of type
Exception
Element Exception: esd:ExceptionType (zero
or more)
error Structured data, of type
Error, defined in SEMI
E138
Element Error: ccs:ErrorType
No SEMI E125-specific error codes
are defined for this operation.
7.2.12.5.3 ExceptionType — This global complexType is the XML Schema representation of the SEMI E125
Exception class. The “setData” and “clearData” associations to Parameters in SEMI E125 are modeled using zero
or more elements of type “ParameterType” (see ¶7.2.14.5.4).
Table 61 SEMI E125 Exception
ExceptionType Translation Table
Attribute or Role Name UML Name/Type XML Element or Attribute XML Name/Type
id text attribute id: xsd:string
description text element Description: xsd:string
severity text attribute severity: xsd:string
setData Ordered list of zero or more
elements of type Parameter
element SetData: esd:ParameterType (Zero or
more, see ¶7.2.14.5.4 for a description
of the ParameterType complexType.)
clearData Ordered list of zero or more
elements of type Parameter
element ClearData: esd:ParameterType
(zero or more, see ¶7.2.14.5.4 for a
description of the ParameterType
complexType)
SEMI E125.1-0305 © SEMI 2005 33
7.2.13 GetEquipmentStructure
7.2.13.1 This section is provisional, pending approval of SEMI E132.1, SEMI E138, and SEMI E120.1.
7.2.13.2 WSDL Operation Binding
7.2.13.2.1 See the operation binding for “GetEquipmentStructure” in E125-1-V0305-EqpMetadataMgr-
Binding.wsdl. Key information is shown for convenience in the following table.
Table 62 GetEquipmentStructure Operation Binding
SOAPAction
urn:semi-org:ws.E125-1.V0305.esdMetaEqp-
binding:GetEquipmentStructure
Input Headers (WSDL Message, Required) E132HeaderMessage, required
Output Headers (WSDL Message, Required) E132HeaderMessage, required
7.2.13.3 WSDL PortType Operation
7.2.13.3.1 See the portType operation definition for “GetEquipmentStructure” in E125-1-V0305-EqpMetadataMgr-
PortType.wsdl. Key information is shown for convenience in the following table.
Table 63 GetEquipmentStructure PortType Operation
Input Message Name GetEquipmentStructureRequestMessage
Output Message Name GetEquipmentStructureResponseMessage
7.2.13.4 WSDL Message(s)
7.2.13.4.1 See the message definitions for “E132HeaderMessage”, “GetEquipmentStructureRequestMessage”, and
“GetEquipmentStructureResponseMessage” in E125-1-V0305-EqpMetadataMgr-PortType.wsdl. Key information
is shown for convenience in the following table.
Table 64 EquipmentMetadataManager Binding
Message Name
Schema
Element Name
E132HeaderMessage auth:E132Header
GetEquipmentStructureRequestMessage esd: GetEquipmentStructureRequest
GetEquipmentStructureResponseMessage esd: GetEquipmentStructureResponse
7.2.13.5 XML Schema Types

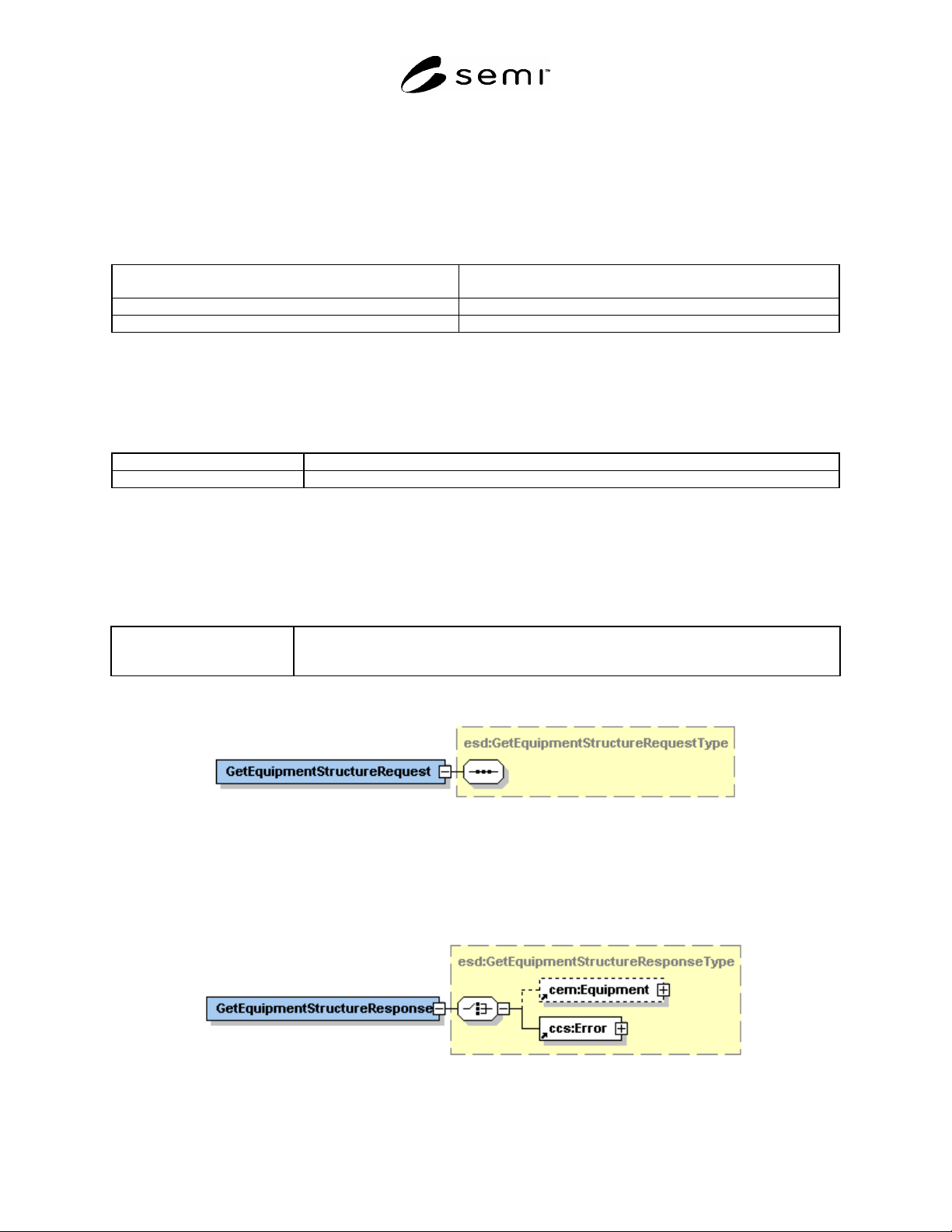

Figure 23
GetEquipmentStructureRequest Global Element
7.2.13.5.1 GetEquipmentStructureRequest — This global element acts as a top-level container entity representing
the SOAP body of a GetEquipmentStructure request. As defined in SEMI E125, this operation has no input
arguments, so the element has no contents.
Figure 24
GetEquipmentStructureResponse Global Element
SEMI E125.1-0305 © SEMI 2005 34
7.2.13.5.2 GetEquipmentStructureResponse — This global element acts as a top-level container entity representing
the SOAP body of the response to an E125 GetEquipmentStructure request. It contains either an element named
“Equipment” of complexType “EquipmentType” as defined in SEMI E120.1, or an element named “Error” of
complexType “ErrorType”, defined in SEMI E138.
Table 65 Translation Table for Output Arguments for the GetEquipmentStructure Operation
Argument Name Format XML Element or Attribute XML Name/Type
equipmentStructure Structured data, of a
type derived from the
E120 type
EquipmentElement, that
represents the
equipment as a whole
element Equipment: cem:EquipmentType
error Structured data, of type
Error, defined in SEMI
E138
element Error: ccs:ErrorType
No SEMI E125-specific error codes
are defined for this operation.
7.2.13.5.3 Equipment — This global element is defined in SEMI E120.1. Please refer to that specification for a
description of the contents of this element.
7.2.14 GetEquipmentNodeDescriptions
7.2.14.1 This section is provisional, pending approval of SEMI E132.1 and SEMI E138.
7.2.14.2 WSDL Operation Binding
7.2.14.2.1 See the operation binding for “GetEquipmentNodeDescriptions” in E125-1-V0305-EqpMetadataMgr-
Binding.wsdl. Key information is shown for convenience in the following table.
Table 66 GetEquipmentNodeDescriptions Operation Binding
SOAPAction
urn:semi-org:ws.E125-1.V0305.esdMetaEqp-
binding:GetEquipmentNodeDescriptions
Input Headers (WSDL Message, Required) E132HeaderMessage, required
Output Headers (WSDL Message, Required) E132HeaderMessage, required
7.2.14.3 WSDL PortType Operation
7.2.14.3.1 See the portType operation definition for “GetEquipmentNodeDescriptions” in E125-1-V0305-
EqpMetadataMgr-PortType.wsdl. Key information is shown for convenience in the following table.
Table 67 GetEquipmentNodeDescriptions PortType Operation
Input Message Name GetEquipmentNodeDescriptionsRequestMessage
Output Message Name GetEquipmentNodeDescriptionsResponseMessage
7.2.14.4 WSDL Message(s)
7.2.14.4.1 See the message definitions for “E132HeaderMessage”, “GetEquipmentNodeDescriptionsRequest
Message”, and “GetEquipmentNodeDescriptionsResponseMessage” in E125-1-V0305-EqpMetadataMgr-
PortType.wsdl. Key information is shown for convenience in the following table.
Table 68 EquipmentMetadataManager Binding
Message Name
Schema
Element Name
E132HeaderMessage auth:E132Header
GetEquipmentNodeDescriptionsRequestMessage esd:GetEquipmentNodeDescriptionsRequest
GetEquipmentNodeDescriptionsResponseMessage
esd:GetEquipmentNodeDescriptionsResponse
