SEMI D35-1103

5.7 Measure the lamp voltage when the rated lamp

current is stable.

5.8 Measure the luminance and chromaticity when the

rated lamp current is stable.

5.9 Turn off the CCFL and remove it from the

measuring equipment.

5.10 Refer to Sections 9.3 and 9.4 regarding the

measurement of the effective emission area and

luminance stabilization time.

6 Apparatus

6.1 Electrical Apparatus — Choose measuring

equipment to use from the following devices and

specify which devices were used, and also specify a

measuring circuit, lighting frequency, rating of

electrical wire and its length in the report. The

electrical (and optical) characteristics of CCFL depend

on the frequency of the lighting circuit.

6.1.1 Power Supply — For the lighting of CCFL, use a

power supply unit that provides the substantial

sinusoidal waveform and frequency of 50–60 kHz.

Also, use the combination of a Stabilized DC power

supply unit and an inverter, or a power supply unit

designed specially as an integrated type (special

purpose). The output voltage of either of them is

variable but the variability shall not affect the

measurement.

6.1.2 Meter — Use a meter that indicates true AC

voltage values for measurement. The meter built in a

special purpose power supply unit shall indicate true

values as well.

6.1.3 Circuit — The circuit to measure electrical

characteristics shall conform to Figure 1 or Figure 2.

6.1.4 Specify the ratings and lengths of electrical wires

that connect each meter and lamp. Since the wires

produce leakage current due to stray capacitance and

the amount differs according to the lengths, set the

wires as short as possible and do not bundle them.

6.2 Optical Measuring Equipment — Choose a

measuring equipment to use from the following devices

and specify which devices were used, and also specify

the measuring distance, viewing angle, and ambient

temperature in the report. The optical (and electrical)

characteristics of CCFL depend on the ambient (lamp

wall) temperature.

6.2.1 Black Box for Measurement — The black box

used to measure shall be so designed that the lamp

surface may not be affected by wind. The delustered

black paint shall be applied on the inside of the box so

that it may not be affected by the background color or

reflected light when the luminance is measured. In

addition, in order not to be affected by stray

capacitance, non-conductive materials shall be used.

For the installation of a CCFL in the box, a fixing

method shall be employed for avoiding the impact to

the lamp wall temperature distribution at lighting.

GND

Inverter

CCFL

Themocouple ammeter

True value voltmeter

High-voltage prove

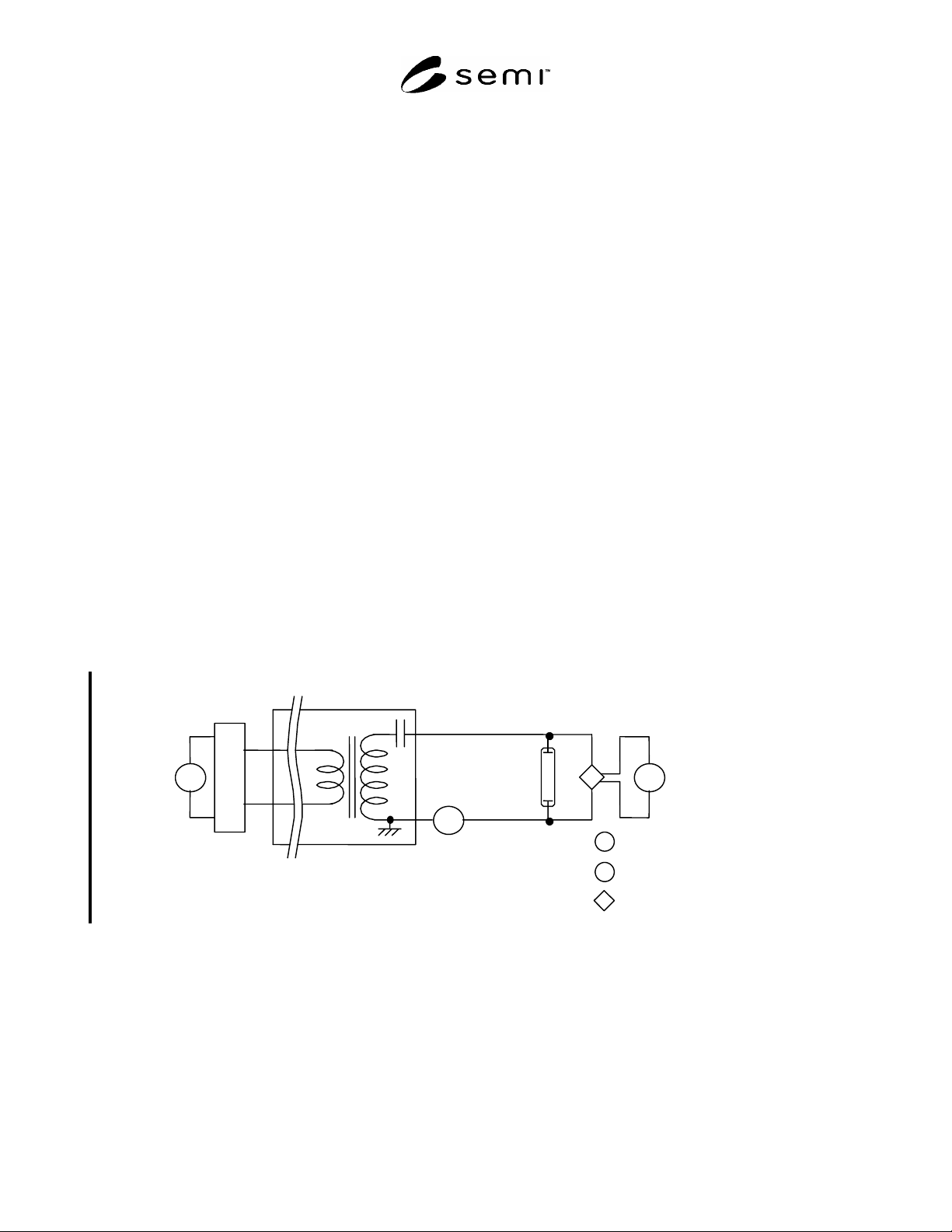

Figure 1

Combination of Stabilized DC Power Source and Inverter

SEMI D35-1103

～

CCFL

Exclusive power supply

12pF

～

Themocouple ammeter

True value voltmeter

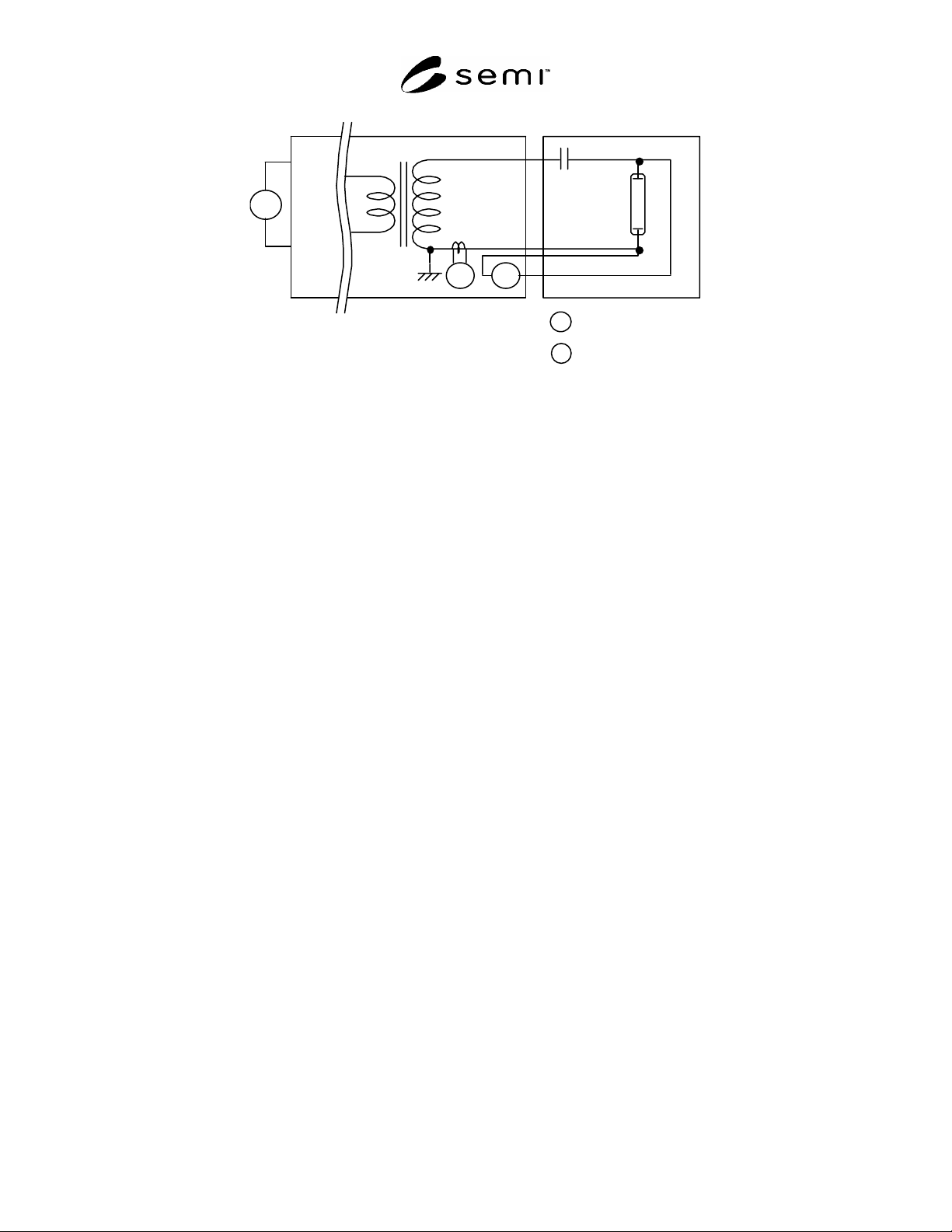

Figure 2

Exclusive Power Supply

6.2.2 Meter — Use a spectroradiometer or colorimeter

to measure the luminance and chromaticity. Keep the

spectroradiometer under control of calibration system

with the meter of national standard and traceability.

Calibrate the colorimeter in such a way that it can

reproduce the luminance value of a master CCFL

obtained by a calibrated spectroradiometer. Since each

colorimeter has the instrumental error and changes with

the passage of time, the calibration is necessary for

daily use. For the calibration, a master CCFL, which

has the emission spectrum value close to that of a

CCFL to be measured, shall be used.

6.2.3 Diagram for Measurement — The diagram for

optical measurement shall conform to Figure 3.

7 Measurement Conditions

7.1 The place for measurement shall be kept at

25 ± 2°C for ambient temperature and 30–85%RH. The

temperature fluctuation shall be within 1°C and if the

temperature is specified, the measurement shall be

carried out at such temperature. There shall be no wind

or vibration that may affect the measurement.

7.2 For the measurement of luminance and

chromaticity, arrange the situation where ambient

reflected light may not affect it or such can be ignored.

7.3 For the measurement of voltage, points to be

measured shall be specified in circuit diagrams.

Measured values may vary by the impact of ballast

capacitor or probe based upon whether the points

measured are located at an inverter transformer side or

a lamp side (or located at front or rear side of ballast

capacitor).

7.4 The electrostatic capacity of a high voltage probe

used to measure a voltage shall be so small that the

impact to the probe by leakage current may be less and

it shall be specified.

8 Test Specimen

8.1 Use a CCFL in which the wall temperature and

ambient temperature are kept in equilibrium before

lighting. Especially when measuring the stable

discharge voltage again after the first measurement,

carry out after the lamp has been in equilibrium on both

temperatures, the lamp wall temperature and ambient

temperature.

8.2 Fix a CCFL horizontally along its long side on the

jig of the above-mentioned equipment and this method

shall not affect the temperature distribution on the wall.

The measured point shall be measured in the air.

SEMI D35-1103

Distance of

measurement

Windle ss stat e

Spectroradiometer

or Colorimeter

Distance of measurement

CCFL

Spectroradiometer

or Colorimeter

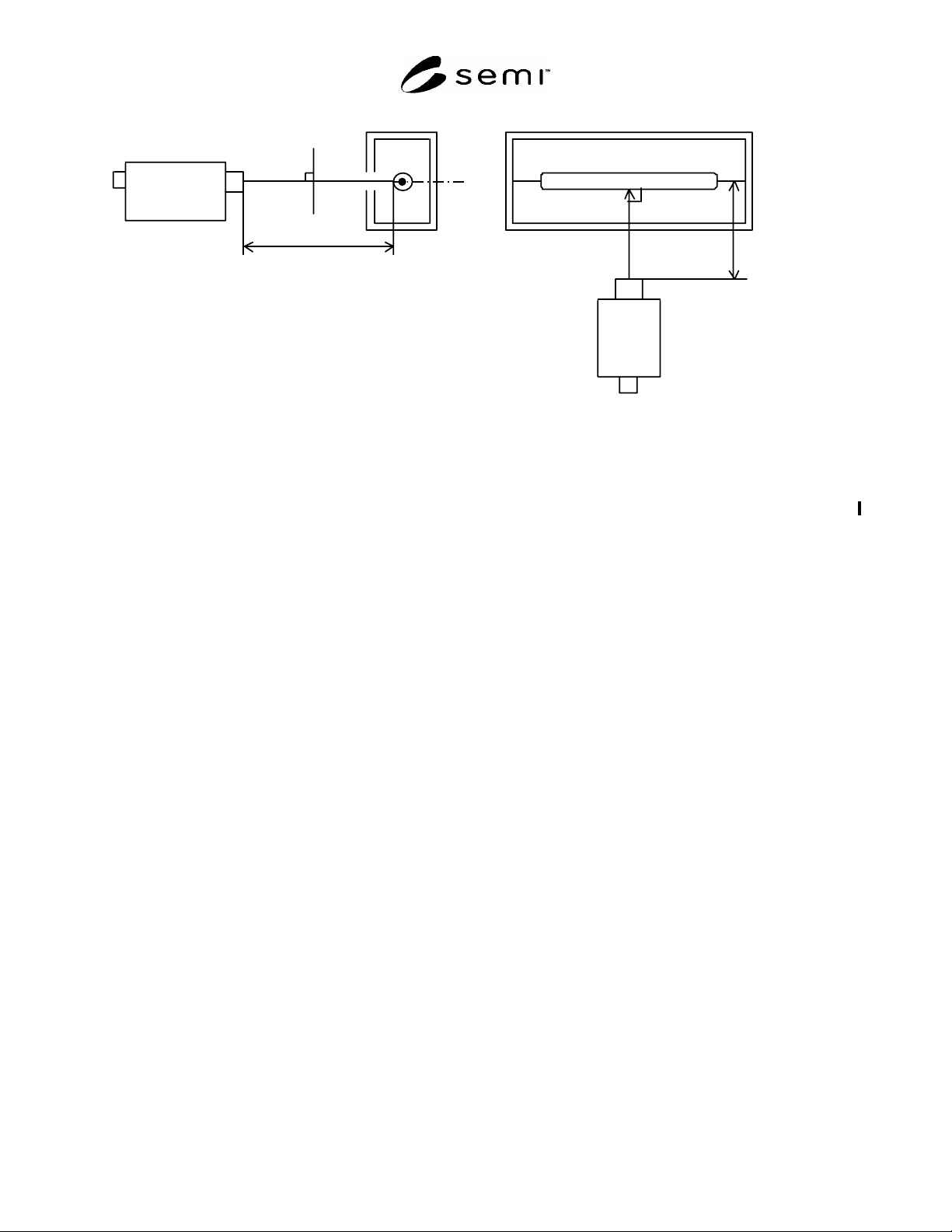

Figure 3

Optical Characteristics Measurement

9 Procedure

9.1 Measurement of Electrical Characteristics

9.1.1 Measurement of Stable Discharge Voltage —

Apply zero or very low voltage to the both ends of a

lamp (between two electrodes) and increase the voltage

gradually (slide-up). The lamp starts to discharge after

the voltage reaches a certain value. Furthermore,

increase the voltage gradually (slide-up) and measure

the potential difference between the lamp ends

(electrodes) as a stable discharge voltage when a main

discharge starts.

9.1.2 Measurement of Lamp Current — Adjust the

output voltage of power supply unit to gain a specified

lamp current. Measure the lamp current at GND

terminal when it becomes stable at a specified value.

Record the preset voltage of the power supply as well.

(Refer to Figure 1 or Figure 2.)

9.1.3 Measurement of Lamp Voltage — Measure the

potential difference between both ends (electrodes) of a

lamp as a lamp voltage when the lamp current becomes

stable at a specified lamp current. If the lamp current is

affected when a probe is connected, adjust the lamp

current to make it a specified lamp current. Measure

the lamp current after it becomes stable.

9.1.4 Lamp Wattage — It is defined as a product of

lamp current, lamp voltage and power factor

(W = VL × IL × cos) and expressed as a reference

value. When the phase difference between the lamp

current and lamp voltage can be ignored and if such

situation is specified, the product of the lamp current

and lamp voltage (W = VL × IL) may be expressed as a

reference value.

9.2 Measurement of Optical Characteristics

9.2.1 Point of Measurement — The point is the side

surface of a lamp, which is within the range of viewing

angle (black circle) of a measuring instrument. The area

of measurement is the central part of the lamp. The

point of measurement shall be so small relatively to the

inner diameter of the lamp that the dislocation of the

point may not vary the luminance and chromaticity.

The point of measurement is a cylindrical surface but it

could be regarded as a plain surface due to the

smallness. (See Figure 5.) The dispersion due to

dislocation of a point of measurement is smaller within

the range that is less than or equal to 50% of the inner

diameter. The luminance decreases in the other range.

9.2.2 Distance of Measurement — The distance shall

be from a lamp surface to be measured to a light-

receiving lens surface of a measuring instrument. The

size of viewing angle varies according to adjustment by

luminance meter and the distance of measurement, set

the distance to match the inner diameter mentioned

above. When measuring, the inner surface of the lamp

and the focal point shall be well matched (Figure 5). (If

the focal point of the luminance meter is displaced, the

luminance and chromaticity values will not be indicated

correctly.)

9.2.3 Timing of Measurement — Measure after the

luminance seems stable at a specified lamp current

(where the luminance fluctuation difference is within

± 3% of the stable luminance, for example). (See Figure

4.)
