SEMI E1.5-91 © SEMI 1984, 2003 1

SEMI E1.5-91 (Reapproved 1102)

STANDARD FOR 150 mm PLASTIC AND METAL WAFER CARRIERS,

GENERAL USAGE

This standard was technically approved by the Global Physical Interfaces and Carriers Committee and is the

direct responsibility of the North American Physical Interfaces and Carriers Committee. Current edition

approved by the North American Physical Interfaces and Carriers Committee on July 21, 2002. Initially

available at www.semi.org October 2002; to be published November 2002. Orignally published in 1984;

previously published February 1999.

This document was editorially modified in January 2003 to correct editorial errors that were introduced

into the document in earlier editions. Changes were made to the table header and the last two rows of the

table.

Figure 6

Reference

Overall Dimensions

A1 143.4 mm + 0.64 mm/– 0.5 mm

(5.645 inch + 0.025 inch/– 0.020 inch)

A2 177.80 mm (7.000 inch) maximum

A3 171.40 mm (6.750 inch) maximum

B1 25

B2 4.76 mm ± 0.25 mm (0.1875 inch ± 0.010 inch)

B3 114.30 mm ± 0.025 mm

(4.500 inch ± 0.010 inch)

C1 (C3) + 0.50 mm (0.020 inch) minimum

C2 9.53 mm (0.375 inch) minimum /

12.70 mm (0.500 inch) maximum

C3 1.52 mm ± 0.13 mm (0.060 inch ± 0.005 inch)

for plastic

2.03 mm + 0.00 mm/– 0.50 mm (0.080 inch +

0.000 inch/– 0.020 inch) for metal

C4 153.5 mm ± 1.0 mm (6.043 inch ± 0.040 inch)

C5 156.0 mm ± 0.5 mm (6.142 inch ± 0.020 inch)

C6 134.52 mm ± 0.25 mm (5.296 inch ± 0.010 inch)

C7 3.56 mm + 0.13 mm/– 0.38 mm (0.140 inch +

0.005 inch/– 0.015 inch) diameter by

4.32 mm ± 0.50 mm (0.170 inch ± 0.020 inch)

high

C8 3.96 mm + 0.50 mm/– 0.00 mm (0.156 inch +

0.020 inch/– 0.000 inch) diameter by

5.0 mm (0.197 inch) minimum depth

Figure 6

Reference

Overall Dimensions

C9 10.11 mm ± 0.25 mm (0.398 inch ± 0.010 inch)

D1 14.54 mm ± 0.25 mm (0.572 inch ± 0.010 inch)

D2 4.57 mm (0.18 inch) minimum

D3 1.57 mm ± 0.5 mm (0.062 inch ± 0.020 inch)

D4a 79.76 mm ± 0.50 mm (3.140 inch ± 0.020 inch)

This specification is applicable only to full-depth

wafer carriers, i.e., the wafer sits below the top o

the carrier.

D4b On center within ± 3.18 mm (± 0.125 inch)

This specification describes the center point of

the wafer in relationship to the centerline of the

crossbar (for a 150 mm nominal wafer).

D5a 25.40 mm + 0.0 mm/– 0.5 mm

(1.000 inch + 0.000 inch/– 0.020 inch)

D5b 6.35 mm + 0.00 mm/– 0.38 mm

(0.250 inch + 0.000 inch/– 0.020 inch)

D5c 4.45 mm ± 0.75 mm (0.175 inch ± 0.030 inch)

D6 76.2 mm (3.000 inch) minimum

Wafer Tilt 0.64 mm (0.025 inch) maximum

Usage Note: Because of the range of wafer carrier designs and wafer

carrier feature tolerances allowed by this standard, and because of the

range of wafer shapes and tolerances allowed by the wafer

dimensional standards, not every possible SEMI Standards wafer

carrier is compatible with every possible SEMI Standard wafer.

Please verify the compatibility of your specific wafer and carrier with

the respective vendors.

Figure 6

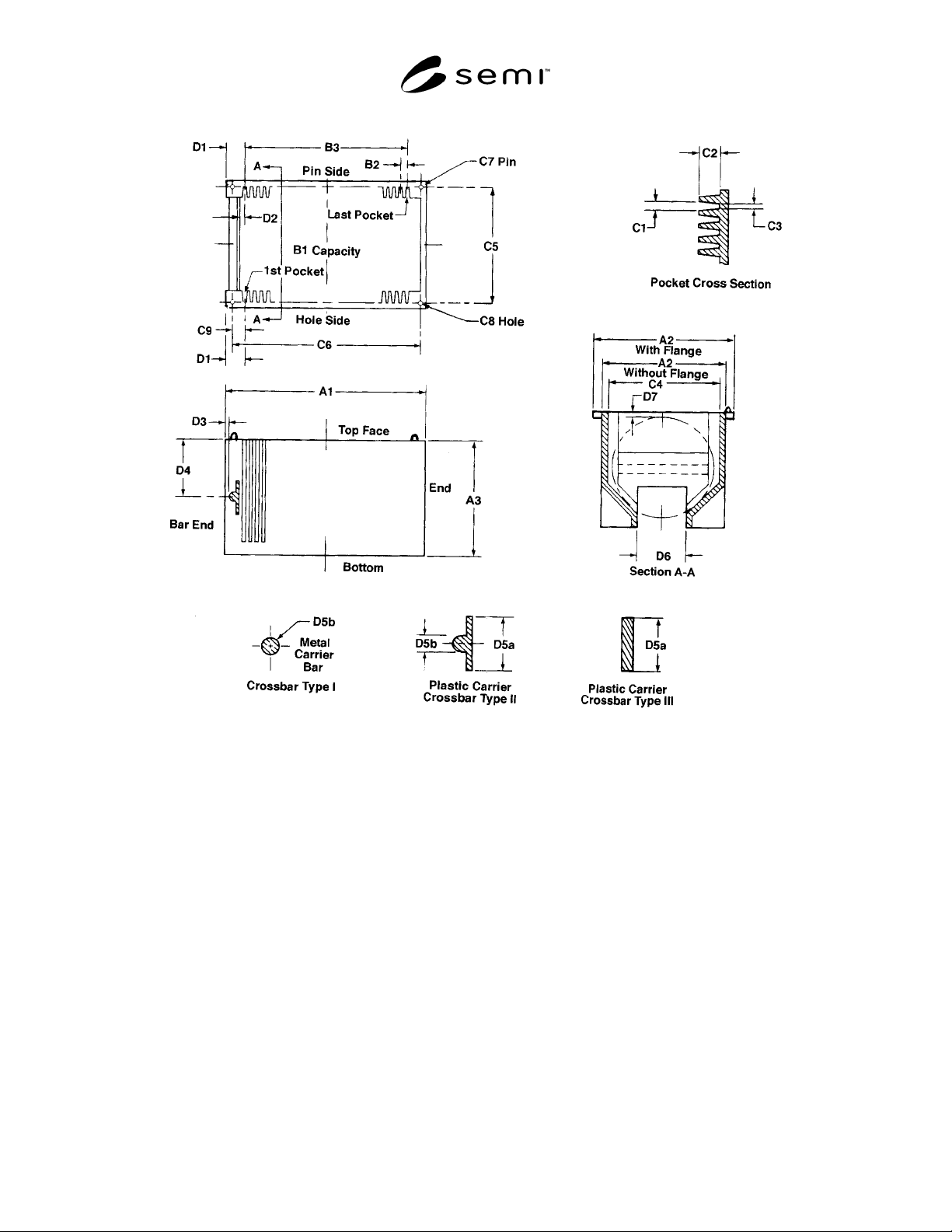

150 mm Plastic & Metal Wafer Carrier General Usage
