SEMI E134.1-0305 © SEMI 2005 52
Table 112 Translation Table for ReportSelectorType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
TraceReport Structured data, of type
TraceReport
Element TraceReport:
dcm:TraceReportType
EventReport Structured data, of type
EventReport
Element EventReport:
dcm:EventReportType
EventReport Structured data, of type
ExceptionReport
Element ExceptionReport:
dcm:ExceptionReportType
7.3.5.4.4 EventReportType — This global complexType is the XML Schema representation of the SEMI E134
DataCollectionReport class. The following table describes the mapping of the UML class to this XML Schema
complexType.

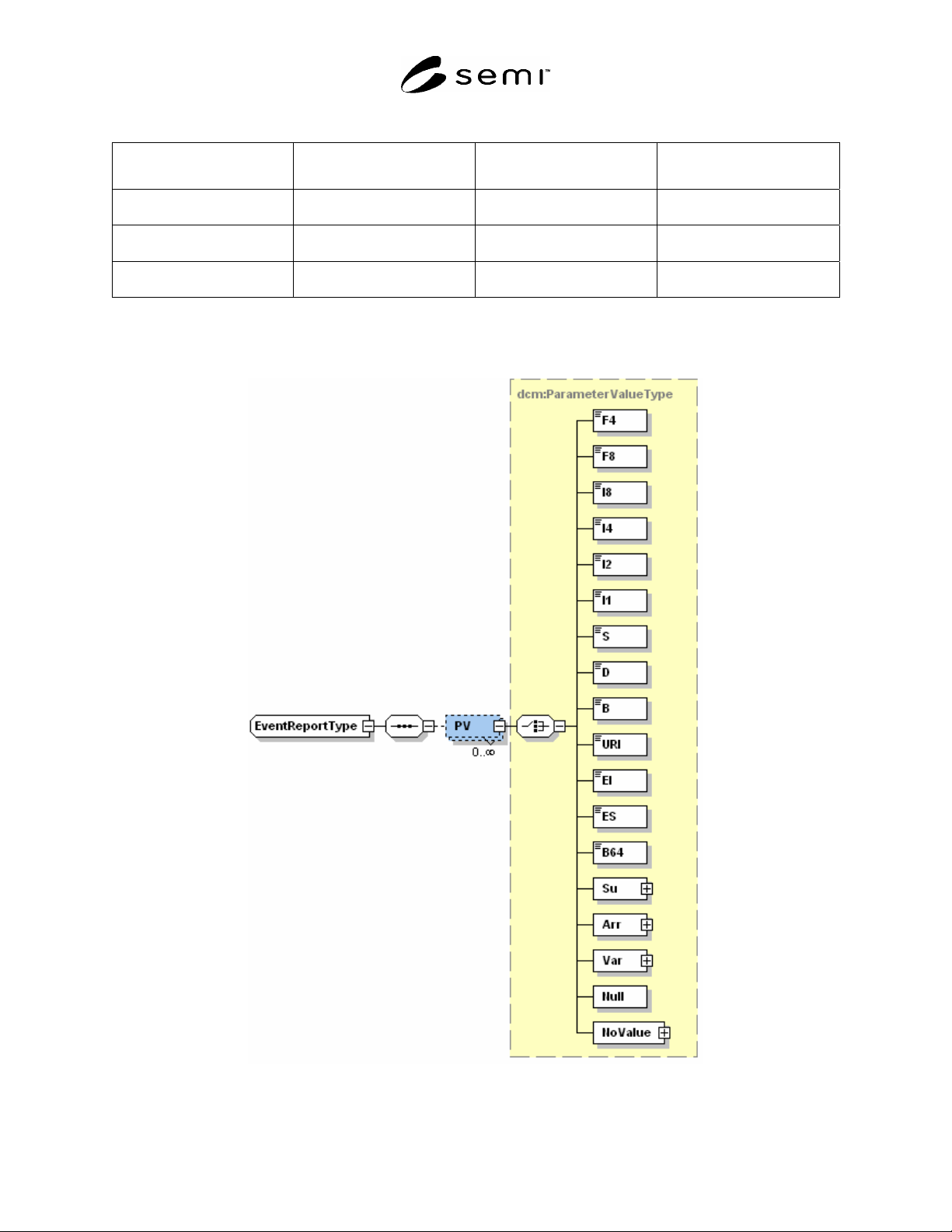

Figure 36
EventReportType
SEMI E134.1-0305 © SEMI 2005 53
Table 113 Translation Table for EventReportType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
parameterValues Ordered list of zero or more
elements of type
ParameterValue
Element PV: dcm:ParameterValueType
sourceId Text Attribute sourceId: xsd:string
eventId Text Attribute eventId: xsd:string
eventTime Text Attribute eventTime: xsd:dateTime
7.3.5.4.5 ExceptionReportType — This global complexType is the XML Schema representation of the SEMI E134
ExceptionReport class. The following table describes the mapping of the UML class to this XML Schema
complexType.

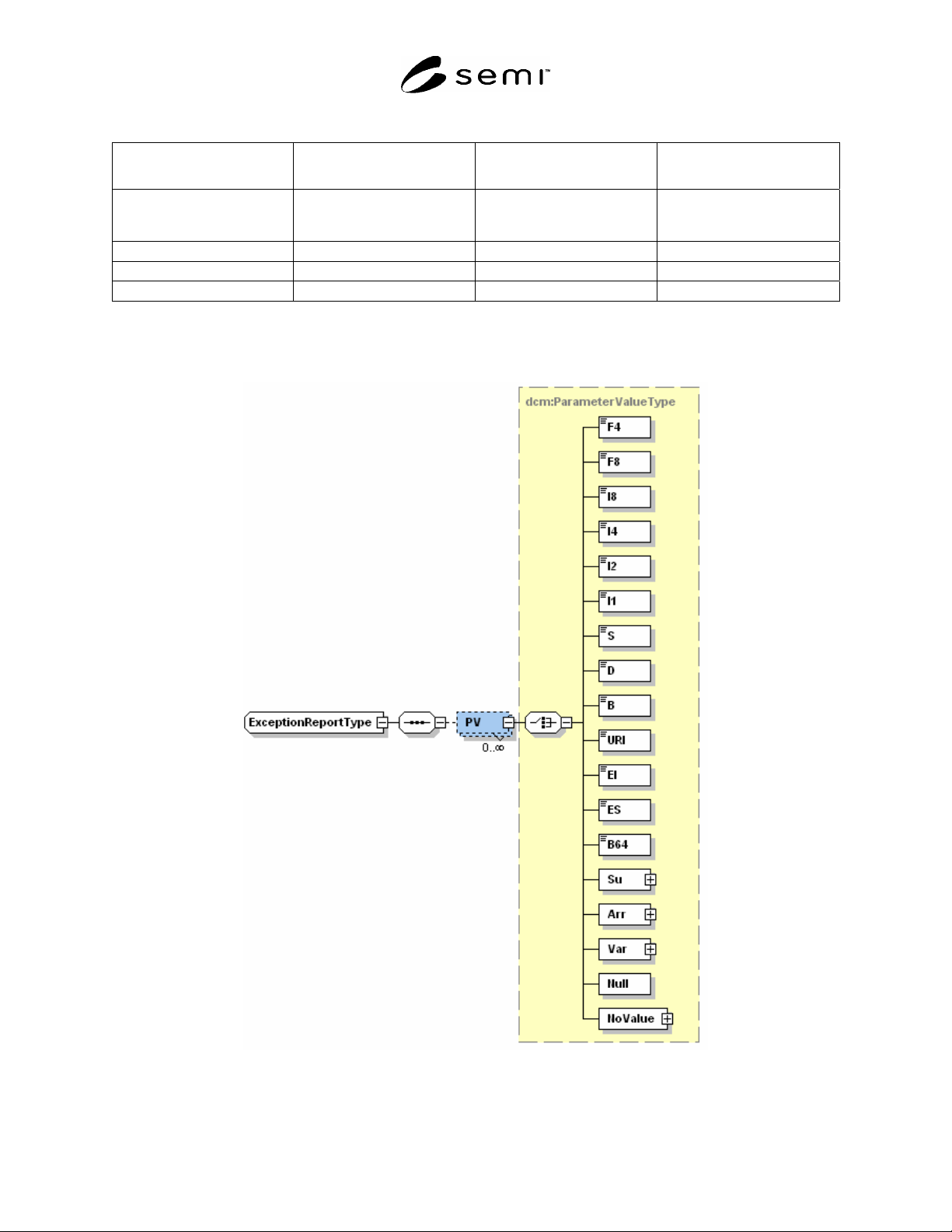

Figure 37
ExceptionReportType
SEMI E134.1-0305 © SEMI 2005 54
Table 114 Translation Table for ExceptionReportType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
parameterValues Ordered list of zero or more
elements of type
ParameterValue
Element PV: dcm:ParameterValueType
sourceId Text Attribute sourceId: xsd:string
exceptionId Text Attribute exceptionId: xsd:string
exceptionTime Text Attribute exceptionTime: xsd:dateTime
severity Text Attribute severity: xsd:string
state Text Attribute state: xsd:string
7.3.5.4.6 TraceReportType — This global complexType is the XML Schema representation of the SEMI E134
TraceReport class. The following table describes the mapping of the UML class to this XML Schema
complexType.
Table 115 Translation Table for TraceReportType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
traceResults Ordered list of one or more
elements of type
CollectedData, appearing in
the order of each result’s start
time
Element TR: dcm:CollectedDataType
startTrigger Zero or one element of any
type derived from Trigger
Element StartTrigger:
dcm:TriggerSelectorType (see
Figure 9 and ¶¶7.2.11.4.7and
7.2.11.4.8
stopTrigger Zero or one element of any
type derived from Trigger
Element StopTrigger:
dcm:TriggerSelectorType (see
Figure 9 and ¶¶7.2.11.4.7and
7.2.11.4.8
traceId Integer Attribute sourceId: xsd:int
startTriggerTime Text Attribute startTriggerTime: xsd:dateTime
stopTriggerTime Text Attribute stopTriggerTime: xsd:dateTime
reportTime Text Attribute reportTime: xsd:dateTime
7.3.5.4.7 CollectedDataType — This global complexType is the XML Schema representation of the SEMI E134
CollectedData class. The following table describes the mapping of the UML class to this XML Schema
complexType.
7.3.5.4.8 CollectedDataType — This global complexType is the XML Schema representation of the SEMI E134
CollectedData class. The following table describes the mapping of the UML class to this XML Schema
complexType.
