SEMI S8-0705 © SEMI 1995, 2005 22
APPENDIX 3
HANDLE DESIGN DIAGRAMS
NOTICE: The material in this appendix is an official part of SEMI S8 and was approved by full letter ballot
procedures by the North American Regional Standards Committee.
A3-1 Handle Design
A3-1.1 The following diagrams are intended to clarify the criteria described in §6 of Appendix 1.

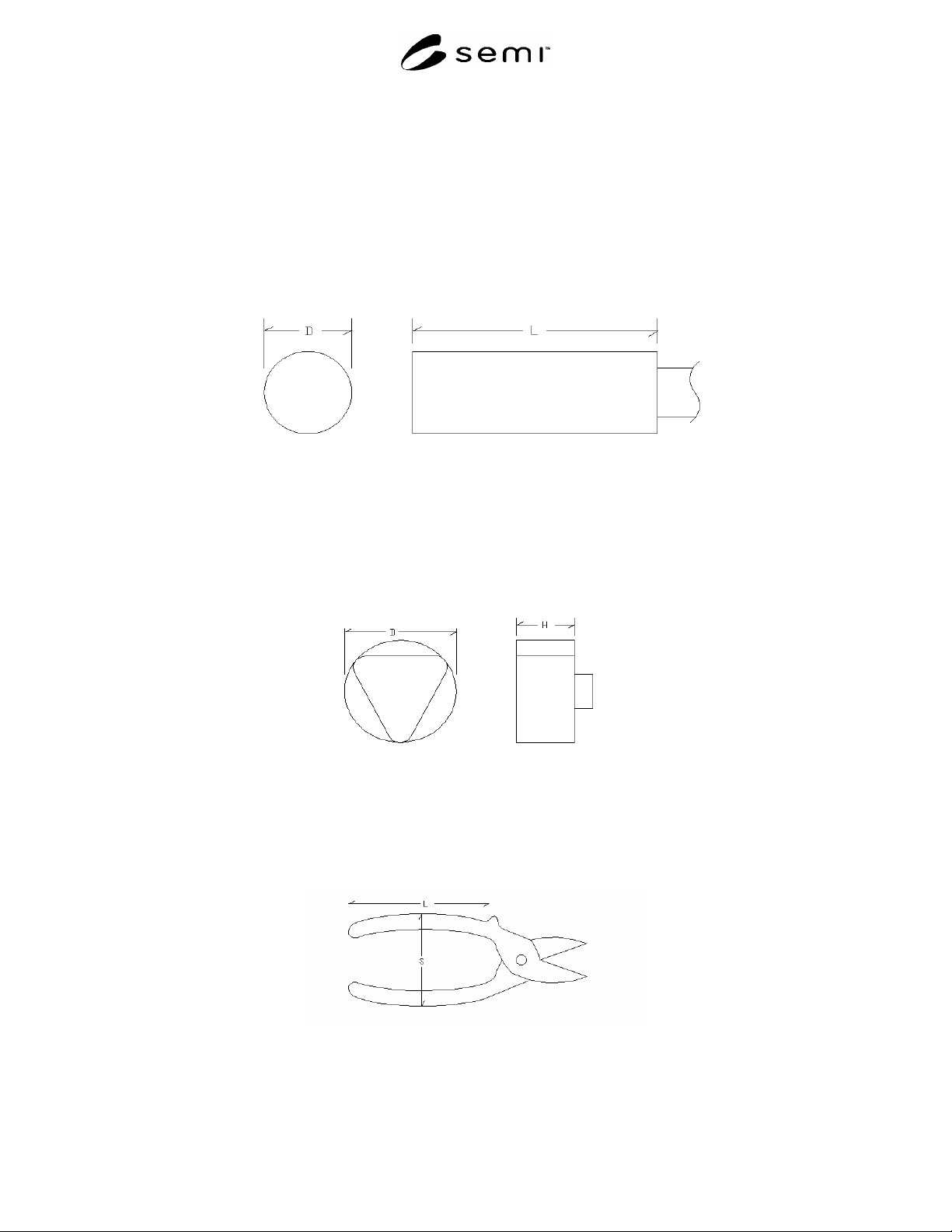

A3-1.1.1 Cylindrical Handle
Figure A3-1
Cylindrical Handle
D - Handle diameter
L - Handle length
A3-1.1.2 Circular Handle, or Triangular Handle
Figure A3-2
Circular Handle, or Triangular Handle
D - Handle diameter
H - Handle height (thickness)
A3-1.1.3 Pliers Handle
Figure A3-3
Pliers Handle
L - Handle length
S - Handle grip span
SEMI S8-0705 © SEMI 1995, 2005 23
A3-1.1.4 Pistol Grip Handle
Figure A3-4
Pistol Grip Handle
D - Handle diameter
L - Handle length
A3-1.1.5 Enclosed Handle
Figure A3-5
Enclosed Handle
D - Handle depth
W - Handle width
d - Handle diameter
A3-1.1.6 Hook Grasp Handle, or Finger Pull Handle
Figure A3-6
Hook Grasp Handle, or Finger Pull Handle
W - Handle opening width
L - Handle opening length
l - Handle lip length
d - Handle depth
SEMI S8-0705 © SEMI 1995, 2005 24
RELATED INFORMATION 1
ANTHROPOMETRIC RESOURCE DATA
NOTICE: This related information is not an official part of SEMI S8 and is not intended to modify or supersede the
official guidelines. It was derived from the work of the originating task force. Publication was authorized by full
ballot procedures. Determination of the suitability of the material is solely the user’s responsibility.
R1-1 Selected 5th Percentile Female and 95th Percentile Male Standing and Seated Dimensions
Table R1-1 Selected Body Dimensions for Females and Males (see Figures R1-1 and R1-2)
Criteria Label 5th Percentile Female (Asian) 95th Percentile Male (U.S.)
Standing Dimensions
#1
mm inch mm inch
Stature
#2
(A) 1471 57.9 1895 74.6
Eye Height
#2
(B) 1356 53.4 1763 69.4
Shoulder height
#2
(C) 1206 47.5 1572 61.9
Elbow height
#2
(D) 894 35.2 1214 47.8
Knuckle height
#2
(E) 676 26.6 831 32.7
Seated Dimensions
#1
mm inch mm inch
Seated height (F) 780 30.7 973 38.3
Eye height (G) 660 26.0 843 33.2
Shoulder height (H) 510 20.1 645 25.4
Elbow height (I) 165 6.5 287 11.3
Buttock-knee length (J) 470 18.5 650 25.6
Popliteal height
#2
(K) 350 13.8 521 20.5
Knee height
#2
(L) 434 17.1 632 24.9
Reach Distances
#1
mm inch mm inch
Standing vertical grip reach
#2
(M) 1712 67.4 2134 84.0
Sitting vertical grip reach (N) 855 33.7 1356 53.4
Forward grip reach (O) 580 22.8 787 31.0
#1
Dimensions based on Pheasant (1988), MIL-STD-1472D (1994), and SAE J833 (1989).
#2
An allowance of 25mm (1 inch) has been made for shoes on all vertical dimensions where the feet touch the floor.
M
C
D
B
E
O
A
Figure R1-1
Standing Dimensions
N
H
I
G
K
O
F
L
J
Figure R1-2
Seated Dimensions
