SEMI E86-0200 © SEMI 1999 , 2000 15 6.3.4.1 Object State Tables Table 1 Person State Definitions and Query State Definition Query for State via NOT AVAILABLE In this state, a Person is not clocked on to shift and cannot …

SEMI E86-0200 © SEMI 1999, 2000 14

/* Return a boolean denoting whether or not a Person is assigned to the specified job. */

boolean isAssignedToJob (in Job aJob) raises (FrameworkErrorSignal);

/* Return a boolean denoting whether or not a Person is assigned to any jobs. */

boolean isAssignedToJobs ( ) raises (FrameworkErrorSignal);

/* Retrieve the set of jobs to which a Person is assigned. */

JobSequence assignedJobs ( ) raises (FrameworkErrorSignal);

/* Return a boolean denoting whether or not a Person is available for more jobs. */

boolean isAvailableForMoreJobAssignments ( ) raises (FrameworkErrorSignal);

Contracted Services: None.

Dynamic Model:

NOT AVAILABLE

AVAILABLE

AT WORK STATION

NOT AT WORK STATION

UNASSIGNED TO JOBS

ASSIGNED TO JOBS

AVAILABLE FOR MORE ASSIGNMENTS

ASSIGNMENT AT CAPACITY EXCEEDED

UNASSIGNED TO MACHINES

ASSIGNED TO MACHINES

AVAILABLE FOR MORE ASSIGNMENTS

ASSIGNMENT AT CAPACITY EXCEEDED

AT WORK STATION

NOT AT WORK STATION

AT WORK STATION

NOT AT WORK STATION

UNASSIGNED TO JOBS

ASSIGNED TO JOBS

AVAILABLE FOR MORE ASSIGNMENTS

ASSIGNMENT AT CAPACITY EXCEEDED

UNASSIGNED TO MACHINES

ASSIGNED TO MACHINES

AVAILABLE FOR MORE ASSIGNMENTS

ASSIGNMENT AT CAPACITY EXCEEDED

UNASSIGNED TO MACHINES

UNASSIGNED TO JOBS

ASSIGNED TO JOBS

AVAILABLE FOR MORE ASSIGNMENTS

ASSIGNMENT AT CAPACITY EXCEEDED

AVAILABLE FOR MORE ASSIGNMENTS

ASSIGNMENT AT CAPACITY EXCEEDED

112

ASSIGNED TO MACHINES

AVAILABLE FOR MORE ASSIGNMENTS

ASSIGNMENT AT CAPACITY EXCEEDED

AVAILABLE FOR MORE ASSIGNMENTS

ASSIGNMENT AT CAPACITY EXCEEDED

811

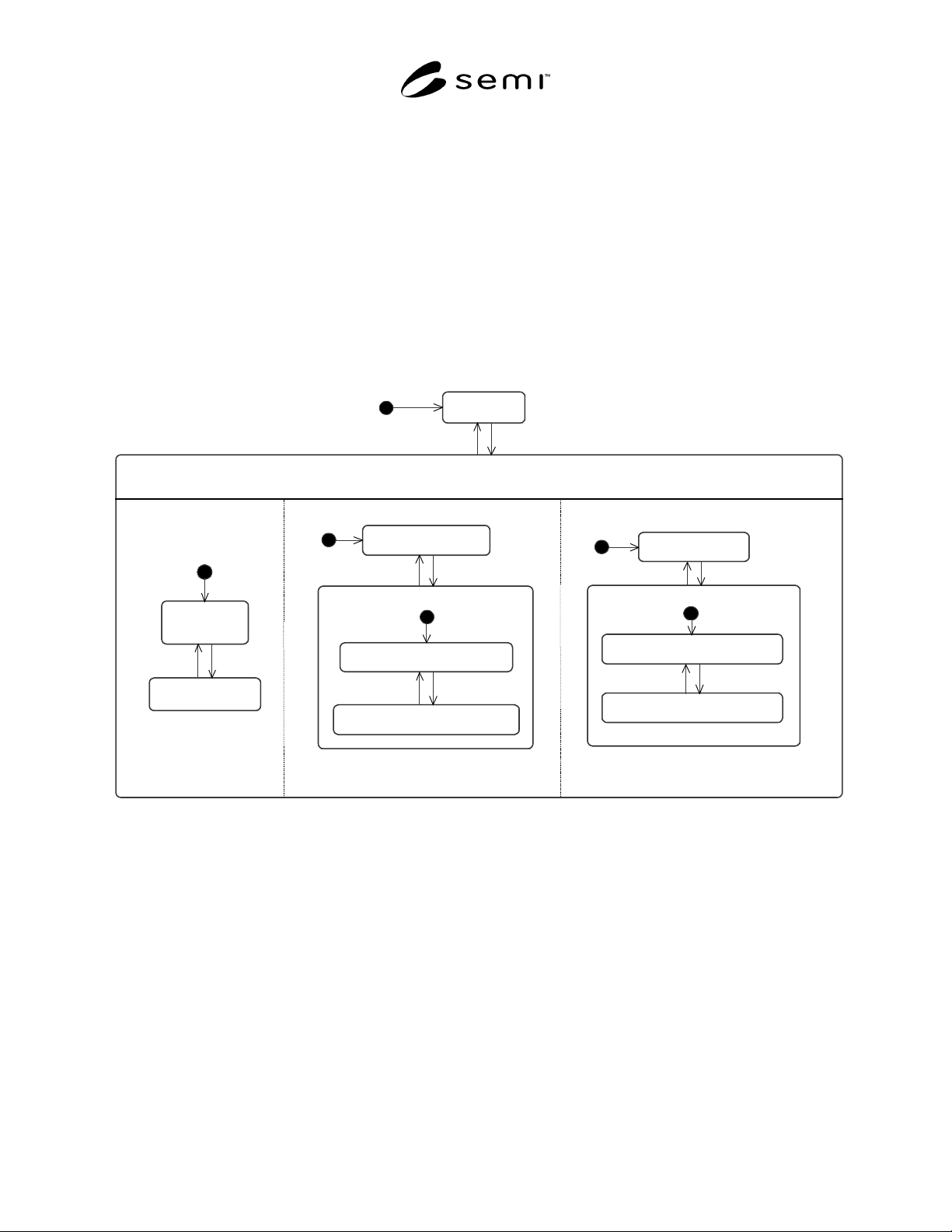

Figure 3

Person Dynamic Model

SEMI E86-0200 © SEMI 1999, 200015

6.3.4.1 Object State Tables

Table 1 Person State Definitions and Query

State Definition Query for State via

NOT AVAILABLE In this state, a Person is not

clocked on to shift and cannot

perform work.

boolean isOnShift ( ) sent to instance of Person returns

FALSE. Person NOT included in set returned by

PersonManager services. PersonSequence

allOnShiftPersons (in Shift aShift) or

allAvailableForWorkPersons ( ).

AVAILABLE In this superstate, a Person is

clocked on to a shift and is ready

to perform work.

boolean isOnShift ( ) sent to instance of Person returns

TRUE. Person included in set returned by

PersonManager services PersonSequence

allOnShiftPersons (in Shift aShift) or PersonSequence

allAvailableForWorkPersons ( ).

AT WORK

STATION

A Person is available to perform

some manufacturing task; that is,

the Person is physically present

at his or her work site.

boolean isAtWorkStation ( ) sent to instance of Person

returns TRUE.

NOT AT WORK

STATION

A Person is not available to

perform any manufacturing task;

that is, the Person is physically

absent from his or her work site.

boolean isAtWorkStation ( ) sent to instance of Person

returns FALSE.

UNASSIGNED TO

MACHINES

In this state, a Person has not

been assigned to any machines.

A Person may or may not be

assigned to a job(s).

boolean isAssignedToMachines ( ) or boolean

isAssignedToMachine (in Machine aMachine) [for all

Machines] sent to instance of Person returns FALSE.

Person NOT included in set returned by PersonManager

services PersonSequence allPersonsAssignedToMachine

(in Machine aMachine) [for all Machines] or

PersonSequence allAssignedToMachinesPersons ( ).

Empty set returned by Person service MachineSequence

assignedMachines ( );

ASSIGNED TO

MACHINES

In this parent state, a Person has

been assigned to one or more

machines.

boolean isAssignedToMachines ( ) or boolean

isAssignedToMachine (in Machine aMachine) sent to

instance of Person returns TRUE. Person included in set

returned by PersonManager services PersonSequence

allPersonsAssignedToMachine (in Machine aMachine)

or PersonSequence allAssignedToMachinesPersons ( ).

Non-empty set returned by Person service

MachineSequence assignedMachines ( );

AVAILABLE FOR

ASSIGNMENTS

In this substate, a Person is

available for assignments to

more machines.

boolean isAvailableForMoreMachineAssignments ( )

sent to instance of Person returns TRUE.

ASSIGNMENT AT

CAPACITY

EXCEEDED

In this substate, a Person can no

longer be assigned to another

machine; that is, they are AT

CAPACITY with regard to

machine assignment.

boolean isAvailableForMoreMachineAssignments ( )

sent to instance of Person returns FALSE.

SEMI E86-0200 © SEMI 1999, 2000 16

State Definition Query for State via

UNASSIGNED TO

JOBS

In this state a Person has not

been assigned to any jobs. A

Person may or may not be

assigned to job(s).

boolean isAssignedToJobs ( ) or boolean

isAssignedToJob (in Job aJob) [for all Jobs] sent to

instance of Person returns FALSE. Person NOT

included in set returned by PersonManager services

PersonSequence allPersonsAssignedToJob (in Job aJob)

[for all Jobs] or PersonSequence

allAssignedToJobsPersons ( ). Empty set returned by

Person service JobSequence assignedJobs( );

ASSIGNED TO

JOBS

In this parent state, a Person has

been assigned to one or more

job(s).

boolean isAssignedToJobs ( ) or boolean

isAssignedToJob (in Job aJob) sent to instance of Person

returns TRUE. Person included in set returned by

PersonManager services PersonSequence

allPersonsAssignedToJob (in Job aJob) or

PersonSequence allAssignedToJobsPersons ( ). Non-

empty set returned by Person service JobSequence

assignedJobs ( );

AVAILABLE FOR

ASSIGNMENTS

In this substate, a Person is

available for assignments to

more jobs.

boolean isAvailableForMoreJobAssignments ( ) sent to

instance of Person returns TRUE. Person included in set

returned by PersonManager service PersonSequence

allPersonsAvailableForJob (in Job aJob).

ASSIGNMENT AT

CAPACITY

EXCEEDED

In this substate, a Person can no

longer be assigned to another

job; that is, they are AT

CAPACITY with regard to job

assignment.

boolean isAvailableForMoreJobAssignments ( ) sent to

instance of Person returns FALSE. Person not included

in set returned by PersonManager service

PersonSequence allPersonsAvailableForJob (in Job

aJob).

Table 2 Person State Transitions

Current State Trigger New State Action Comment

non-existent createPersonWithIdentifier (in

string identificationNumber);

sent to an instance of

PersonManager.

NOT

AVAILABLE

1 NOT

AVAILABLE

makeOnShift( ); sent to

instance of Person.

AVAILABLE PersonShiftChanged

event posted by instance

of Person.

PersonStateChanged

event posted by instance

of Person.

Person logged on to

shift. Person is

assumed to be

initially available for

work (at work station)

and not assigned to

machines or jobs.

AT WORK

STATION

makeNotAtWorkStation ( );

sent to instance of Person.

NOT AT WORK

STATION

PersonStateChanged

event posted by instance

of Person.

Typically used for

situation where

Person is not

physically present at

work site (e.g., on a

break). Person is still

assigned to

machine(s) and/or

job(s). Person may be

busy with a job.
