SEMI E42-0704 © SEMI 1995, 2004 80 11.2.10 Change Control — It is important to the user to be able t o control change f o r executi on recipes. In addition, it may be importan t to store recipes that were originate d by …

SEMI E42-0704 © SEMI 1995, 2004 79

them for execution in a timely manner, then it may

indicate the results of the select operation in the

response message, as illustrated in Figure 11.1.

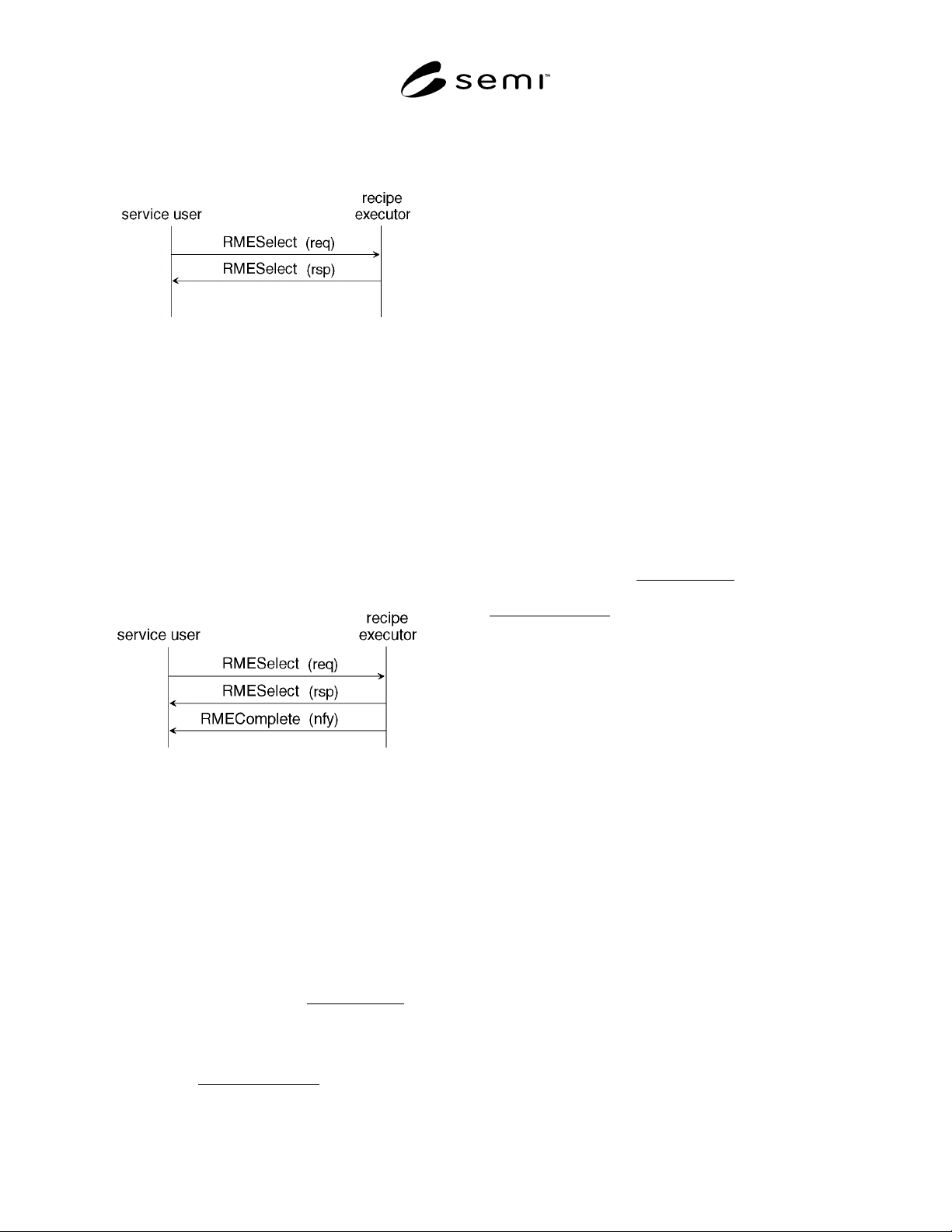

Figure 11.1

RMESelect Message Flow

Alternatively, the recipe executor may anticipate that

the process of selection will require more time. In this

case, it may send a response indicating the intent to

perform the operation as soon as possible, prior to

starting the operation. The notification message

RMEComplete is sent when all specified recipes are

selected or when a selection failure occurs. Exactly one

notification message is sent, as illustrated in Figure

11.2.

Figure 11.2

RMESelect with RMEComplete Notification

If all recipes are located and in local storage, the recipes

are validated as a set.

11.2.7.6 Selected Recipes — Once a recipe and its

associated subrecipes have been selected, they shall be

fully protected from inadvertent (unintentional) change,

including change through download, overwrite,

deletion, and renaming operations.

The recipe executor attribute RecipeSelectID

shall be

set to the list of currently selected recipes, including all

main recipes specified in the select request and all

subrecipes within a linked recipe set.

The attribute RecipeSelectParam

shall be set to the list

of all variable parameter definitions currently in effect

following selection and prior to the start of actual recipe

execution.

11.2.7.6.1 Select Errors — If the recipe executor is

unable to locate a recipe specified for selection in its

storage, it is responsible for obtaining the recipe from

the designated namespace included in the recipe

specifier.

Possible errors resulting from the select operation

include:

• Failure to specify recipes from each of the

subclasses that it requires,

• Failure to validate a recipe,

• Failure to locate a recipe in a specified namespace,

• Failure to locate a recipe, and

• An attempt by the user to select an unlinked recipe.

The select recipe operation is invoked with the

RMESelect service.

11.2.8 Recipe Deselection — A selected recipe is

deselected by making it unavailable for execution for

the next (subsequent) processing cycle, deleting its

identifier from the RecipeSelectID

attribute, and

deleting its parameter definitions from

RecipeSelectParam

attribute. This is a required

operation.

Only a main recipe that is currently selected may be

specified for deselection. Deselecting a main recipe

shall result in the simultaneous deselection of all of its

subrecipes.

If a recipe is deselected during execution, this shall

have no effect until the current process cycle has

completed.

The recipe executor may have additional restrictions

concerning deselection.

The deselect recipe operation is invoked with the

RMEDeselect service.

11.2.9 Get Execution Recipe Descriptor — The get

execution recipe descriptors operation returns the

descriptors of a specified execution recipe: the

execution attribute descriptor, the generic attribute

descriptor, and the body descriptor, in that order. This

is a required operation.

The execution recipe descriptor may be used to

compare two execution recipes or a managed recipe and

an execution recipe.

The get execution recipe descriptor operation is

invoked with the RMEGetDescriptor service.

SEMI E42-0704 © SEMI 1995, 2004 80

11.2.10 Change Control — It is important to the user

to be able to control change for execution recipes. In

addition, it may be important to store recipes that were

originated by the recipe executor in the managed

environment of a recipe namespace. The recipe

attribute ExecChgCtrl

is used to accomplish both

purposes.

The ExecChgCtl

attribute allows the user to control the

modification of an existing execution recipe and its

subsequent use. ExecChgCtrl

is a binary value that

specifies permission for behavior related to changes.

ExecChgCtrl

uses bit settings to indicate permission in

order to facilitate the different possible combinations.

Values given below are in decimal:

1 = permission to change the body of the execution

recipe

2 = requirement to notify the originating namespace of

permitted changes

4 = permission to select (including re-selection of an

already selected recipe) a changed recipe

8 = permission to save the last values of variable

parameters in the ExecParam

attribute

11.2.10.1 Changing Existing Recipes — Whenever the

body is changed, the attributes ExecAttrLength

ExecChgTime

, BodyLength, and EditTime shall be

updated. The attribute ChangedBody

shall be set to

TRUE and remain set until the recipe is uploaded

successfully to the originating recipe namespace. The

ChangedBody attribute is reset when the upload request

is received. It is not included in the uploaded attributes.

Note that the attributes ExecAttrLength

and

ExecChgTime

are not kept in the managed recipe

stored in the namespace, and that the attributes

AttrLength

and AttrChgTime are not maintained by the

recipe executor and are recalculated for the managed

recipe when stored.

If the ExecChgCtrl attribute permits both change and

subsequent selection or re-selection (as for a currently

selected recipe changed by the execution process itself),

then the recipe's Linked attribute is not affected.

Otherwise, if change is permitted but subsequent

selection is not permitted, then the Linked

attribute of

the main recipe shall be cleared (set to FALSE) to

prevent any subsequent selection, and the recipe shall

be automatically de-selected at the end of any current

processing cycle. It shall not be available for selection

until it has been uploaded, re-linked, and downloaded

again, with its changes, by the originating namespace.

11.2.10.2 Creating New Recipes — A new execution

recipe may be created by various mechanisms. Such

mechanisms are beyond the scope of RMS. However,

all such recipes shall be assigned an identifier that is not

already in use by an execution recipe. It is not required

that an originating namespace be assigned immediately

in all cases. However, it must be provided before the

recipe can be uploaded and placed in the management

system. New identifiers assigned automatically by the

recipe executor shall use the next available numeric

version, in conformance with Section 3.2.3.3.

A newly created recipe may not be executed. Its

ChangedBody

attribute shall be set to TRUE, and

BodyFormat

shall be set TRUE for non-text recipes.

The attribute ExecChgCtrl

shall be set to a value of 3 (1

plus 2) or higher. Other non-mandatory attributes shall

be set to their default value. Since the Linked

attribute

is set to FALSE, the new recipe may not be executed as

a main recipe. New recipes must be uploaded to a

designated originating namespace for management

purposes and subsequently downloaded after they have

been linked.

11.2.10.3 Building Derived Form Recipes — A new

recipe, with a new identifier, is also originated if recipe

executor builds a derived object form recipe from an

existing source form recipe. Requirements for the

derived object form recipe are defined in Section

11.2.2.1.

The manager of the originating namespace shall be

notified when a derived object form recipe is built from

a source form recipe where ExecChgCtrl

requires

notification of change for the original source form

recipe.

11.2.10.4 Saving Last Value — Saving the most recent

settings specified by the user in the attribute ExecLink-

Param is a protected activity requiring explicit

permission in ExecChgCtrl

. A change notification

requirement in ExecChgCtrl

applies to the change of

this attribute.

Parameter values in ExecLinkParam

are overridden by

any parameter settings specified by the user at the time

a recipe is selected. In this case, the last value of each

parameter is stored in the appropriate parameter

definition in the ExecLinkParam

attribute. If change

notification is specified, the originating namespace

shall be notified of this change. The attributes

ExecLength and ExecChgTime shall be updated

whenever this change is made. The body of the recipe

in execution recipe storage shall not be changed for this

purpose.

11.2.10.5 Change Notification — If ExecChgCtrl requires that the originating namespace be notified of changes,

the notification service RMEChange is sent to the specified namespace indicating the type of change that has

occurred.

Figure 11.3

RMEChange Message Flow

The recipe executor may or may not have direct communication links with the namespace itself. However, in this

case, the necessary links may be assumed to exist with the supervisor or other owner of the recipe executor, or it

would not be possible for recipes to be downloaded in the first place.

The originating namespace, on receipt of a change notification, is responsible for uploading the changed recipe and

for synchronizing through the service RMERename any change in identifier that might result from changing a write-

protected recipe.

11.3 Table of Operations — Table 11.1 lists all the operations defined for recipes and namespaces.

The column labeled "Rqmt" indicates those operations that are required for fundamental compliance to the RMS

recipe execution resource.

Table 11.1 Recipe Executor Operations

Operation Description Rqmt

Recipe download and verify Transfer execution recipe to local storage. If the recipe is unverified, then verify it

at this time.

Recipe verify Verify a stored execution recipe. Y

Recipe unload Transfer a recipe from local storage. Required if the execution process modifies an

executed recipe or if the recipe executor is able to create recipes.

Recipe rename Change the recipe’s identifier. Y

Get available storage Calculate the amount of storage available for a single execution recipe, exclusive

of formatting overhead.

Recipe delete Delete a recipe from local storage. Y

Recipe select Select recipes for execution. Y

Recipe deselect Deselect one or more recipes. Y

Get recipe descriptor Get the descriptors of a specified execution recipe. Y

Change notification Inform the originating recipe that a recipe has been originated or changed.

Required if the recipe executor is able to make a change protected by

ExecChgCtrl

or to originate a recipe.
