SEMI E130-1104 © SEMI 2003, 2004 14
90 deg. 270 deg.
180 deg.
0 deg.

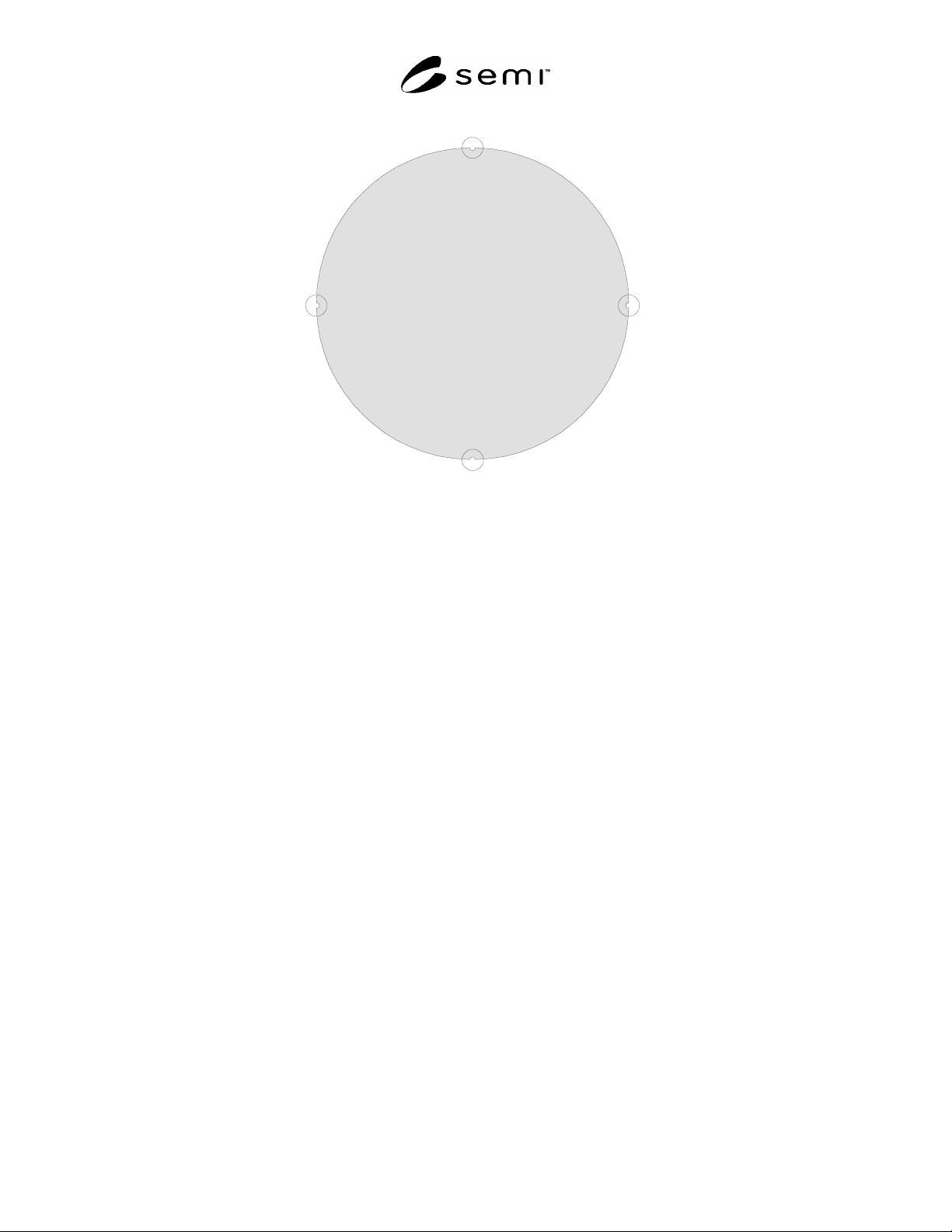

Figure 6
Orientation of the Substrate Notch
18.8 Orientation Attributes
18.8.1 Orientation — Identifies the orientation of the fiducial when defining the coordinate system on a substrate.
This parameter in conjunction with the OriginLocation recipe attribute determines the coordinate and size attributes
of devices on a substrate.
18.8.2 OrientationOnChuck — Identifies the orientation of a substrate loaded on the chuck. This attribute does not
affect the coordinate and size attributes of devices on a substrate.
18.9 Example Coordinate References — The values presented in this section are for demonstration purposes
(measurements are not exact).

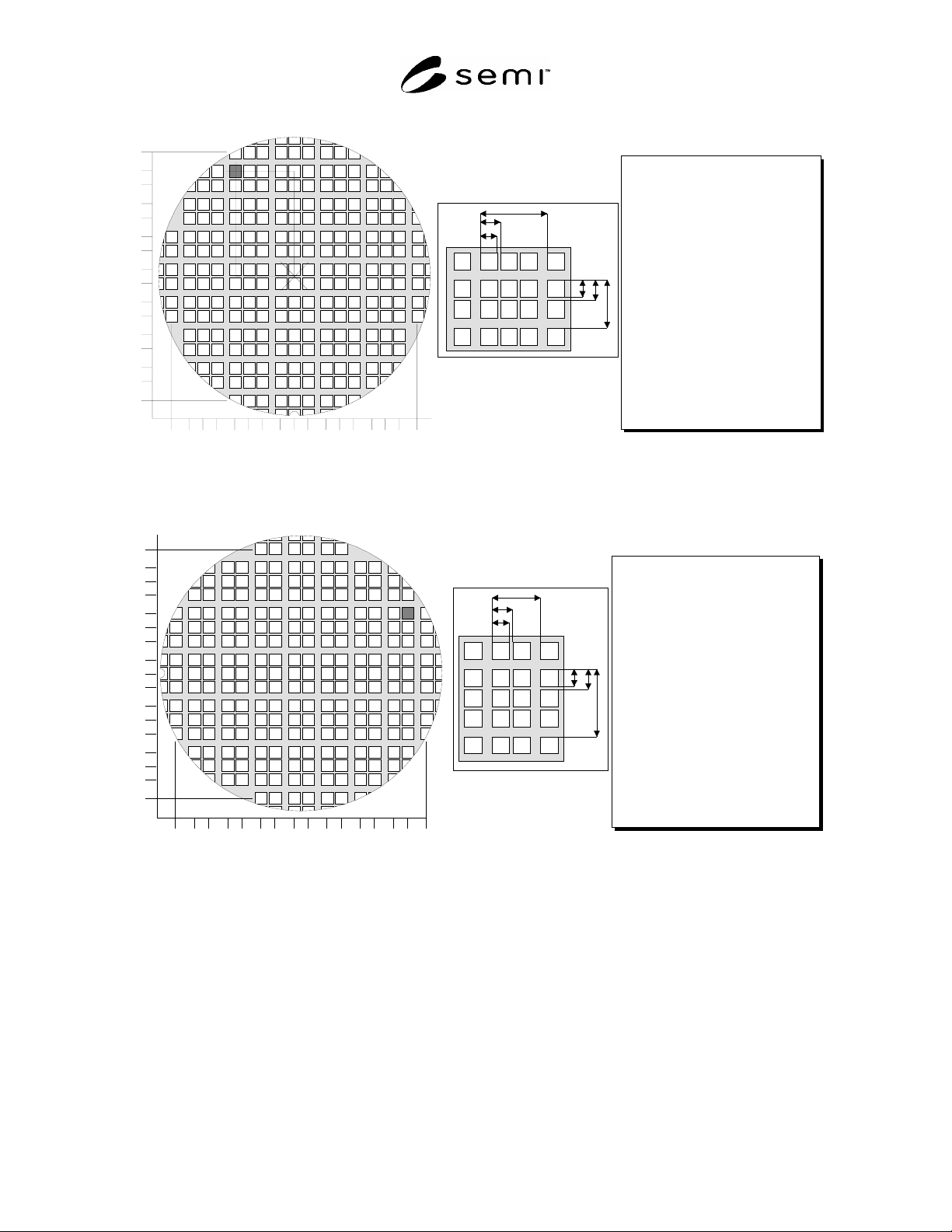

18.9.1 Orientation — The recipe attributes presented in Figure 7 reflect an Orientation attribute setting of 0º. The
recipe attributes presented in Figure 8 reflect an Orientation attribute setting of 90º.
SEMI E130-1104 © SEMI 2003, 2004 15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1234567891011121314151617
A
B
C
DEF
OriginLocation = 3
Orientation = 0
ReferenceDeviceX = 5
ReferenceDeviceY = 15
RefDeviceMatrixX=1
RefDeviceMatrixY=2
ReferenceDevicePosX = -64,646.45
ReferenceDevicePosY = 113,131.13
DeviceSizeX = C
DeviceSizeY = D
MatrixSizeX = A
MatrixSizeY = F
MatrixDeviceRows = 2
MatrixDeviceCols = 3
StepSizeX = B
StepSizeY = E
Rows = 16
Columns = 17
Figure 7
Example Coordinates Orientation = 0
123456789
1011 1213 1415 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
D
E
F
ABC
OriginLocation = 3
Orientation = 90
ReferenceDeviceX = 15
ReferenceDeviceY = 13
RefDeviceMatrixX = 2
RefDeviceMatrixY = 3
ReferenceDevicePosX = -64,646.45
ReferenceDevicePosY = 113,131.13
DeviceSizeX = D
DeviceSizeY = C
MatrixSizeX = F
MatrixSizeY = A
MatrixDeviceRows = 3
MatrixDeviceCols = 2
StepSizeX = E
StepSizeY = B
Rows = 17
Columns = 16
Figure 8
Example Coordinates Orientation = 90

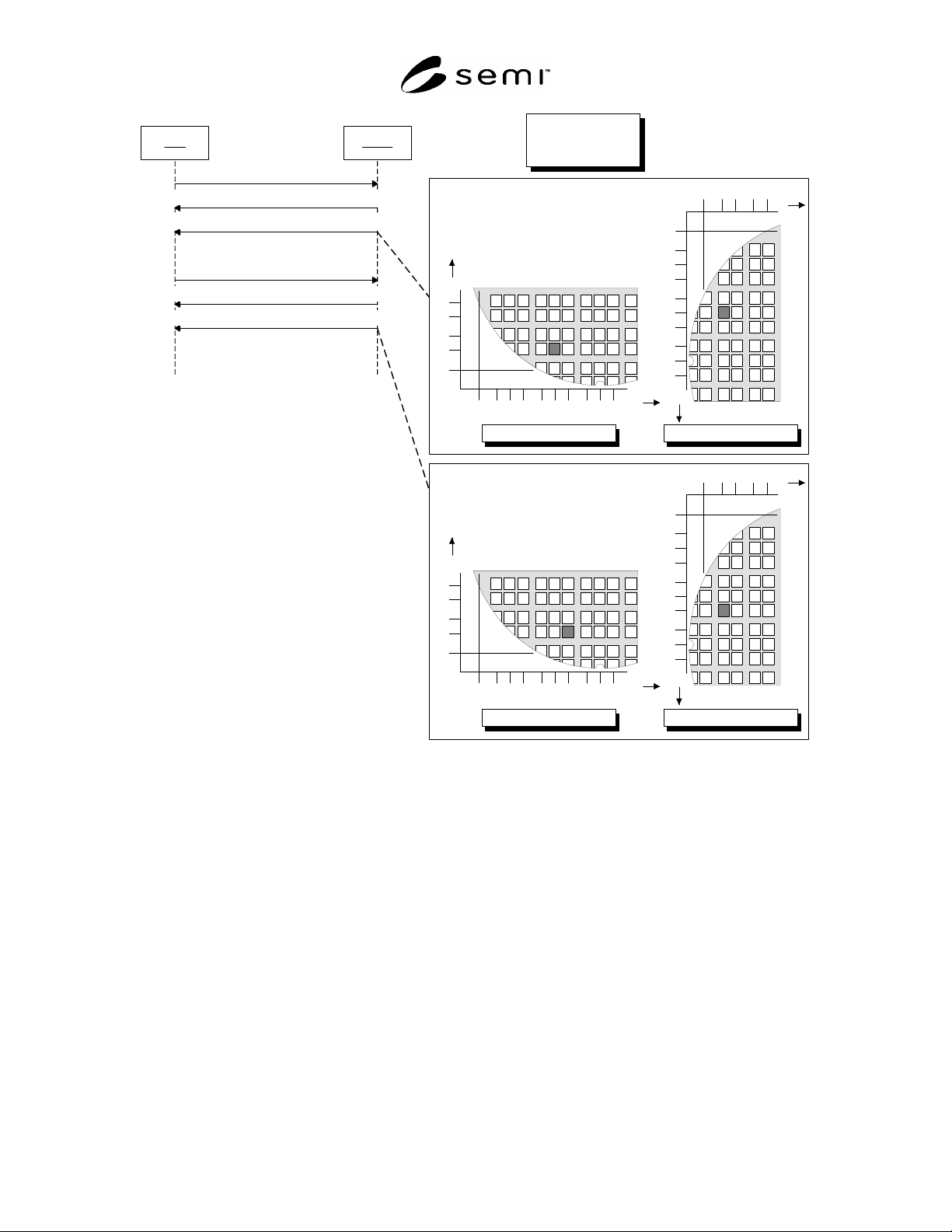

18.9.2 Orientation on Chuck — The following example demonstrates the effect of probing a substrate with different
settings of the OrientationOnChuck recipe attribute. The OrientationOnChuck attribute has no impact on the
coordinate values communicated between the host and the equipment.
SEMI E130-1104 © SEMI 2003, 2004 16
Host Prober
MOVE-ABS(X = 6, Y = 2)
PS: AWAITING COMMAND to MOVING XYZ()
PS: MOVING XYZ to AWAITING COMMAND(X = 6, Y = 2)
Recipe Parameters:
Orientation = 0
OriginLocation = 3
MOVE-ABS(X = 7, Y = 2)
PS: AWAITING COMMAND to MOVING XYZ()
PS: MOVING XYZ to AWAITING COMMAND(X = 7, Y = 2)
1
2
3
4
5
12345678910
X
Y
OrientationOnChuck = 0
12345
1
2
3
4
5
6
7
8
9
10
Y
X
OrientationOnChuck = 90
1
2
3
4
5
12345678910
X
Y
OrientationOnChuck = 0
12345
1
2
3
4
5
6
7
8
9
10
Y
X
OrientationOnChuck = 90
Figure 9
Example OrientationOnChuck
19 Collection Event List
19.1 Requirements
19.1.1 All GEM-required events are required by the PSEM300. Since Processing State Model is required by the
PSEM300, all state transitions are required collection events.
19.1.2
All GEM-required events associated with the Communications, Alarm, and Spooling State Models are
required. This section of the PSEM300 lists only those collection events that are not associated with a change of
state or those requiring specific data variables or reports as defined in the PSEM300.
