SEMI G69-0996 © SEMI 1996, 2004 6 Figure 4 Measurement of Pre-Crack Length 11.3.2 Test Procedure 11.3.2.1 Attach support fixture and load wedge to the tensile te ster. 11.3.2.2 Place the sample on the support fixture w i…
5 SEMI G69-0996 © SEMI 1996, 2004
9.4 Set the transfer molding pressure, transfer time and
cure time to the following recommended molding
conditions. If the condition is not suitable for the
material, the condition should be agreed between
customer and vendor.
Molding condition
Cure temperature 170–180°C
Cure time 120 sec.
Molding pressure 6.8–7.8 MPa (70–80 kgf/cm
2
)
9.5 Mold all the required samples.
9.6 Remove the samples from the molds.
NOTE 3: After removing the samples from the molds, natural
cooling of the samples is recommended.
9.7 Post mold cure the samples at the following
recommended conditions.
Post-cure condition
Temperature
175 ± 5°C
Time 4–8 hours
9.8 Store the samples and record the storage
conditions.
9.9 Three-Point Bending Samples
9.9.1 In addition to the treatment mentioned in Section
10.1.1, and to facilitate cracking during the three point
bending method, apply a thin layer of mold release to
on end of the leadframe sample in order to form a “pre-
crack” condition (i.e., the molding compound will not
adhere to this section of the sample, see Figure 3).
NOTE 4: It is recommended that toluen-based thermosetting
silicone be used as a mold release agent to prevent molding
process contamination.
10 Calibration
10.1 Tensile Tester Calibration
10.1.1 Calibrate the tensile tester in accordance with
the manufacturer’s instructions.
11 Test Procedure
11.1 Shear Method
11.1.1 Attach the sample to the tensile test such that
shear may be applied.
11.1.2 Place the shear tool against the molding
compound formation and initiate a load at a constant
speed between 2–10 mm/min while recording the load
and displacement.
11.1.3 Record the peak load before the sudden drop in
applied load as the sample shears off the leadframe or
the molding compound breaks.
NOTE 5: Disregard any results which have the appearance of
sample slipping or shear tool riding over the molding
compound.
11.2 Pull Method
11.2.1 Attach the sample to the tensile tester such that
the leadframe may be pulled out of the molding
compound with a vertical pull action.
11.2.2 Attach the pulling grips to the leadframe and
initiate a load at a constant speed between 2–10
mm/min. while recording the load and displacement.
11.2.3 Record the peak load before the sudden drop in
applied load as the sample is pulled from the molding
compound samples.
NOTE 6: Disregard any results which have the appearance of
slippage of the sample or pulling grips.
11.3 Three-Point Bending Method
11.3.1 Measurement of the pre-crack length
11.3.1.1 Measure the pre-crack length using an
ultrasonic inspection technique (see Figure 4).
NOTE 7: The sample, in this case, is placed in the vessel
with the leadframe side up, and then secured with an adhesive
tape so that the water cannot penetrate into the interface area
created by the mold release.
SEMI G69-0996 © SEMI 1996, 2004 6

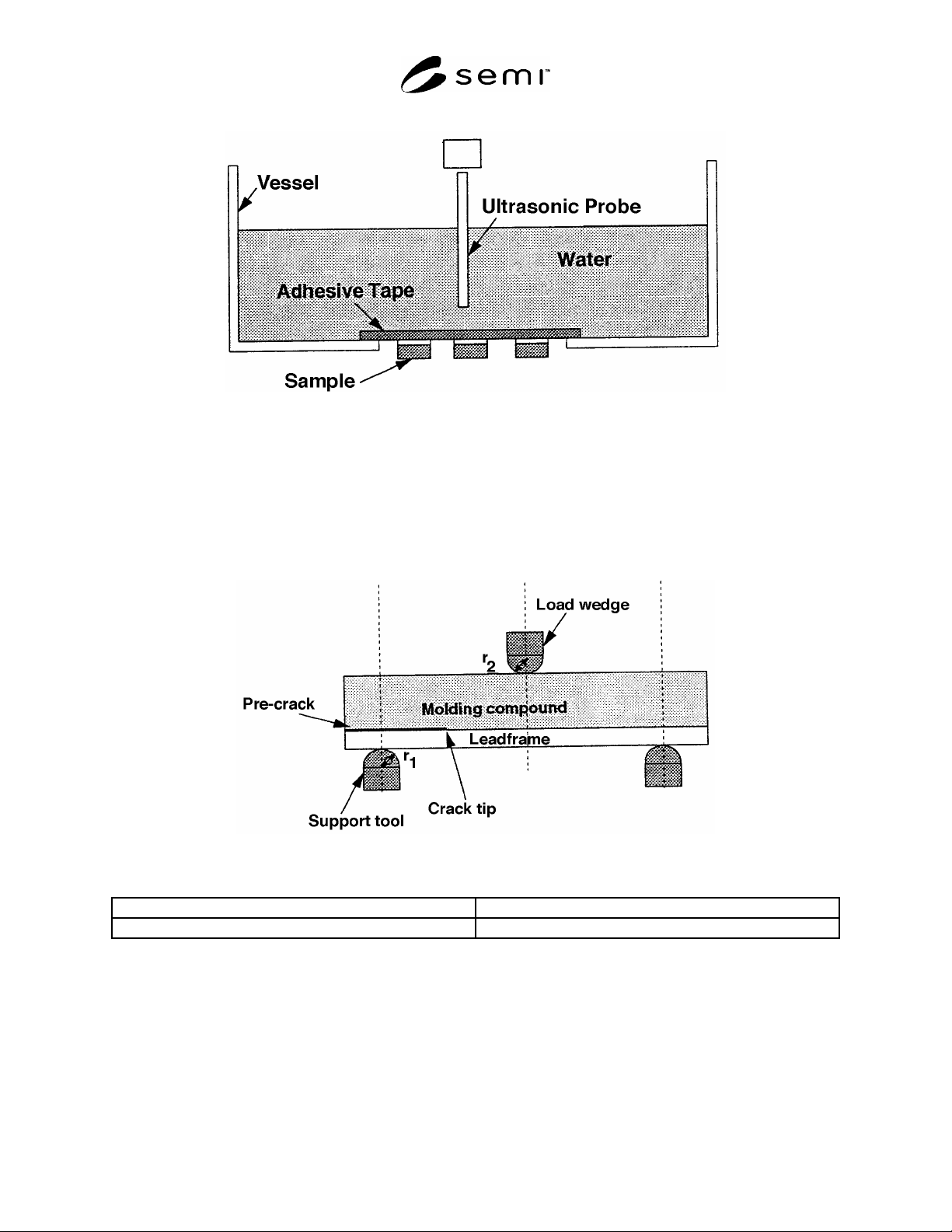

Figure 4
Measurement of Pre-Crack Length
11.3.2 Test Procedure
11.3.2.1 Attach support fixture and load wedge to the tensile tester.
11.3.2.2 Place the sample on the support fixture with the molded side up (see Figure 5).
NOTE 8: The support fixture tool should be located at a constant distance from the tip of pre-crack for every measurement.
Figure 5
Sample Setup
Radius of support tool r
1
5–8 mm
Radius of load wedge r
2
2–5 mm
11.3.2.3 Place the load wedge in contact with the molded surface and initiate the loading at a constant speed
between 2–10 mm/min while recording the load and displacement.
11.3.2.4 Record the peak load before the sudden drop in applied load.
11.3.2.5 Repeat the test with another sample which has the leadframe side up.
7 SEMI G69-0996 © SEMI 1996, 2004
12 Calculation
12.1 Shear and Pull Method
12.1.1 The adhesive strength is calculated as follows:
12.1.1.1 Adhesive Strength (N/mm
2
) = Peak Load (N)/Nominal Adhesive Area (mm
2
)
12.2 Three-Point Bending Method
12.2.1 Apparent Adhesive Strength — Apparent adhesive strength including residual stress, is calculated using the
stress intensity factor K
i
as follows:
K
i
4 10
6
cosh(
)
G
p
1
p
a
1
a
where
G=3
1
t
p
3
p
t
p
3
a
t
p
p
t
a
a
k
P
2
a
2
2b
2
k=4t
p
t
a
p
a
t
p
t
a
2
t
p
2
p
t
a
2
a
2
1
2
ln
p
p
1
a
a
a
1
p
j
3 4
j
(j = p or a)
P : Peak load (N)
a : Pre - crack length (m)
b : Sample width (m)
t
p
: Thickness of molding compound (m)
t
a
: Thickness of leadframe (m)
p
: Young' s modulus of molding compound (Pa)
a
: Young' s modulus of leadframe (Pa)
p
: Shear modulus of molding compound (Pa)
a
: Shear modulus of leadframe (Pa)
p
: Poisson' s ratio of molding compound
a
: Poisson' s ratio of leadframe
