SEMI G76-0299 © SEMI 1999 12
(3) Measurement As shown in Figure 9, place
on a flat surface for more than 12 hours and
calculate the number of points off the flat
surface less than 2 mm high.
8.8.4 Camber
(1) Equipment Use a scale that measures at
least 1 mm increments.
(2) Material Cut a section of more than 30
cm, but less than 100 cm in length of TCP
polyimide adhesive tape as received.
(3) Measurement As shown in Figure 10,
connect corners of the tape in a straight line,
and measure the deviation from the line to
the edge of the tape at the center.
8.8.5 Twist
(1) Equipment Use a protractor that measures
at least 1 degree increments.
(2) Material Cut a section of 1 meter in
length of TCP polyimide adhesive tape as
received.
(3) Measurement Hang the tape vertically
and measure the angle of twist of the bottom
edge as opposed to the top edge.
8.8.6 Defects
(1) Equipment Use a 10 power magnifying
glass or naked eye.
(2) Material Use TCP polyimide adhesive
tape as received. The length should be
determined between the user and supplier.
(3) Measurement Perform a check on defects
against a limit sample determined by the
user and supplier. Unless otherwise
specified, the " Admixture Measurement
Table" from the JIS P-8101 standard
(Finance Ministry Printing Press) is
recommended.
9. Product Labeling
Note the following items on the product label:
(1) Type Name
(2) Product Width
(3) Product Length
(4) Lot Number
10. Packing and Package Labeling
10.1 Packing Pack the product with sufficient
packing material to prevent any effects from external
impact, moisture, etc.
10.2 Package Label Note the following items on
the packaging label:
(1) Product Name
(2) Type Name
(3) Manufacturer' s Name
(4) Product Width
(5) Product Length
(6) Lot Number
(7) Storage Conditions
11. Related Documents
11.1 JIS Standards
C-6471 Test Method of Copper-Clad Laminates
Flexible Printed Wiring Boards
K-6911 Testing Methods for Thermosetting Plastics
K-7209 Testing Methods for Water and Boiling
Water Absorption of Plastics
P-8145 Testing Method of Dirt in Paper and
Paperboard
P-8208 Method of Testing Dirt, Sheaves and Specks
of Paper Pulp
11.2 ASTM Standards
2
D-150 Standard Test Methods for A-C Loss
Characteristics and Permittivity (Dielectric Constant) of
Solid Electrical Insulating Materials
D-257 Standard Test Methods for D-C Resistance or
Conductance of Insulating Materials
D-570 Standard Test Methods for Water Absorption
of Plastics
D-638 Test for Tensile Properties of Plastics
D-1825 Standard Practice for Etching and Cleaning
Copper-Clad Electrical Insulating Materials and
Thermosetting Laminates for Electrical Testing
2 American Society for Testing Materials, 100 Barr Harbor Drive,
West Conshohoken, PA 19428-2959
SEMI G76-0299 © SEMI 1999 13
11.3 IEC Standards
3
249-1 Base Materials for Printed Circuits, Part 1: Test Methods
326-2 Printed Boards, Part 2: Test Methods
674-2 Specification for Plastic Films for Electrical Purposes, Part 2: Method of Test
11.4 UL Standard
4
94-1991 Standard for Flammability Tests of Plastic Materials for Parts in Devices and Appliances

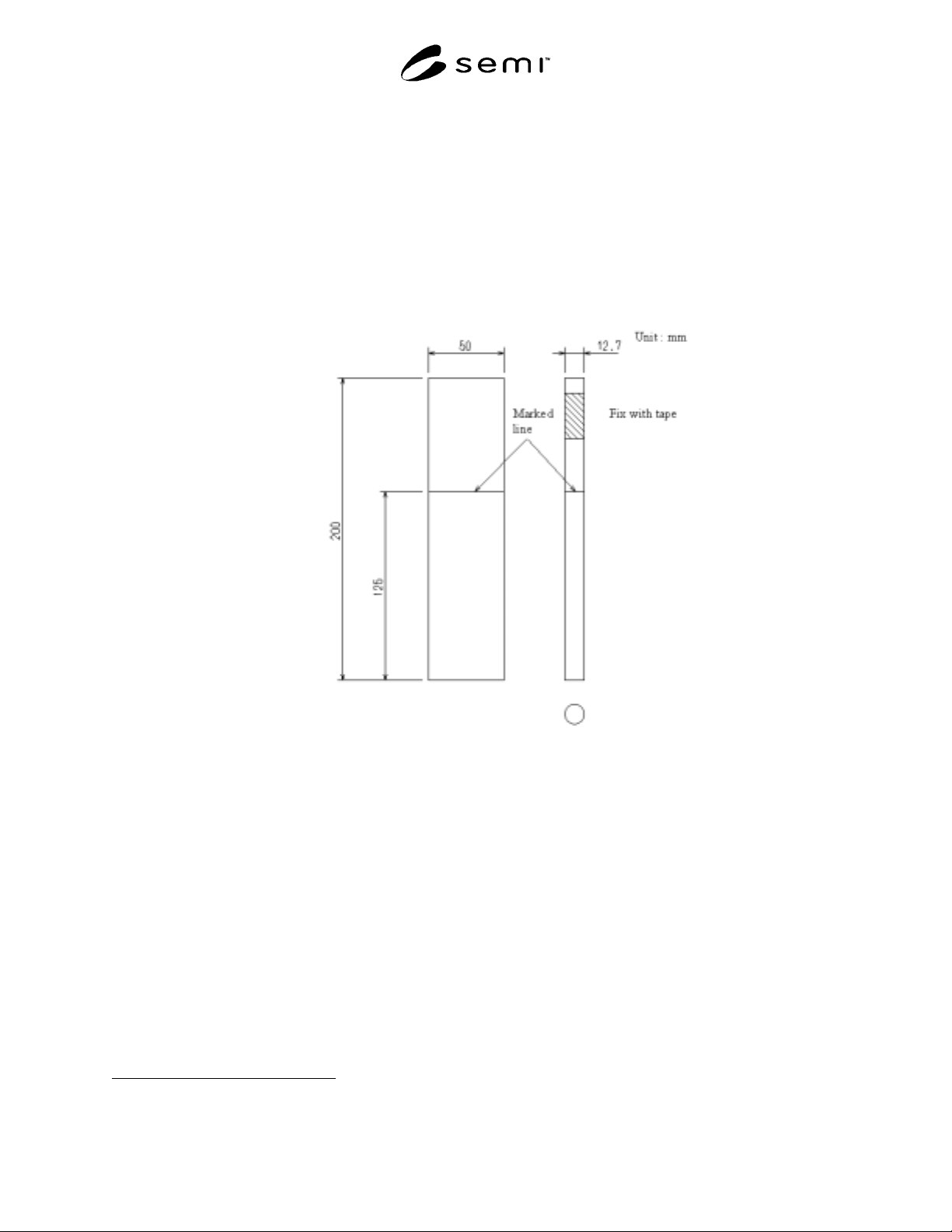

Figure 5
Test Specimen for Flammability
3 International Electrotechnical Commission, 3, rue de Varembé, P.O. Box 131, CH-1211 Geneva 20, Switzerland
4 Underwriters Laboratories, 333 Pfingsten Road, Northbrook, IL 60062-2096
SEMI G76-0299 © SEMI 1999 14

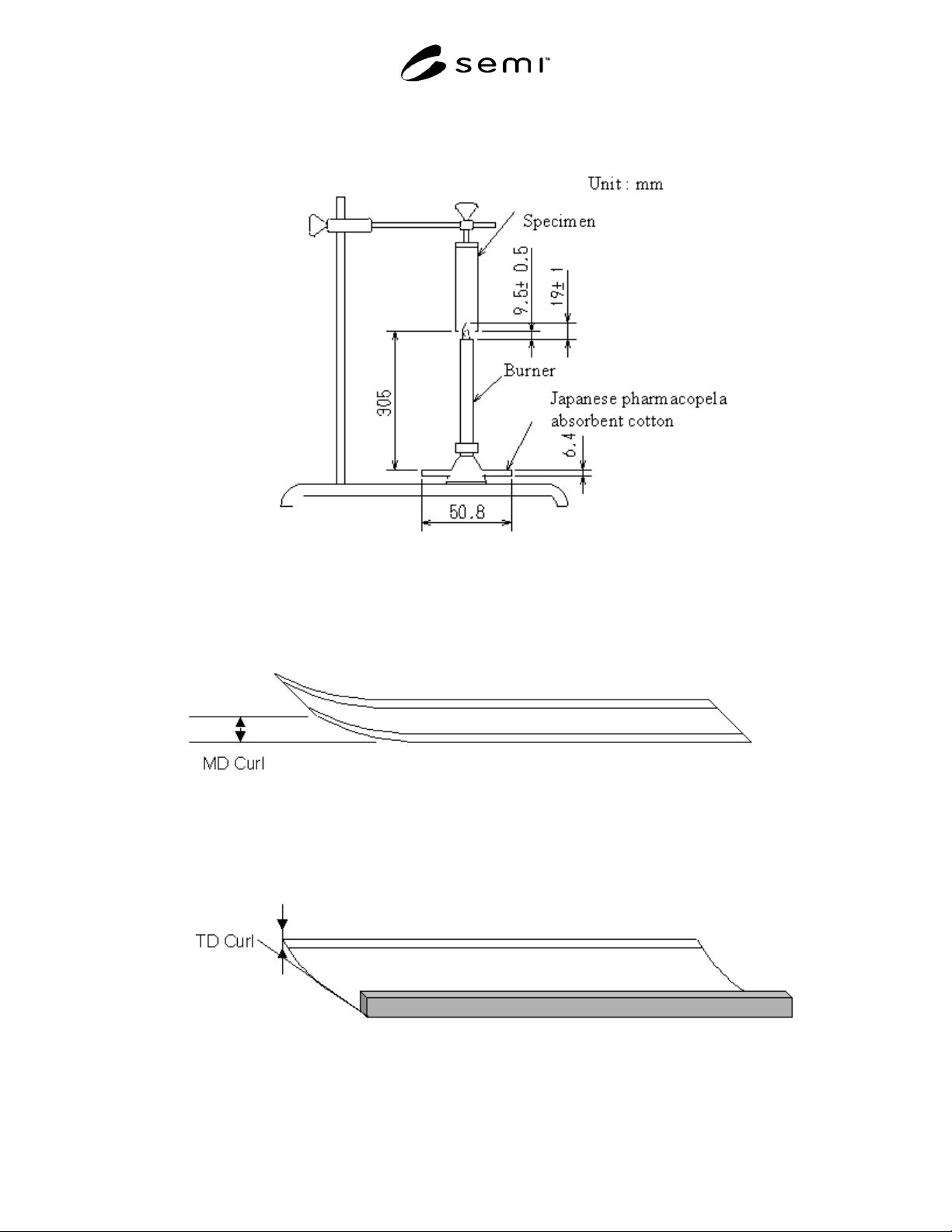

Figure 6
Measurement of Flammability
Figure 7
MD Curl
Figure 8
TD Curl
