8 Human-Readable Interpretation (HRI) Symbols 8.1 Each ba rcode symbol data field on th e customer field shall have an ass oci ated human-re adable data field either immediately above or below it. 8.1.1 Start and stop ch…

6.2.3.2 Quantity that are not filled by a message characters shall contain hyphen (-) as a place saver to that the

symbol always has exactly 7 characters.

6.3 Vendor company name and its logo mark; supplier’s ID may be included in the supplier’s field.

Table 1

Explanation Data Identifier No. of Characters

Part No. Customer part number. The number is assigned by the customer in the

ordering information.

P 15 max.

Lot No. Lot number is assigned by the supplier to identify or trace a unique

group of the entries.

1T 12 max.

Quantity Quantity and unit within the package. The unit uses characters listed in

Appendix D of ANSI/FACT-1.

7Q 7

Production Data The Date of production. The date is shown by “YYMMDD”. D 6

Supplier’s Field Supplier’s name, supplier’s company logo mark, supplier’s code

(agreed between supplier and customer) country, etc.

- (Option)

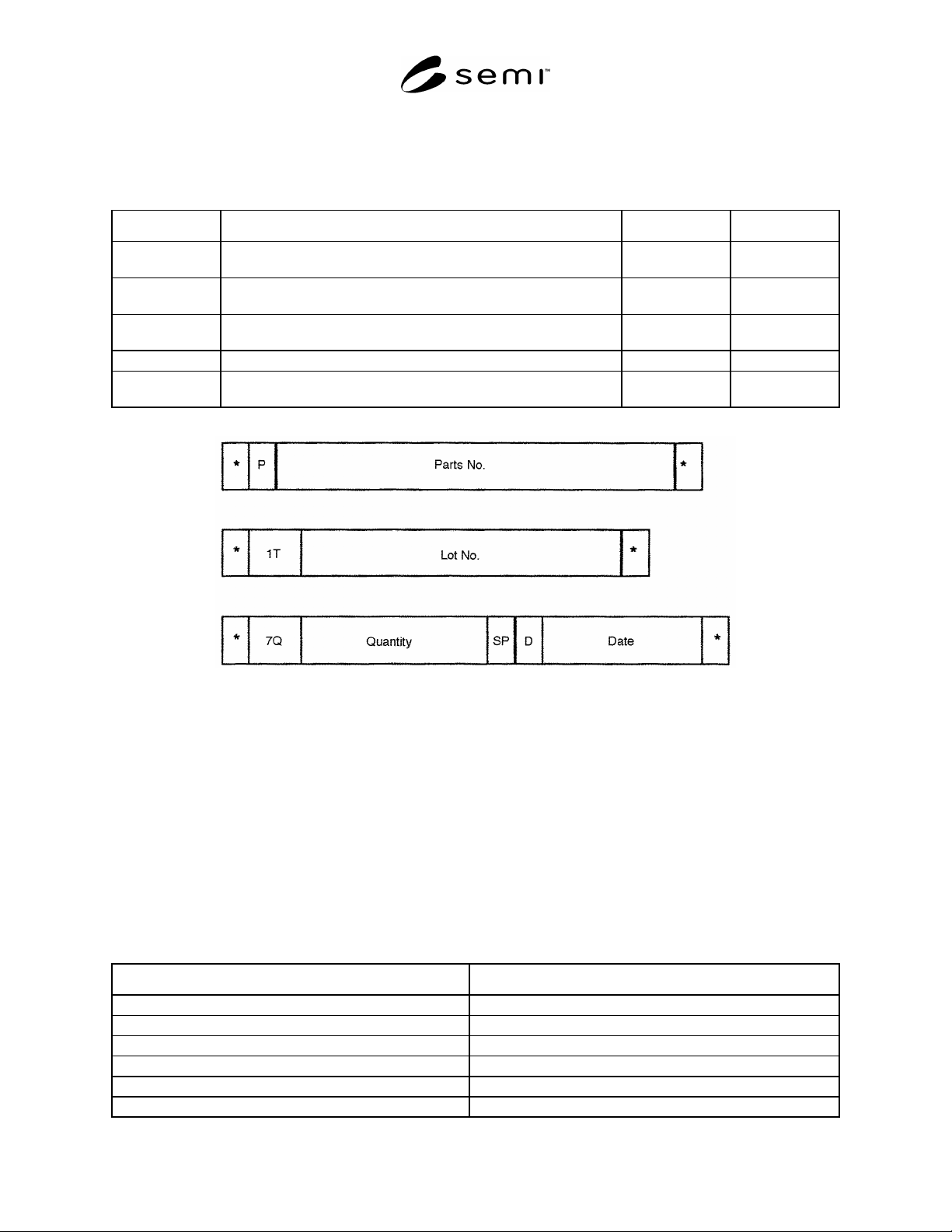

Figure 2

Barcode Arrangement

7 Barcode Character

7.1 The barcode characters specified in AIM USS-39 shall be used.

7.2 Character Set — The Code 39 character set consists of 43 characters: 0–9, A–Z, ., $, /, %, and space. In

addition, an asterisk (*) is used only for both the stop and stop characters.

7.3 Print Quality — The Code 39 print quality shall be B/03/630 or better in accordance with ANSI X3.182. To

assure reading efficiency, the minimum reflectance of the quiet zones shall be 60%, the minimum reflectance of

spaces shall be 51%, and the maximum reflectance of bars shall be 10%.

7.4 Symbol Dimensions — Barcode symbol dimensions shall be as listed in Table 2.

Table 2 Symbol Dimensions

Code 39 Dimension

Narrow Element Width 0.250 mm

Wide Element Width 0.625 mm (Element Width Ratio 1:2.5)

Space between Characters 0.250 mm

Character Height 8.0 mm

Quiet Zone 5.0 mm (after and before barcode symbol)

Space between Barcode Field 5.0 mm

3 SEMI G71-0996 © SEMI 1996, 2004

8 Human-Readable Interpretation (HRI) Symbols

8.1 Each barcode symbol data field on the customer field shall have an associated human-readable data field either

immediately above or below it.

8.1.1 Start and stop characters shall not be included, but the data field identifier shall be included.

8.2 The height of human-readable characters shall be 3.0 mm.

8.3 The spaces above and below the human-readable characters shall be 1.0 mm.

9 Dimensions and Placement of Data Field on Label

9.1 The size of barcode label shall be 42 mm in height and 120 mm in width.

9.2 The dimensions and placement of data field on label are shown in Figure 3.

9.3 The barcode and human-readable characters shall be placed within this area of the label as indicated in Figure 3.

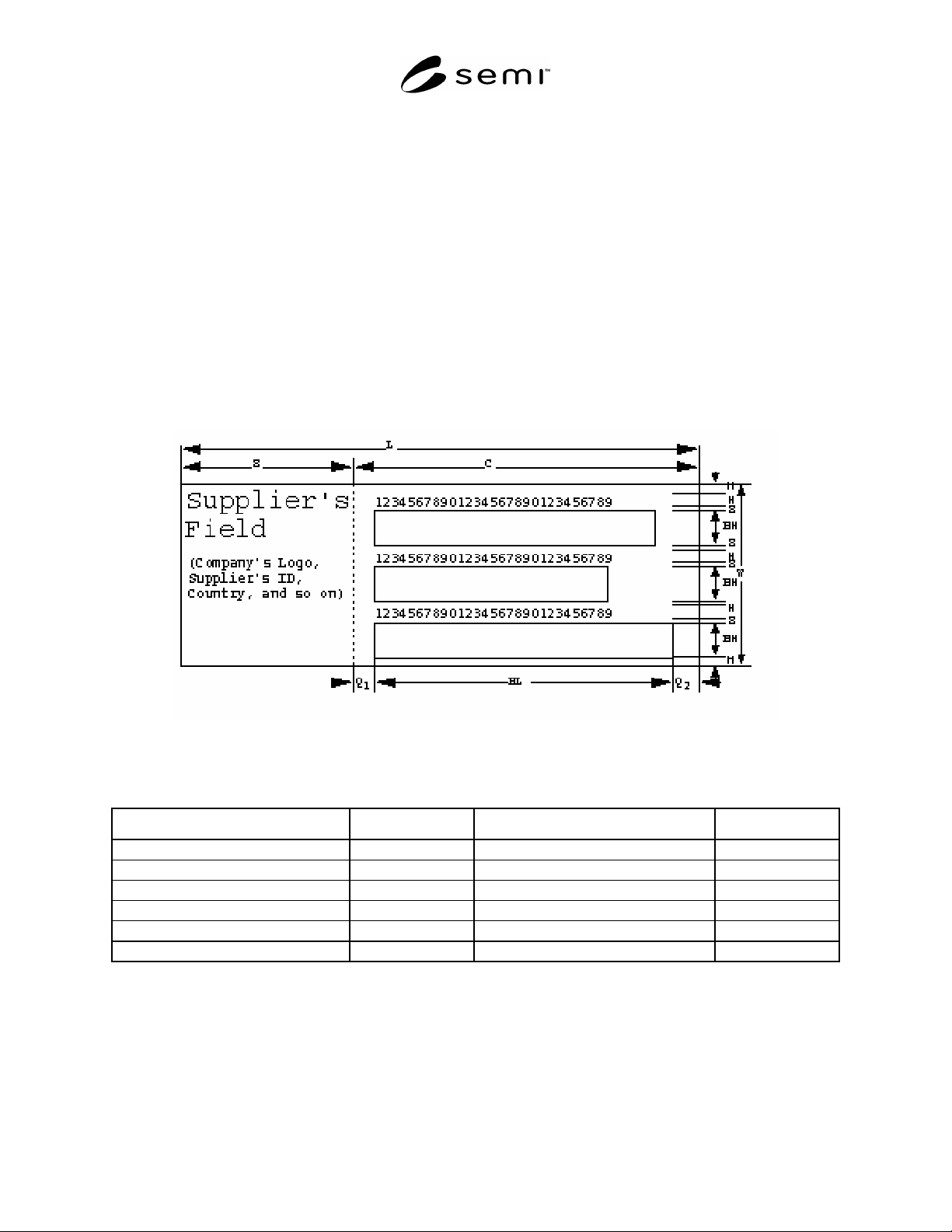

Figure 3

Dimensions and Placement of Data Field on Label

Horizontal Dimension Value (mm) Vertical Dimension Value (mm)

L 120.0 W 40

S 40.0 M 2.0

C 80.0 H 3.0

BL 68.625 S 1.0

Q1 5.0 BH 8.0

Q2 6.375

10 Barcode Label Location

10.1 The barcode label shall be located on the end of the packages for easy identification when the packages are

temporarily stored in the storage shelf.

11 Label Material and Adhesive

11.1 Label material should not generate particles.

11.2 Label adhesive should not prohibit recyclability of the shipping packages.

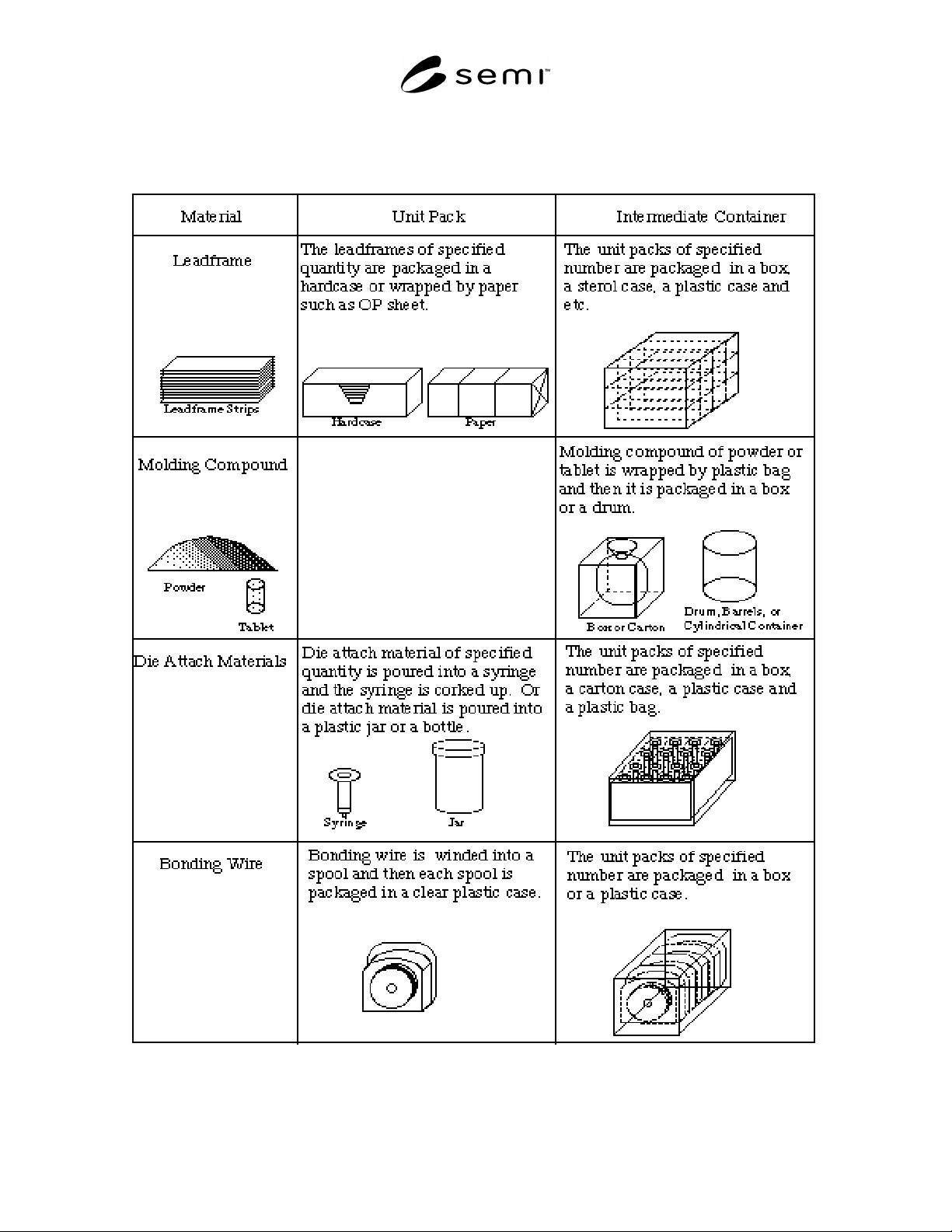

Figure 4

Definition of Packaging Forms for Leadframe, Molding Compound, Die Attach Material, and Bonding Wire
