SEMI E77-1104 © SEMI 1998, 2004 8
14.2 Conversion Factors — The conversion factor between any Gas A and any Gas B at each setpoint is calculated
as follows:
conversion
f
acto
r
(Gas
A
/ Gas B) @
X
%
s
etpoint =
average actual flow @ X% setpoint on Gas A
average actual flow @ X% setpoint on Gas B
where X = setpoint value
14.3 Calculate the conversion factors for the gas tested and record in Table 3.
Table 3 MFC Conversion Factors for Each Setpoint
MFC Mfg/Model/Serial # ____________________________________
Name Plate Gas/Range ____________________________________
Test Gas ____________________________________
Temp ___________ Bar ___________ Date ___________
Factory Calibration Gas ____________________________________
Column A
D.U.T. Setpoint
(% F.S.)
Column B
CF (Gas A / Gas B)
100%
90
80
70
60
50
40
30
20
10
SEMI E77-1104 © SEMI 1998, 2004 9
14.4 Interpretation

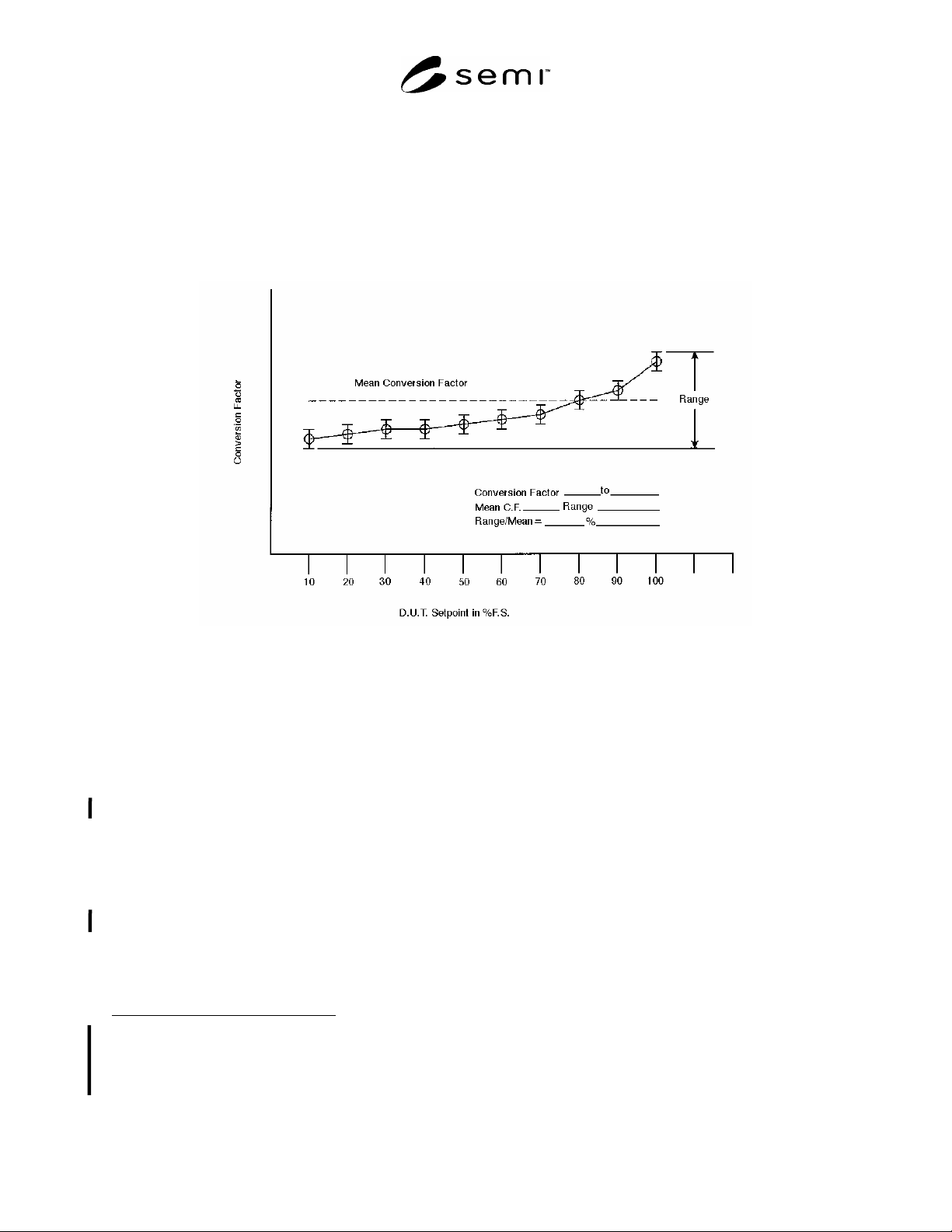

14.4.1 Figure 3 illustrates the conversion factor between two specific gases as a function of setpoint. It may be used
to accurately map from one gas to the other and may predict the flow error that will result if the average conversion
factor is used.
Nameplate Gas/Range ___________ Test Gas ________________ Date _____________
MFG/Serial # _________________ Barometric Pressure _______________
Inlet Pressure _________________ Temperature _____________________
Figure 3
Conversion Factors vs. D.U.T. Setpoint
15 Reporting Results
15.1 MFC Conversion Factors
15.1.1 Plot the conversion factor from Gas A to Gas B against the D.U.T. setpoint. Note the mean value and range
of values (see Figure 3).
16 Related Documents
16.1 ANSI Standards
1
ANSI C39.5 — Safety Requirements for Electrical and Electronic Measuring and Controlling Instrumentation
ANSI C42.100 — Dictionary of Electrical and Electronics Terms
ANSI MC4.1 — Dynamic Response Testing of Process Control Instrumentation
16.2 IEC Standard
2
IEC 546 — Methods of Evaluating the Performance of Controllers with Analogue Signals for Use in Industrial
Process Control
1 American National Standards Institute, Headquarters: 1819 L Street, NW, Washington, DC 20036, USA. Telephone: 202.293.8020; Fax:
202.293.9287, New York Office: 11 West 42nd Street, New York, NY 10036, USA. Telephone: 212.642.4900; Fax: 212.398.0023, Website:
www.ansi.org
2 International Electrotechnical Commission, 3, rue de Varembé, Case Postale 131, CH-1211 Geneva 20, Switzerland. Telephone:
41.22.919.02.11; Fax: 41.22.919.03.00, Website: www.iec.ch
SEMI E77-1104 © SEMI 1998, 2004 10
16.3 ISA Standard
3
ISA S51.1 — Process Instrumentation Terminology
16.4 MIL-STD
4
MIL-STD 45662 — Calibration Systems Requirements
NOTICE: SEMI makes no warranties or representations as to the suitability of the standards set forth herein for any
particular application. The determination of the suitability of the standard is solely the responsibility of the user.
Users are cautioned to refer to manufacturer's instructions, product labels, product data sheets, and other relevant
literature, respecting any materials or equipment mentioned herein. These standards are subject to change without
notice.
By publication of this standard, Semiconductor Equipment and Materials International (SEMI) takes no position
respecting the validity of any patent rights or copyrights asserted in connection with any items mentioned in this
standard. Users of this standard are expressly advised that determination of any such patent rights or copyrights, and
the risk of infringement of such rights are entirely their own responsibility.
3 Instrument Society of America, 67 Alexander Drive, Research Triangle Park, NC 27709, USA Telephone: 919.549.8411 Website: www.isa.org
4 United States Military Standards, Available through the Naval Publications and Forms Center, 5801 Tabor Avenue, Philadelphia, PA 19120-
5099, USA. Telephone: 215.697.3321
