SEMI E134.1-0305 © SEMI 2005 46
7.2.19.4.5 ObjTypeInstanceType — This global complexType is the XML Schema representation of the SEMI E134
ObjTypeInstance class. The following table describes the mapping of the UML class to this XML Schema
complexType
Table 94 Translation Table for ObjTypeInstanceType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
instanceId Text Attribute instanceId: xsd:string
7.2.19.4.6 ObjTypeRequestErrorType — This is a container class representing the errors that can be returned from
the ObjTypeRequest message. ObjTypeRequestErrorType has the ability to specify specific errors as described in
the following table. The following table describes the mapping of the UML class to this XML Schema
complexType
Table 95 Translation Table for ObjTypeRequestErrorType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
invalidSource Boolean Attribute invalidSource: xsd:boolean
invalidObjType Boolean Attribute invalidObjType: xsd:boolean
sourceDoesNotProduceObjType Boolean Attribute sourceDoesNotProduceObjType: xsd:boolean
7.2.20 GetCurrentPerformanceStatus
7.2.20.1 WSDL Operation Binding
7.2.20.1.1 See the operation binding for “GetCurrentPerformanceStatus” in E134-Equipment-Binding.wsdl. Key
information is shown for convenience in the following table.
Table 96 GetCurrentPerformanceStatus Operation Binding
SOAPAction
urn:semi-org:ws.E134-1.V0305.DCMEqp-binding:GetCurrentPerformanceStatus
Input Headers (WSDL Message, Required) E132HeaderMessage, required
Output Headers (WSDL Message, Required) E132HeaderMessage, required
7.2.20.2 WSDL Operation
7.2.20.2.1 See the portType operation definition for “GetCurrentPerformanceStatus” in E134-Equipment-
PortType.wsdl. Key information is shown for convenience in the following table.
Table 97 GetCurrentPerformanceStatus PortType Operation
Input Message Name GetCurrentPerformanceStatusRequest
Output Message Name GetCurrentPerformanceStatusResponse
7.2.20.3 WSDL Message(s)
7.2.20.3.1 See the message definitions for “E132HeaderMessage”, “GetCurrentPerformanceStatusRequest”, and
“GetCurrentPerformanceStatusResponse” in E134-Equipment-PortType.wsdl. Key information is shown for
convenience in the following table.
Table 98 DataCollectionManagement Binding
Message Name
Schema
Element Name
E132HeaderMessage auth:E132Header
GetCurrentPerformanceStatusRequest dcm:GetCurrentPerformanceStatusRequestType
GetCurrentPerformanceStatusResponse dcm:GetCurrentPerformanceStatusResponseType
SEMI E134.1-0305 © SEMI 2005 47
7.2.20.4 XML Schema Types

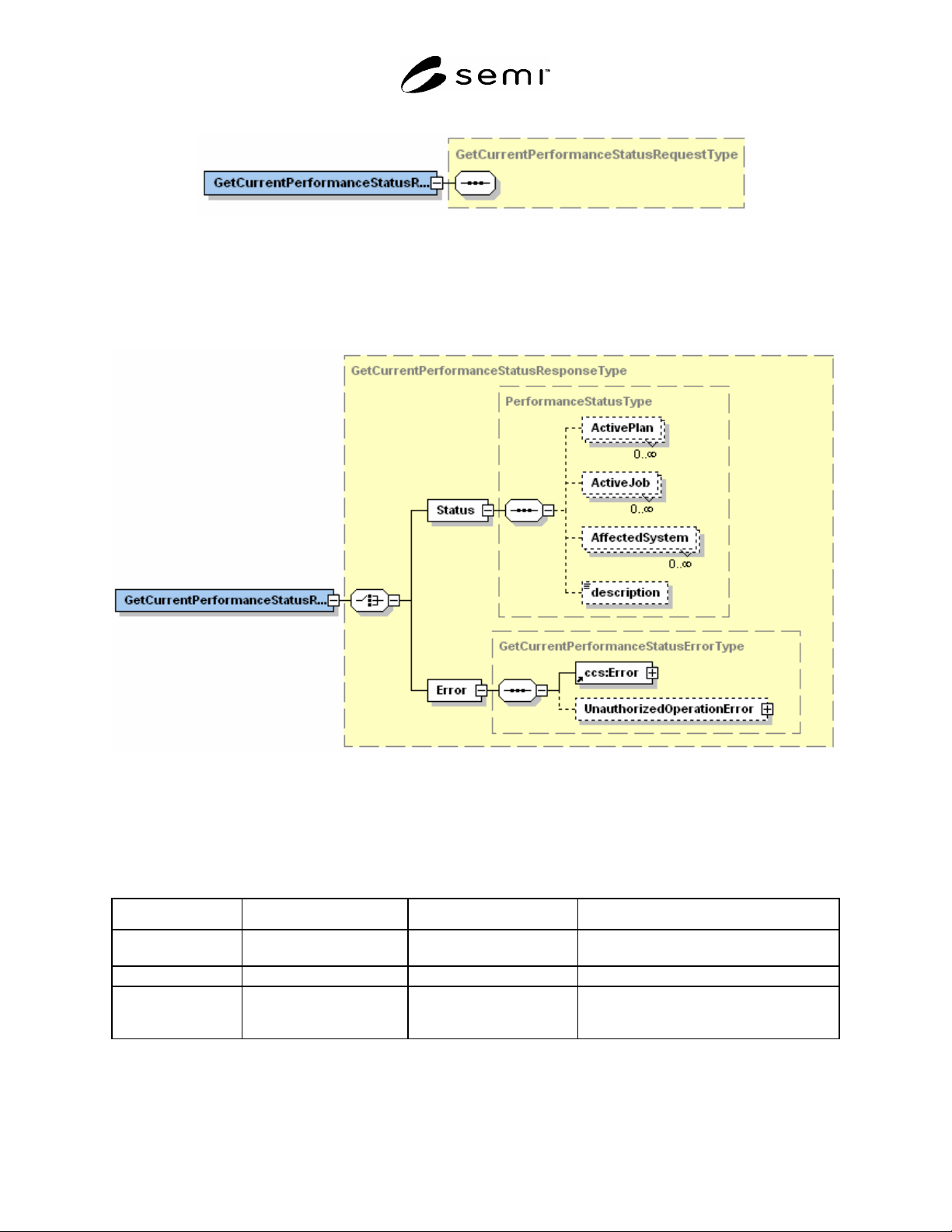

Figure 33
GetCurrentPerformanceStatusRequest
7.2.20.4.1 GetCurrentPerformanceStatusRequest — This global element acts as a top-level container entity
representing the SOAP body of a GetCurrentPerformanceStatus request. As defined in SEMI E134, this operation
has no input arguments.
Figure 34
GetCurrentPerformanceStatusResponse
7.2.20.4.2 GetCurrentPerformanceStatusResponse — This global element acts as a top-level container entity
representing the SOAP body of the response to an SEMI E134 GetCurrentPerformanceStatus request. It contains
either an element named “objTypeInstances” of complexType “ObjTypeResultArrayType.
Table 99 Translation Table for Output Arguments for the GetCurrentPerformanceStatus Operation
Argument Name Format XML Element or Attribute XML Name/Type
status One and only one element
of type PerformanceStatus
Element Status: dcm:PerformanceStatusType
error N/A Element ErrorType: ccs:Error
error Structured data, of type
UnauthorizedOperation
Element UnauthorizedOperationError:
eca:UnauthorizedOperationType, see
¶7.2.11.4.12
7.2.20.4.3 PerformanceStatusType — This global complexType is the XML Schema representation of the SEMI
E134 PerformanceStatus class. The following table describes the mapping of the UML class to this XML Schema
complexType.
SEMI E134.1-0305 © SEMI 2005 48
Table 100 Translation Table for PerformanceStatusType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
ActivePlans Unordered list of elements of
type DCPActivated
Element ActivePlans: dcm:DCPActivatedArrayType
as described in ¶7.2.14.4.3
ActiveJobs Unordered list of elements of
type ActiveJob
Element ActiveJobs: dcm:ActiveJobArrayType
AffectedSystems Unordered list of zero or more
elements of type
AffectedSystem
Element AffectedSystems:
dcm:AffectedSystemArrayType
timeLastEvaluated Text Attribute timeLastEvaluated: xsd:dateTime
isBelowThreshold Boolean Attribute isBelowThreshold: xsd:boolean
description Text Element description: xsd:string
7.2.20.4.4 ActiveJobType — This global complexType is the XML Schema representation of the SEMI E134
ActiveJob class. The following table describes the mapping of the UML class to this XML Schema complexType.
Table 101 Translation Table for ActiveJobType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
jobId Text Attribute jobId: xsd:string
jobType Text Attribute jobType: dcm:JobTypeEnumType
7.2.20.4.5 JobTypeEnumType — JobTypeEnumType is a string restricted to the following supported values.
Table 102 Supported Job Type Table for JobTypeEnumType
Supported JobTypes
urn:semi-org:E94:ControlJob
urn:semi-org:E40:ProcessJob
urn:semi-org:E30:ppSelect
urn:semi-org:E30:rcpSelect
7.2.20.4.6 AffectedSystemType — This global complexType is the XML Schema representation of the SEMI E134
AffectedSystem class. The following table describes the mapping of the UML class to this XML Schema
complexType.
Table 103 Translation Table for AffectedSystemType
Attribute or Role Name UML Type
XML Element or Attribute
(or Reference)
XML Name/Type
equipmentComponent Text Attribute equipmentComponent: xsd:string
description Text Attribute description: xsd:string
