SEMI S8-0705 © SEMI 1995, 2005 46 Section 6: Handle Design Section Indicator Figure 6.4 Ball handle 6.4.1 Ball handle diam eter Acceptance criteria: maximum 63 mm (2.5in.) minimum 19 mm (1.5 in.) Diameter 6.5 Pliers hand…

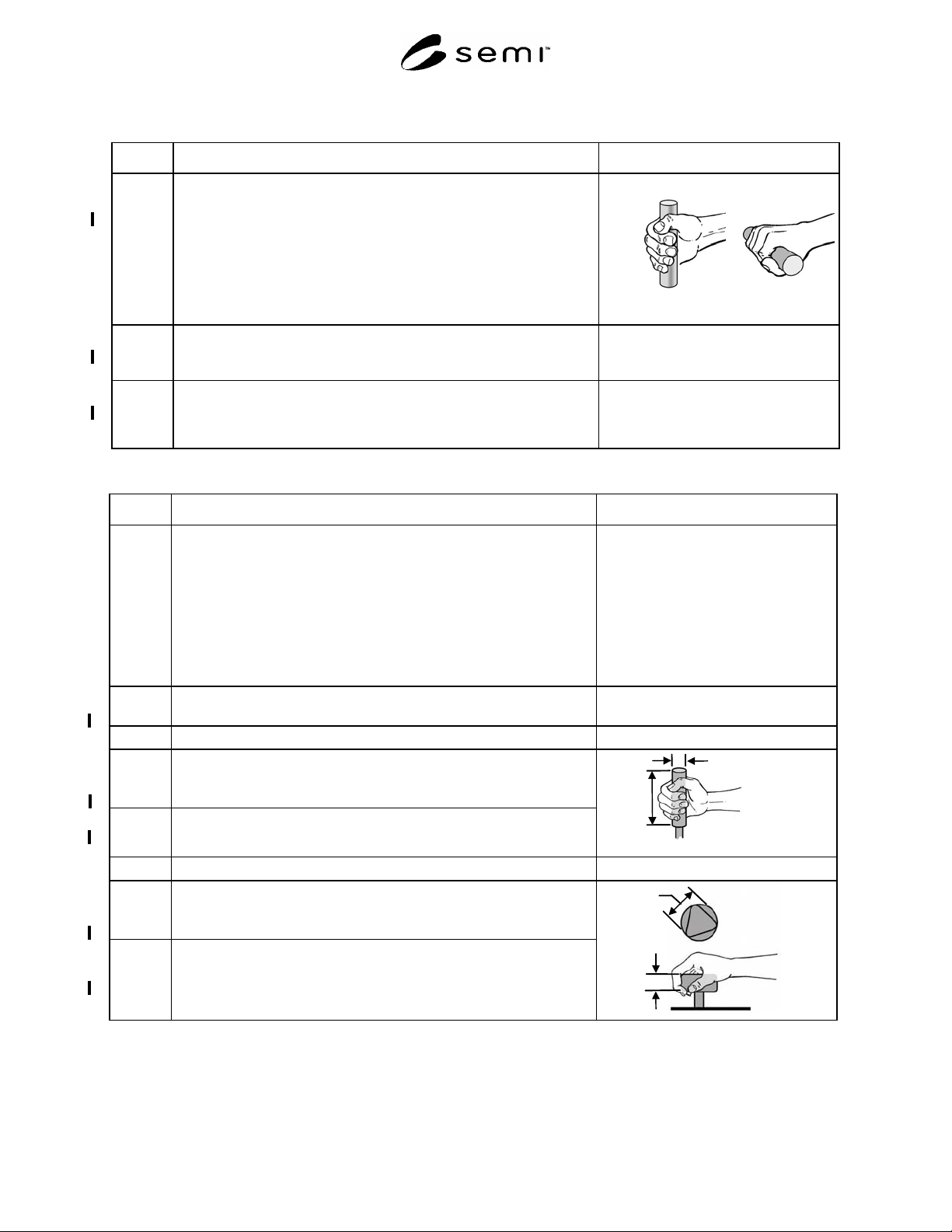

SEMI S8-0705 © SEMI 1995, 2005 45
Section 5: Manual Wafer Cassette Rotation Device Design
Section Indicator Figure
5.2 Hand grip(s) shall allow for a full “power grip” similar to grabbing a rung
on a ladder or holding a pistol.
Acceptance criterion: allows for a full power grip in either pronated (palm
facing down) or neutral (handshake position) posture.
NOTE A: Acceptable handle types include cylindrical, circular,
triangular, or enclosed.
NOTE B: See §6 for handle design recommendations.
Power Grips
5.3 Single hand lift force
Acceptance criterion: maximum 37.8 N (8.5 lbf). This value includes a
15% capacity reduction due to cleanroom glove use.
5.4 Two hand lift force
Acceptance criterion: maximum 64.5 N (14.5 lbf). This value includes a
15% capacity reduction due to cleanroom glove use.
Section 6: Handle Design
Section Indicator Figure
6.0 (Handle dimensions are correct for use of bare hand or use of typical
cleanroom gloves).
NOTE A: A recommended practice for selecting a handle design is to
first determine the force requirements before choosing a
handle design that is best suited for the intended forces,
motions and environment. Handle design recommendations
for various hand forces and handgrips are located in ¶¶6.2–
6.6.
NOTE B: Handles should anticipate the use of gloved hands.
6.1
Handle Surface finish:
Acceptance criterion: all edges radiused
6.2
Cylindrical handle
6.2.1
Cylindrical handle diameter (D).
Acceptance criteria: maximum 38 mm (1.5 in.)
minimum 25 mm (1.0 in.)
6.2.2
Cylindrical handle length (L)
Acceptance criterion: minimum 127 mm (5.0 in.)
Length
Diameter
6.3
Circular or triangular handle
6.3.1
Circular or triangular handle diameter (D)
Acceptance criteria: maximum 90 mm (3.5 in.)
minimum 50 mm (2.0 in.)
6.3.2
Circular or triangular handle height (thickness) (H)
Acceptance criteria: maximum 25 mm (1 in.)
minimum 19 mm (0.75 in.)
Thickness
Diamete
r

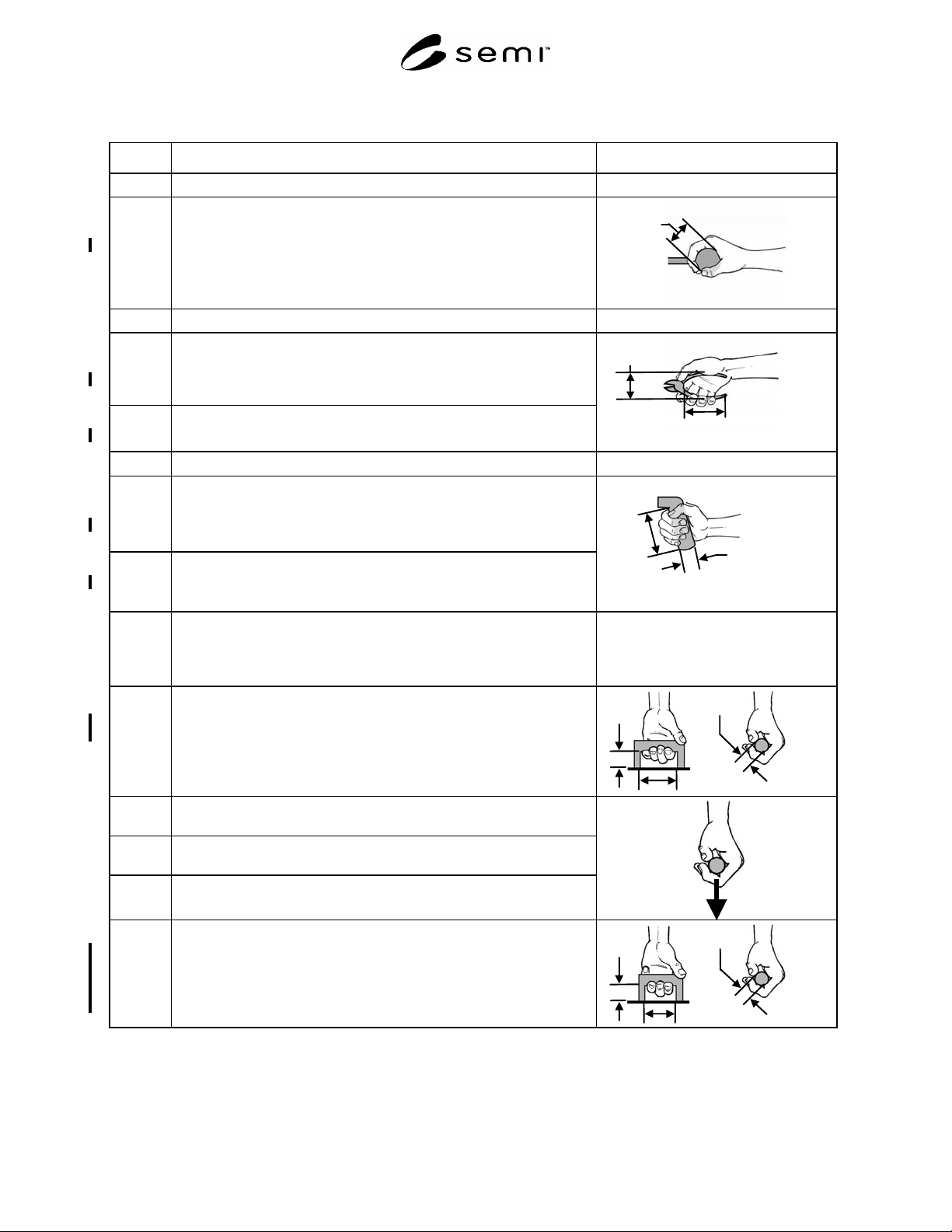

SEMI S8-0705 © SEMI 1995, 2005 46
Section 6: Handle Design
Section Indicator Figure
6.4
Ball handle
6.4.1
Ball handle diameter
Acceptance criteria: maximum 63 mm (2.5in.)
minimum 19 mm (1.5 in.)
Diameter
6.5
Pliers handle
6.5.1
Pliers handle grip span (S)
Acceptance criteria: maximum 89 mm (3.5in.) open
minimum 38 mm (1.5 in.) closed
6.5.2
Pliers handle grip length (L)
Acceptance criterion: minimum 127 mm (5 in.)
Handle
S
p
an
Handle
Len
g
th
6.6 Pistol grip handle
6.6.1 Pistol grip handle diameter (D)
Acceptance criteria: maximum 63 mm (2.5 in.)
minimum 38mm (1.5 in.)
6.6.2 Pistol grip handle length (L)
Acceptance criterion: minimum 127 mm (5.0 in.)
Length
Diameter
6.7 Enclosed handles
NOTE: Handle diameter refers to the surface of the handle presented
to the inside of the curled fingers. Enclosed handles need not
be made solely from cylindrical stock.
6.7.1 Enclosed handle, full power grip (suitcase handle)
Width (W): minimum 127 mm (5.0 in.)
Depth (D): minimum 45 mm (1.75 in.)
Diameter (d): maximum 25 mm (1.0 in.)
Width
Depth
Diameter
6.7.1.1 Diameter requiring no more than 71 N (16 lbf.) force
Diameter: minimum 6.3 mm (0.25 in.)
6.7.1.2 Diameter requiring no more than 89 N (20 lbf.) force
Diameter: minimum 13 mm (0.50 in.)
6.7.1.3 Diameter requiring no more than 200 N (40 lbf.) force
Diameter: minimum 19 mm (0.75 in.)
6.7.2 Enclosed handle, three fingers
Width (W): minimum 90 mm (3.5 in.)
Depth (D): minimum 38 mm (1.5 in.)
Diameter (d): minimum 6.3 mm (0.25 in.)
Force: maximum 71 N (16 lbf)
Width
Depth
Diameter

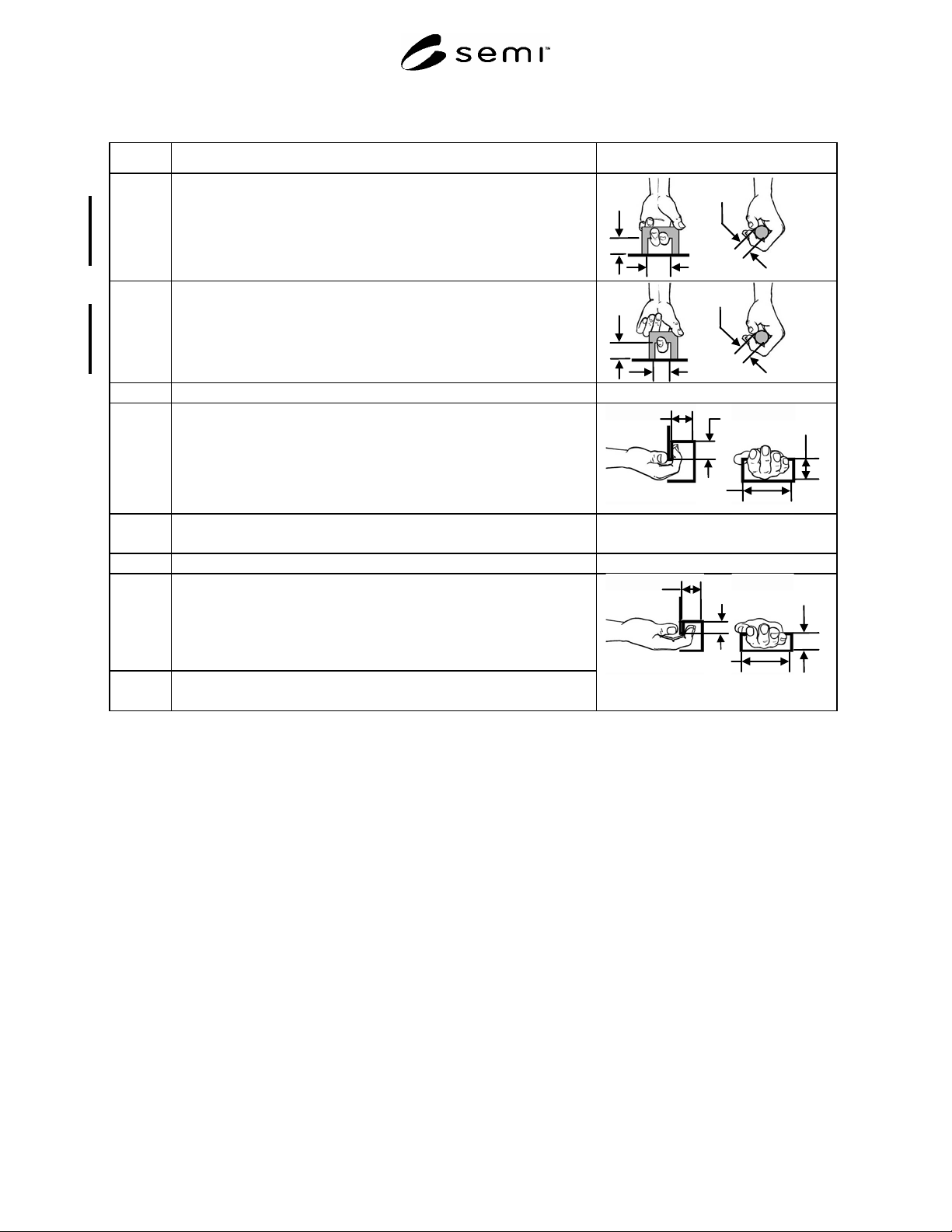

SEMI S8-0705 © SEMI 1995, 2005 47
Section 6: Handle Design
Section Indicator Figure
6.7.3 Enclosed handle, two fingers
Width (W): minimum 60 mm (2.5 in.)
Depth (D): minimum 38 mm (1.5 in.)
Diameter (d): minimum 6.3 mm (0.25 in.)
Force maximum: 51 N (11.5 lbf)
Width
Depth
Diameter
6.7.4 Enclosed handle, one finger
Width (W): minimum 38 mm (1.5 in.)
Depth (D): minimum 38 mm (1.5 in.)
Diameter (d): minimum 3.2 mm (0.13 in.)
Force: maximum 27 N (6 lbf)
Width
Depth
Diameter
6.8
Hook Grasp Handle
6.8.1
Hook Grasp Handle (4 fingers)
Opening length (L): minimum 90 mm (3.5 in.)
Opening width (W): minimum 38 mm (1.5 in.)
Depth (d): minimum 50 mm (2.0 in.)
Lip length (l): minimum 50 mm (2.0 in.)
Opening
Width
Opening Length
Lip
Length
Opening
Depth
6.8.2
Hook grasp handle pull force (four fingers)
Pull force: maximum 80 N (18.0 lbf)
6.9
Finger Pull Handle
6.9.1
Finger pull Handle (4 fingers)
Opening length (L): minimum 90 mm (3.5 in.)
Opening width (W): minimum 25 mm (1.0 in.)
Depth (d): minimum 19mm (0.75 in.)
Lip length (l): minimum 19mm (0.75 in.)
6.9.2
Finger pull handles pull force (four fingers)
Pull force: maximum 9.8 N (2.2 lbf)
Opening
Width
Opening Length
Lip
Length
Opening
Depth
