SEMI E132.1-0305 © SEMI 2005 44
Argument Name Format XML Element or Attribute XML Name/Type
clientId Text Element ID: xsd:string
error Structured data, of type
Error, defined in the
SEMI Specification for
Semicondoctor
Common Components
Element Error: ErrorType
8.4.7.2 WSDL Message(s)
8.4.7.2.1 Three messages are defined for this operation corresponding to the SEMI E132 Header, Request and
Response messages. See the message definitions for “E132HashHeaderMessage”, “SessionPingRequestMessage”,
and “SessionPingResponseMessage” in E132-1-V0305-SessionClient-PortType.wsdl. Key information is shown for
convenience in Table 85.
Table 85 SessionPing Messages
Message Name
Schema
Element Name
E132HashHeaderMessage auth:E132HashHeader
SessionPingRequestMessage auth:SessionPingRequest
SessionPingResponseMessage auth:SessionPingResponse
8.4.7.3 WSDL Operation
8.4.7.3.1 See the portType operation definition for “SessionPing” in E132-1-V0305-SessionClient-PortType.wsdl.
Key information is shown for convenience in Table 86.
Table 86 SessionPing PortType Operation
Input Message Name
SessionPingRequestMessage
Output Message Name SessionPingResponseMessage
8.4.7.4 WSDL Operation Binding
8.4.7.4.1 See the operation binding for “SessionPing” in E132-1-V0305-SessionClient-Binding.wsdl. Key
information is shown for convenience in Table 87.
Table 87 SessionPing Operation Binding
SOAPAction
urn:semi-org:ws.E132-1.V0305.sessClient-binding:SessionPing
Input Headers (WSDL Message, Required) E132HashHeaderMessage, required
Output Headers (WSDL Message, Required) E132HashHeaderMessage, required
8.4.8 SessionFrozen Operation
8.4.8.1 XML Schema Types
8.4.8.1.1 This section describes the XML mappings for the classes defined in SEMI E132 for the SessionFrozen
operation. See GetDefinedPrivileges operation regarding schema conventions used.
8.4.8.1.2 SessionFrozen Notification
8.4.8.1.2.1 The SessionFrozen notification is mapped to the XML Schema element SessionFrozenNotification of
type SessionFrozenNotificationType. There are no input parameters for this notification, so the schema element has
no content.
SEMI E132.1-0305 © SEMI 2005 45

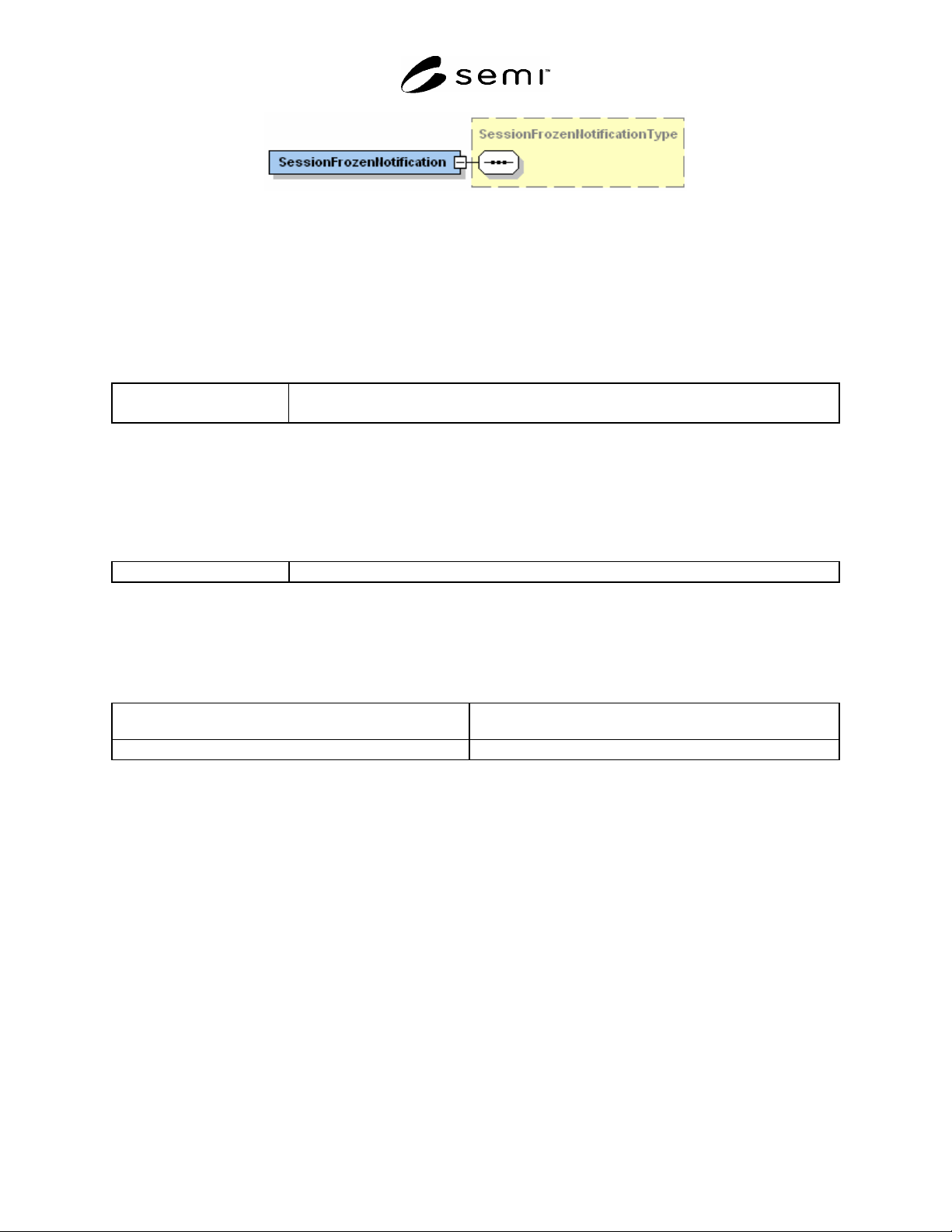

Figure 43
SessionFrozenNotification XML Schema Element
8.4.8.2 WSDL Message(s)
8.4.8.2.1 Two messages are defined for this operation corresponding to the SEMI E132 Hash Header, and the
Notification message. See message definitions for “E132HashHeaderMessage” and “SessionFrozenInMessage” in
E132-1-V0305-SessionClient-PortType.wsdl. Key information is shown for convenience in Table 88.
Table 88 SessionFrozen Messages
Message Name
Schema
Element Name
E132HashHeaderMessage auth:E132HashHeader
SessionFrozenInMessage auth:SessionFrozenNotification
8.4.8.3 WSDL Operation
8.4.8.3.1 See the portType operation definition for “SessionFrozen” in E132-1-V0305-SessionClient-
PortType.wsdl. Key information is shown for convenience in Table 89. There is no output message defined for
notifications.
Table 89 SessionFrozen PortType Operation
Input Message Name
SessionFrozenInMessage
8.4.8.4 WSDL Operation Binding
8.4.8.4.1 See the operation binding for “SessionFrozen” in E132-1-V0305-SessionClient-Binding.wsdl. Key
information is shown for convenience in Table 90.
Table 90 SessionFrozen Operation Binding
SOAPAction
urn:semi-org:ws.E132-1.V0305.sessClient-
binding:SessionFrozen
Input Headers (WSDL Message, Required) E132HashHeaderMessage, required
8.4.9 SessionClosed Operation
8.4.9.1 XML Schema Types
8.4.9.1.1 This section describes the XML mappings for the classes defined in SEMI E132 for the SessionClosed
operation. See GetDefinedPrivileges operation regarding schema conventions used. This operation is just a
notification only so there is no response defined.
8.4.9.1.2 SessionClosed Notification
8.4.9.1.2.1 The SessionClosed notification is mapped to the XML Schema element SessionClosedNotification of
type SessionClosedNotificationType. Table 91 shows how the input parameters are mapped to XML.
SEMI E132.1-0305 © SEMI 2005 46
Table 91 Translation Table for SessionClosed Input Parameters
Argument Name Format XML Element or Attribute XML Name/Type
sessionId Text Element SessionID: xsd:string

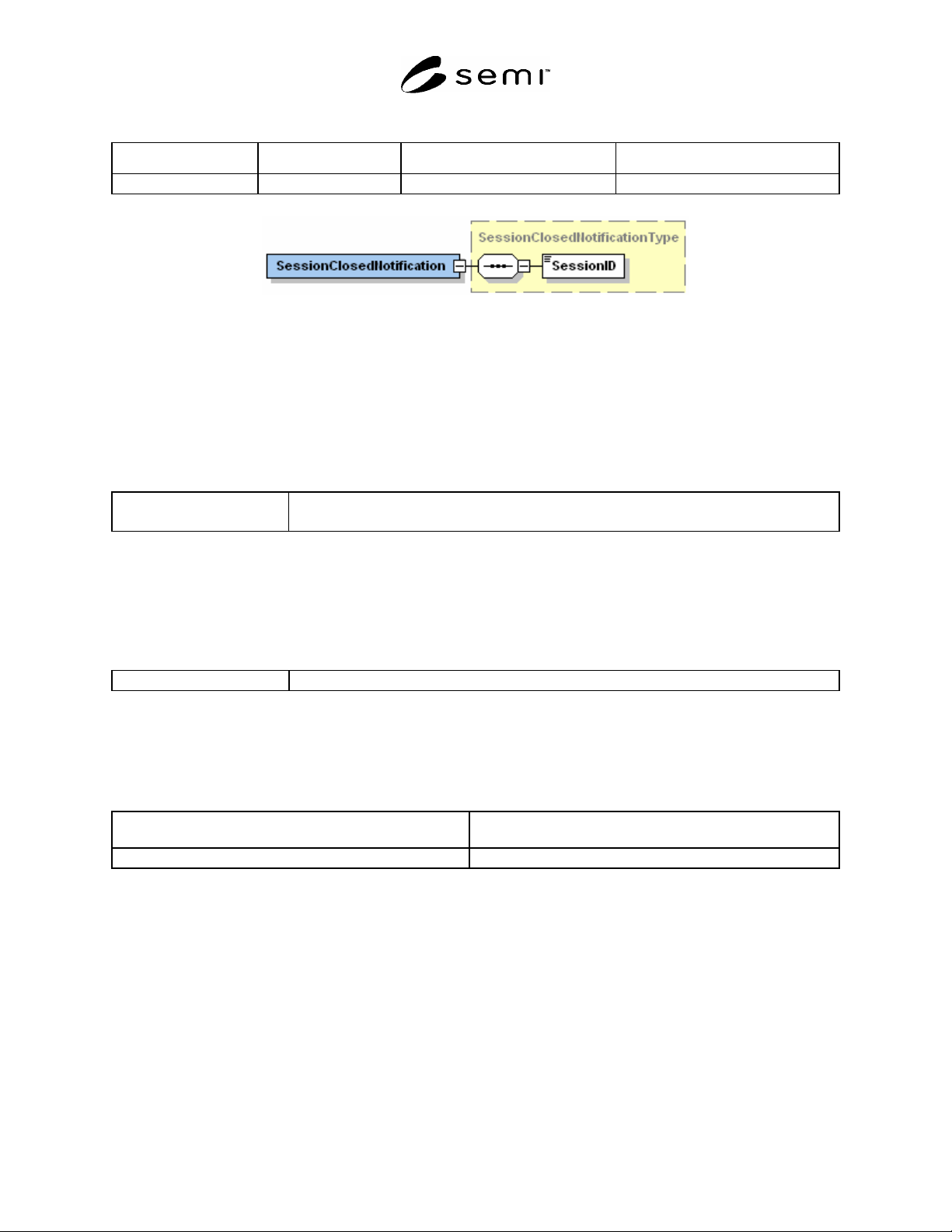

Figure 44
SessionClosedNotification XML Schema Element
8.4.9.2 WSDL Message(s)
8.4.9.2.1 Two messages are defined for this operation corresponding to the SEMI E132 Hash Header, and the
Notification message. See the message definitions for “E132HashHeaderMessage”, and “SessionClosedInMessage”
in E132-1-V0305-SessionClient-PortType.wsdl. Key information is shown for convenience in Table 92.
Table 92 SessionClosed Messages
Message Name
Schema
Element Name
E132HashHeaderMessage auth:E132HashHeader
SessionClosedInMessage auth:SessionClosedNotification
8.4.9.3 WSDL Operation
8.4.9.3.1 See the portType operation definition for “SessionClosed” in E132-1-V0305-SessionClient-
PortType.wsdl. Key information is shown for convenience in Table 93. There is no output message defined for
notifications.
Table 93 SessionClosed PortType Operation
Input Message Name
SessionClosedInMessage
8.4.9.4 WSDL Operation Binding
8.4.9.4.1 See the operation binding for “SessionClosed” in E132-1-V0305-SessionClient-Binding.wsdl. Key
information is shown for convenience in Table 94.
Table 94 SessionClosed Operation Binding
SOAPAction
urn:semi-org:ws.E132-1.V0305.sessClient-
binding:SessionClosed
Input Headers (WSDL Message, Required) E132HashHeaderMessage, required
